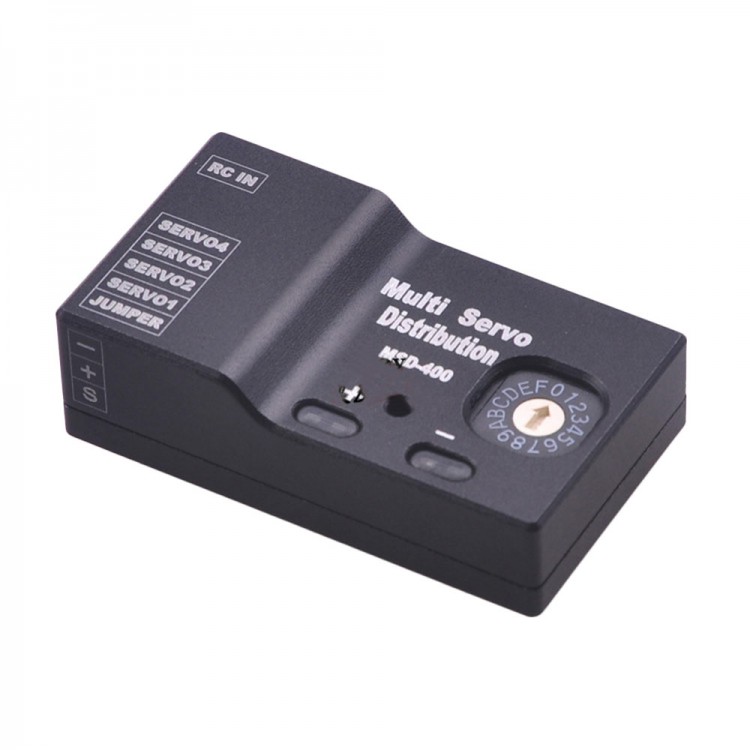

Multi Servo Distribution Distributor DC4.8V-10V for 4 Servos Multicopter UAV Drone
Description:
The servo distributor can drive 4 servos simultaneously with only 1 servo signal. It can separately adjust the directions, midpoints, trip of 4 servos.
Specifications:
- Voltage: DC4.8V-10V
- Current:≤50 mA
- PWM Singal range: 0.8ms-2.2ms
- Weight : 17g
Adjusting Method:
First turn the code switch to the corresponding code, then press “+”or “-”to the parameters you need. Do remember to turn the switch to “0”after finishing parameter adjusting.
Package included:
- 1 x Multi Servo Distribution
