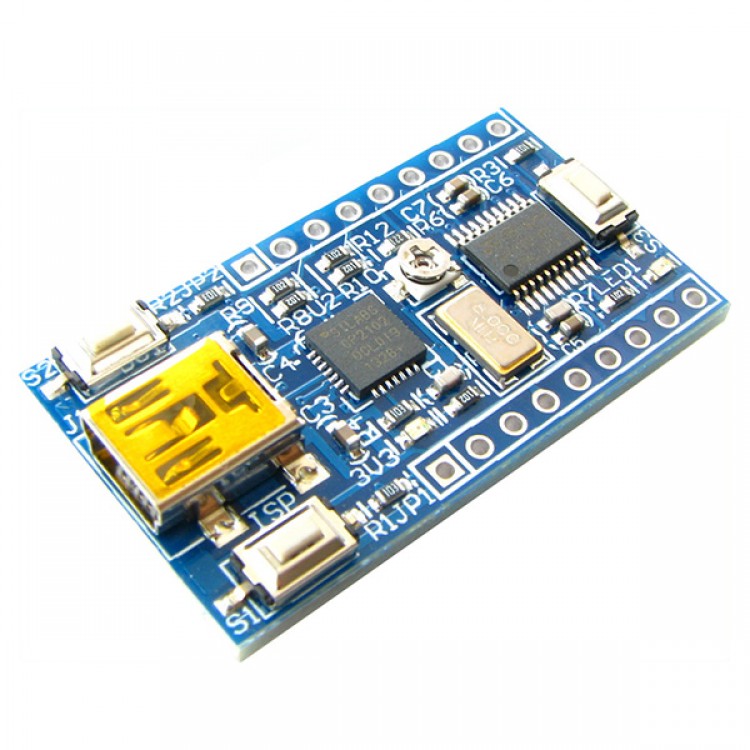

STM32F030 ARM Cortex-m0 Development Board USB tp Serial support ISP Download

Key Features
- Core: ARM®32-bit Cortex™-M0 CPU, frequency up to 48 MHz Memories
-16 to 64 Kbytes of Flash memory
- 4 to 8 Kbytes of SRAM with HW parity checking
- CRC calculation unit
- Reset and power management
- Voltage range: 2.4 V to 3.6 V
- Power-on/Power down reset (POR/PDR)
- Low power modes: Sleep, Stop, Standby
- Clock management
- 4 to 32 MHz crystal oscillator
- 32 kHz oscillator for RTC with calibration
- Internal 8 MHz RC with x6 PLL option
- Internal 40 kHz RC oscillator
- Up to 55 fast I/Os
- All mappable on external interrupt vectors
- Up to 36 I/Os with 5 V tolerant capability
- 5-channel DMA controller
- 1 x 12-bit, 1.0 μs ADC (up to 16 channels)
- Conversion range: 0 to 3.6 V
- Separate analog supply from 2.4 up to 3.6 V
- Up to 10 timers
    One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
    One 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
    One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
    Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
    One 16-bit timer with 1 IC/OC
    One 16-bit basic timer
- Independent and system watchdog timers
- SysTick timer: 24-bit downcounter
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Communication interfaces
    Up to two I2C interfaces: one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink
    Up to two USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
    Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame
- Serial wire debug (SWD)

Board function:
- USB to serial (CP2102).can download the program via a serial port
- A button
- A LED
- All I/O interface with 2.54 mm distance between double row needle leads out


Package list:
- STM32F030 development board x1
- MiniUSB x 1
- Cd x1
