Tiger T-Motor Navigator Series High End MN1806 2300KV 2-3S Brushless Motor for Quadcopter Multicopters

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.77
  • Price in reward points: 258 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.25 $24.74 $23.97 $22.94 Contact US
Quantity:

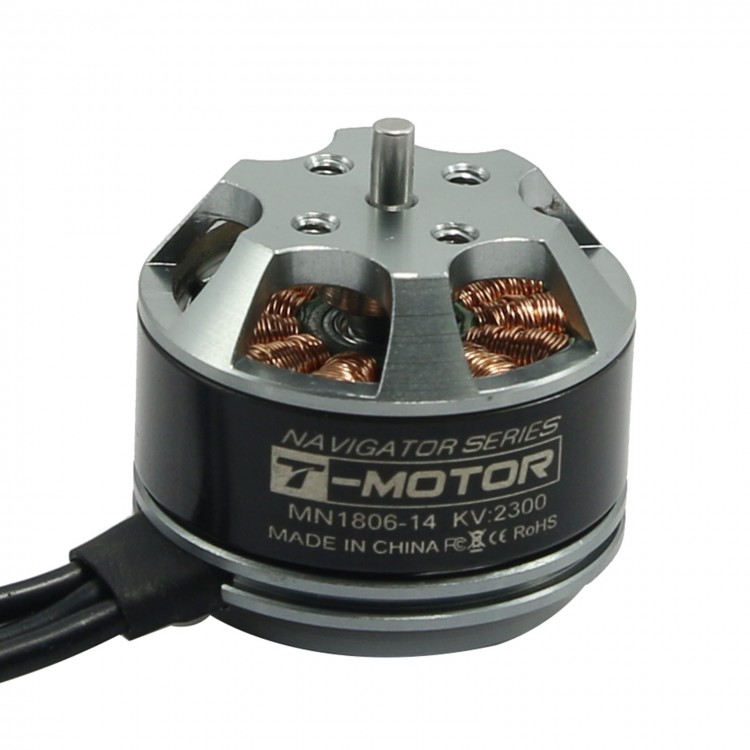

Tiger T-Motor Navigator Series High End MN1806 2300KV 2-3S Brushless Motor for Quadcopter Multicopters








Specifications:
KV..............................................................................................................2300
Configu ration....................................................................................12N14P
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................2mm

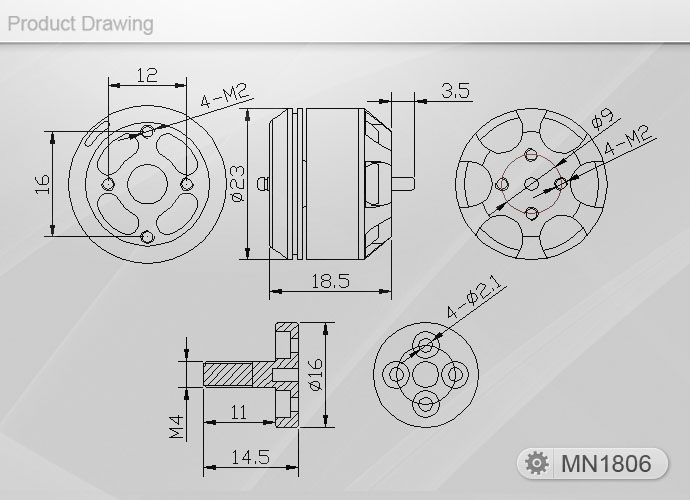

Motor Dimensions(Dia.*Len)...............................................Φ23×18.5mm
Weight (g)...................................................................................................18g
ldle current(10)@10v(A)..........................................................................0.2A
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)180S............................................................12A
Max Continuous Power(W)180S...........................................................96W
Max. efficiency current.................................................................(2-7A)>85%
internal resistance..............................................................................325mΩ
