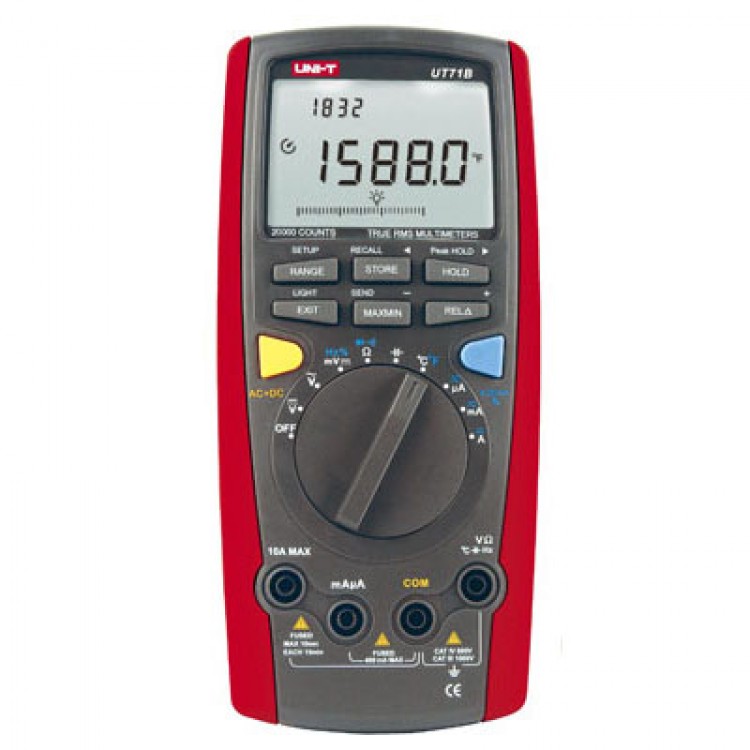

SPECIFICATIONS
| Basic Functions | Range | Best Accuracy |
|---|---|---|
| DC Voltage | 200mV/2V/20V/200V/1000V |  (0.1%+5) |
| AC Voltage | 2V/20V/200V/1000V | (0.8%+40) |
| AC Bandwidth | 100KHz |  |
| DC Current | 200µA/2000µA/20A/200mA/10A | (1%+20) |
| AC Current | 200µA/2000µA/20A/200mA/10A | (0.5%+15) |
| Resistance | 200W/2kW/20kW/200kW/2MW/20MW | (1.5%+20) |
| Capacitance | 20nF/200nF/2µF/20µF/200µF/2mF/20mF | (0.1%+20) |
| Temperature(OC) | -40OC~1000OC | (0.1%+30) |
| Temperature(OF) | -40OF~1832OF | (0.1%+50) |
| Frequency | 20Hz/200Hz/2kHz/20kHz /200KHz/2MHz/20MHz/200MHz | (0.1%+15) |
| Duty Cycle | 10%~90% | (1%+30) |
| 4~20mALoop | 0%~100% | (1%+50) |
| Special Functions | ||
| Fused 10A Range | | |
| Auto Ranging | | |
| Current Measurement Alarm | | |
| Function Set Up | | |
| Votage & Current : AC + DC Measurement | | |
| Data Logging | 100 | |
| Data Recall | | |
| Diode | | |
| Continuity Buzzer | | |
| True RMS | | |
| Peak Hold | | |
| Max/Min Mode | | |
| Relative Mode | | |
| Data Hold | | |
| USB | | |
| Double Display Backlight | | |
| Full lcon Disply | | |
| Sleep Mode | | |
| Low Battery Display | | |
| Input Impedance for | DC 200mV : Around 2.5GW All Other Ranges : 10MW | |
| Max. Display | 20000 | |
| Analogue Bar Graph | |
GENERAL CHARACTERISTICS
| Power | 9V Battery (6F22) |
| LCD Size | 73 x 50 mm |
| Product Colour | Red and Grey |
| Product Net Weight | 384g |
| Product Size | 200 x 93 x 40mm |
| Standard Accessories | Test Lead, Battery, English Manual, Point Contact Temperature Probe, Alligator Clip, Test Clip, USB Interface Cable, Software, Carrying Bag |
| Standard Individual Packing | Gift Box |
| Standard Quantity Per Carton | 20 pcs |
| Standard Carton Measurement | 542 x 376 x 388mm |
| Standard Carton Gross Weight | 19kg |
