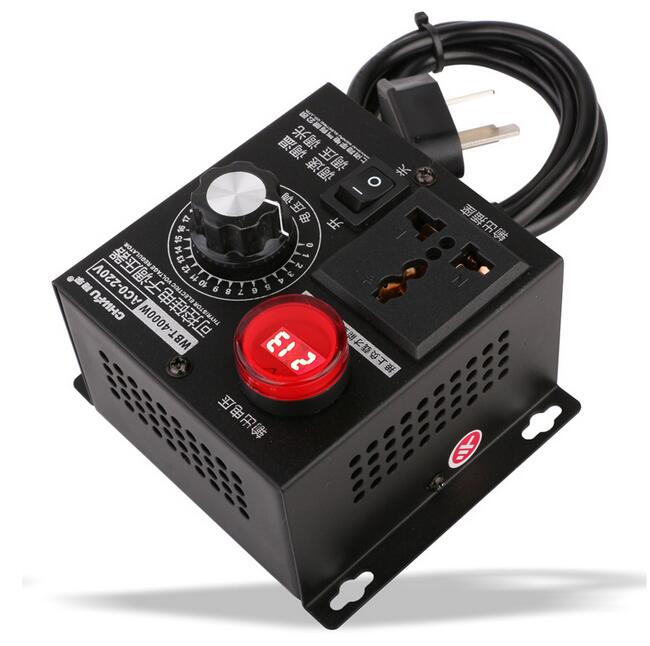

WBT-4000W Thyristor Electircal Voltage Regulator Single Phase AC220V 4KW for Fan Drill

WBT-4000W Thyristor Electircal Voltage Regulator Single Phase AC220V 4KW for Fan Drill

Product Description:
- Novel design,speed regulation, temperature regulation, voltage regulation, dimming function, independent switch control, voltage display, easy to use, safe and assured.
- Power Transfer,easy to solve the voltage problems.

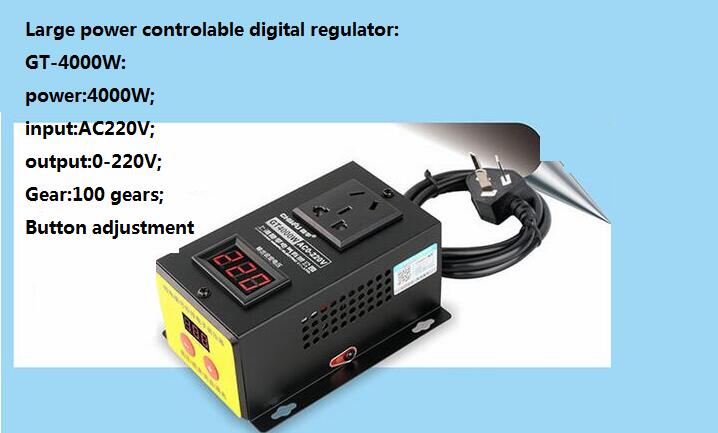

- Large power controlable digital regulator:GT-4000W:power:4000W;input:AC220V;output:0-220V;Gear:100 gears;Button adjustment

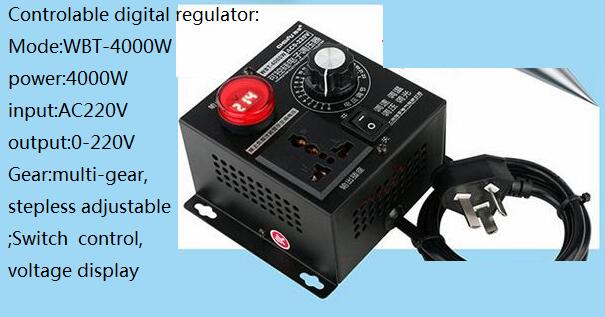

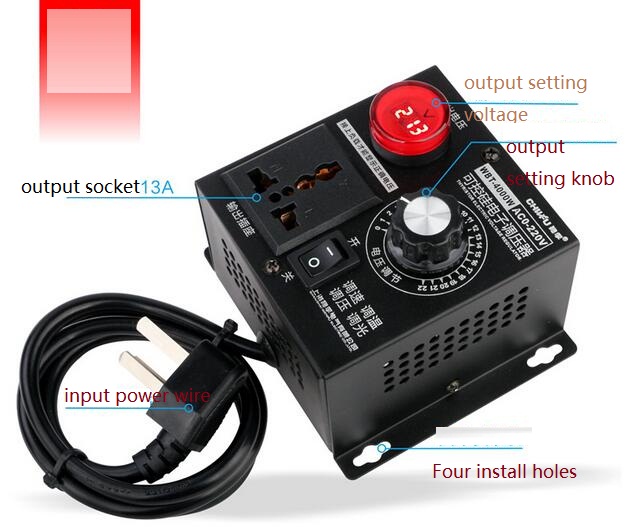

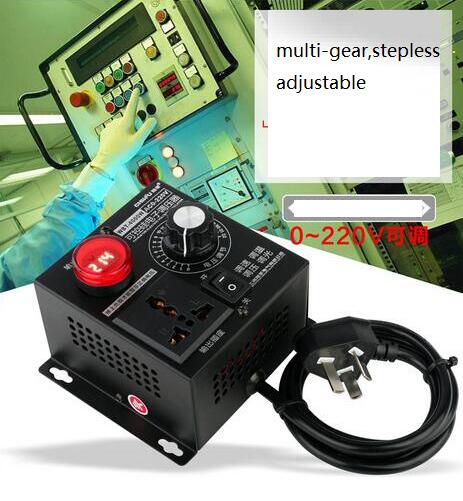

Controlable digital regulator:Mode:WBT-4000W:power:4000W;input:AC220V;output:0-220V;Gear:multi-gear,stepless adjustable;Switch control,voltage display

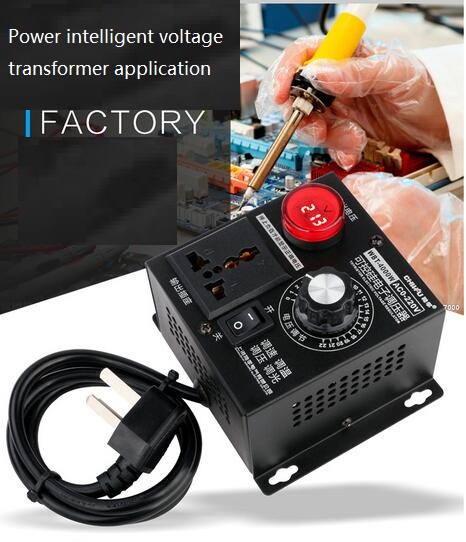

- Power intelligent voltage transformer application

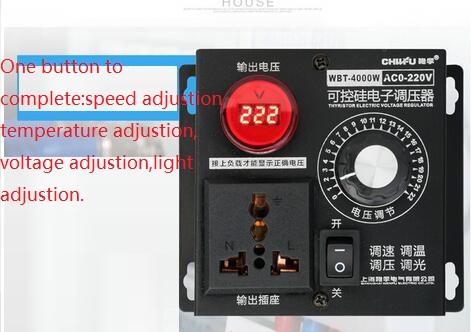

- One button to complete:speed adjustion,temperature adjustion,voltage adjustion,light adjustion.
- Widely application:household electrical appliances,industrial appliances,scientific experiment factories,schools,such as electrical equipment.
- Attention:You must connect to the load before adjusting voltage (display the correct voltage).
- The regulator can control the motor rotation speed maintains 0%-100% with stepless changes.

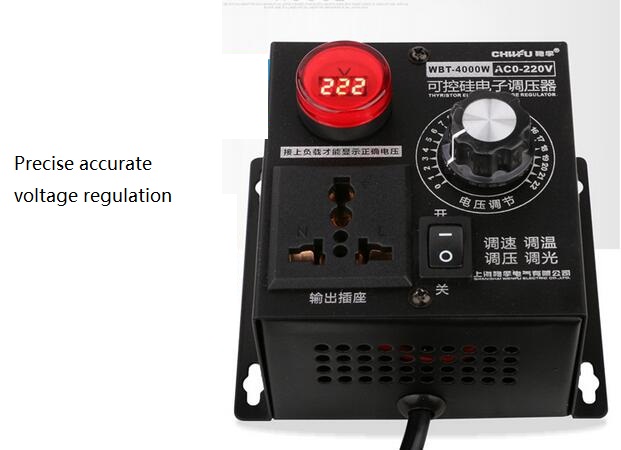

- Precise accurate voltage regulation
- Input controls switch,cut off input power freely.
- Safe flame retardant,the metal shell resitance pressure,in high temperature non-deformation,none-combustion

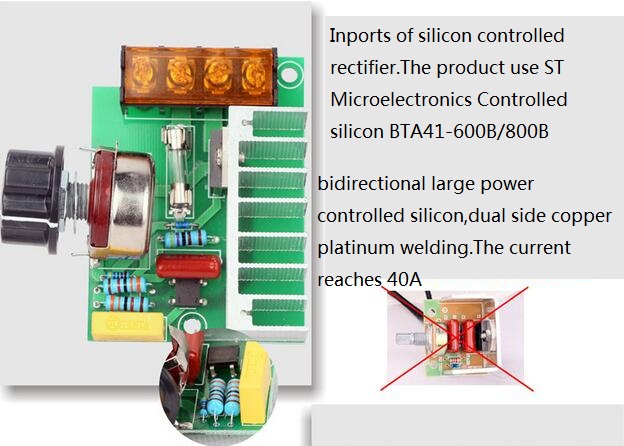

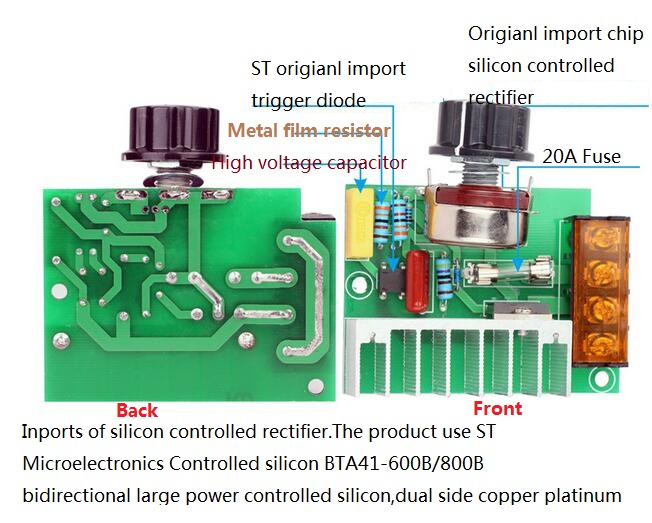

- Inports of silicon controlled rectifier.The product use ST Microelectronics Controlled silicon BTA41-600B/800B
bidirectional large power controlled silicon,dual side copper platinum welding.The current reaches 40A

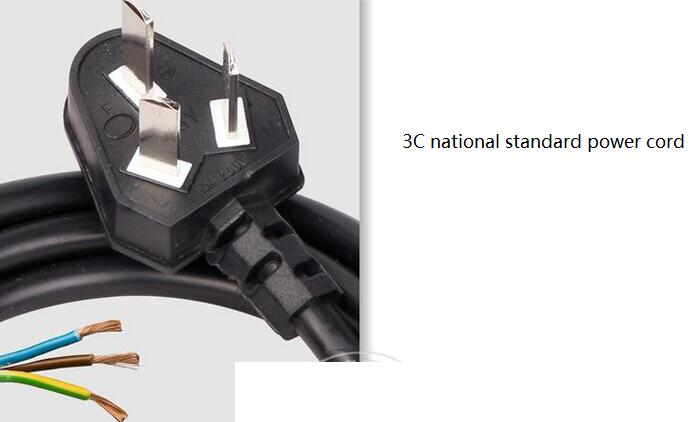

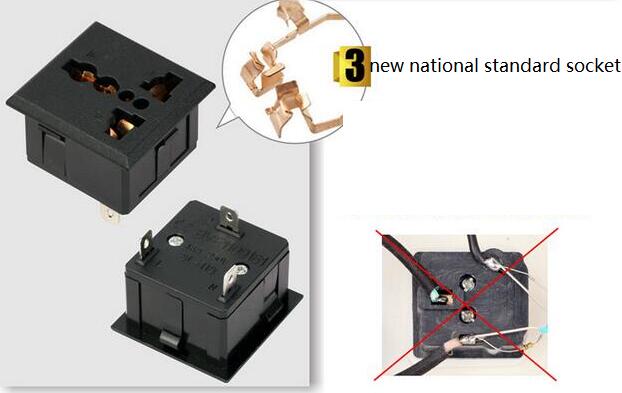

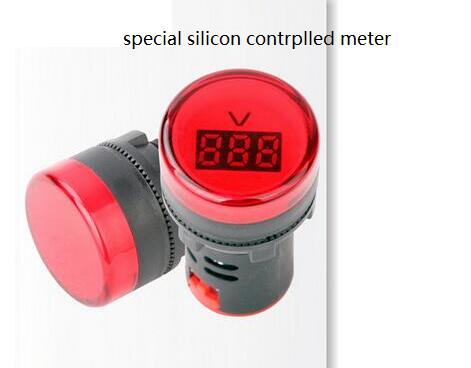

- Flame retardant insulation shell ,new national standard socket,independent switch control,3C national standard power cord,hook design,special silicon contrplled meter

Product Specification:
- Product Size:10cmX9cmX6cm (LxWxH)
- Install Size:10.4cmX7.5cmX4cm
- Mode:WBT-4000W (Hardcover)
- Input voltage:AC 220V
- Output voltage:0~220V adjudtable (If the output voltage is too low,there will not display.)
- Ultimate power:4000W (adapt to 2000~3000W)
- Voltage regulation range:0~220V stepless adjustable (with load) The voltage reduces to 0V;the boost begins in 20V.
- Rated current:18A
- Product Features:Zero lag, zero delay,peak,voltage absorbtion circuit,effective protection,large power,Thyristor Anti surge, anti spike,RC absoration multi-protection
- Controlled silicon mode:ST Microelectionics; Controlled silicon BTA41-600B/800B
- Operative norm:GB14536.1-2008
- Gear:100 gears

Note:
- If the tested output voltage and the input voltage are the same under no-load occasion,you need to connect more than 20W load.Then you can test the output voltage.
- Input AC,the output is still AC,not DC.
- The above 4000W refers:The ultimate power on the resistive load.Inductive load is 1/3 resistive load.Resistive load means electric lamp,heater,ect.Inductive load is series motor.Please do not use it on the electrical intelligent products. Metal shell appliances,please connect to the safety grounding.

Package List:
- 1 x WBT-4000W Thyristor Electircal Voltage Regulato
- 1 x standard power cord
