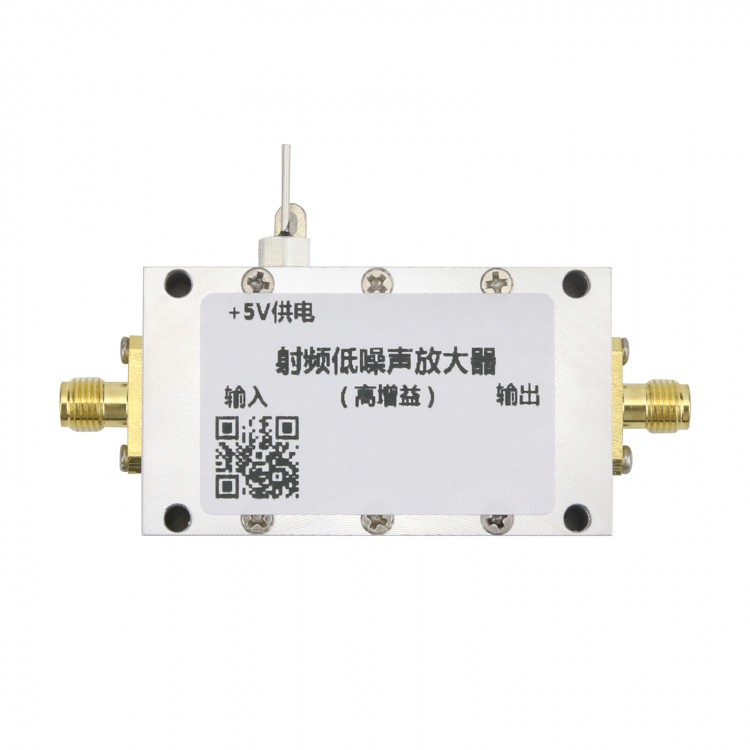

0.01-4G RF Low Noise Amplifier LNA Amplifier 40DB +5V Powered For UHF VHF GPS Spectrum Analyzer
Description:
Low-noise amplifiers are generally used as high-frequency or intermediate-frequency preamplifiers for various types of radio receivers, as well as amplifier circuits for high-sensitivity electronic detection equipment. In the case of amplifying weak signals, the noise of the amplifier itself may interfere with the signal very seriously. Therefore, it is hoped to reduce this noise to improve the signal-to-noise ratio of the output. This module uses ultra-low noise imported LNA die, CNC shell packaging, has excellent electromagnetic shielding performance, and can work in a wideband within the range of 0.01-4G. It has a high gain of 40dB and is widely used in the front end of broadband receiver systems. Add to the input end of the spectrum analyzer to improve sensitivity.
Parameters:
- Working voltage: +5V single power supply
- Working current: 90mA (low power consumption)
- Working frequency: 0.01-4GHz

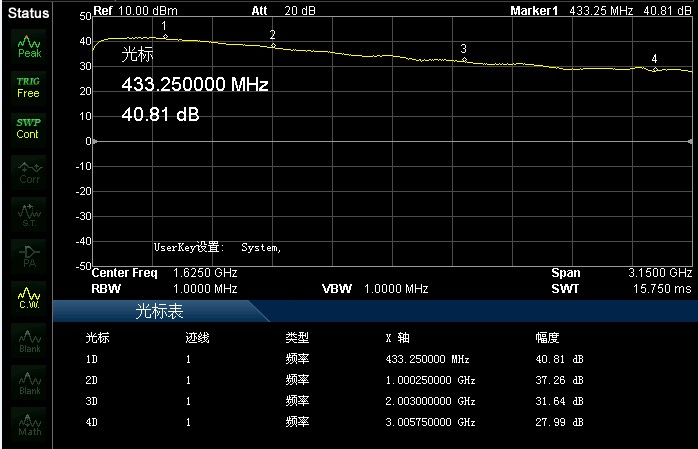

- Gain: 37dB at 1GHz
- P1dB output power: 100mW (20dBm)
- Noise figure: 0.6dB
- Input and output interface: SMA female

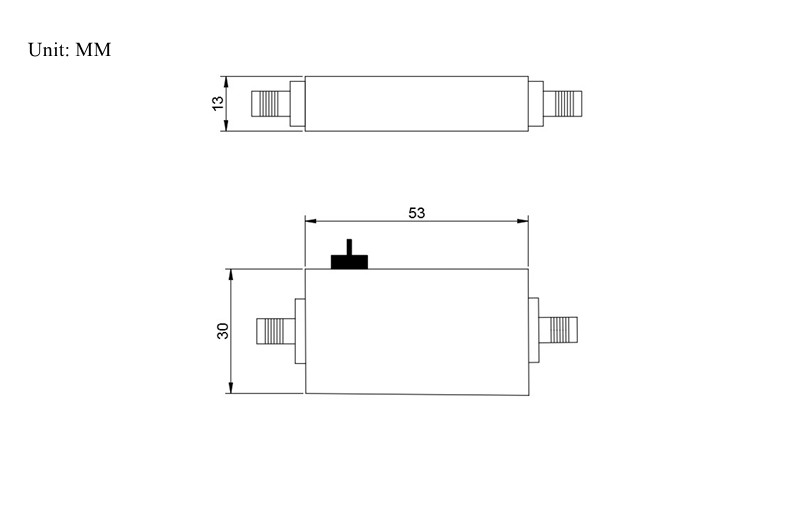

- Module size: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x LNA Amplifier
With a high gain of 28dB in the full frequency range, it can be applied to the small signal amplification of VHF, UHF, GPS, 2.4G and other receiving systems.
