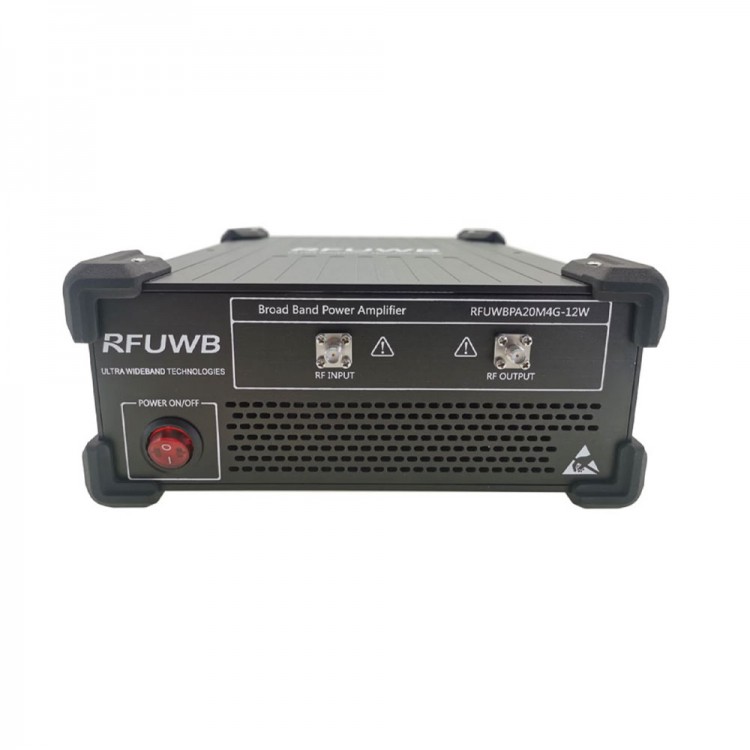

0.02-4GHz 12W Wideband RF Power Amplifier Class AB UWB Amplifier 50ohms with SMA Female Connector
Features:
- Gallium Nitride ultra wideband design, covering the entire frequency range of 20-4000MIz.
- High power design, 12W nominal power.
- AB class amplifier.
- Built-in protective circuit.
- High reliability design, capable of operating at full power for extended periods of time.
- 50ohm input/output.
Applications:
- Testing equipment
- Communication system
Specification:
- Working frequency: 0.02 - 4GHz
- RF output power (continuous wave): 42dBm (typ.)

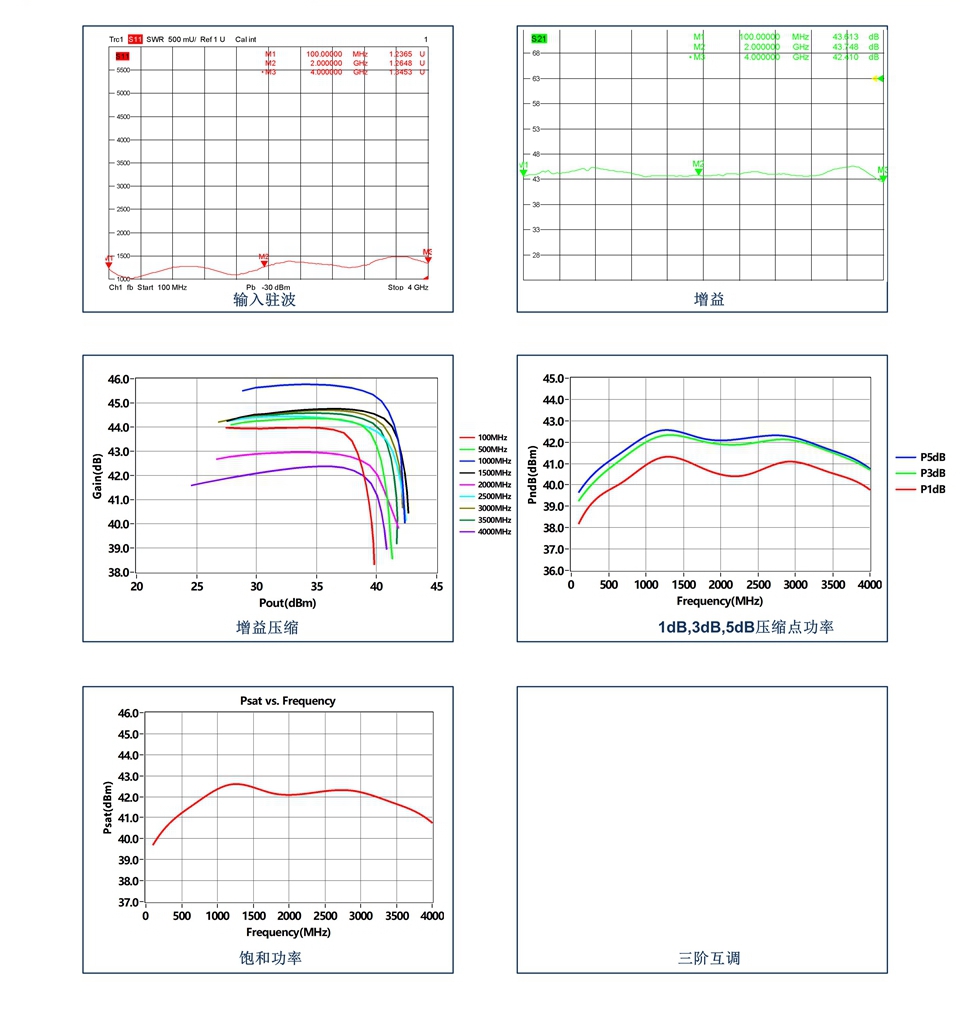

- Gain: 40dB (typ.)
- Gain flatness: ±3dB
- Gain fluctuation (-30℃ to +65℃): ±4dB
- Input standing wave: 2 : 1

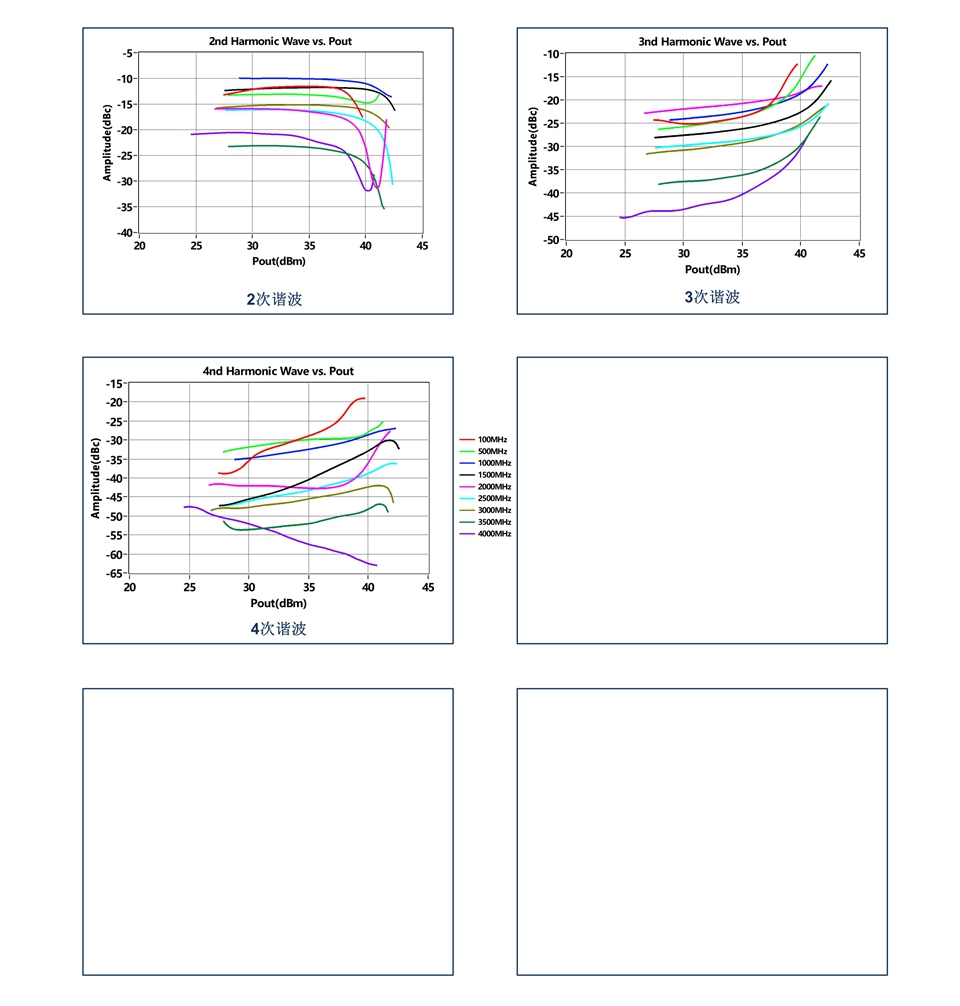

- Harmonic: -10dBc
- Third order intermodulation, dual tone @ 27dBm/Tone, 1MHz interval: -20dBc
- Stray: -60dBc (max.)
- Isolation: -45dB
- Power supply voltage: 220V AC
- Power consumption: 30W (typ.), 50W (max.)
- Maximum input power for burn resistance: +5dBm (max.)
- Working temperature: -30℃ to +60℃
- Storage temperature: -50℃ to +105℃

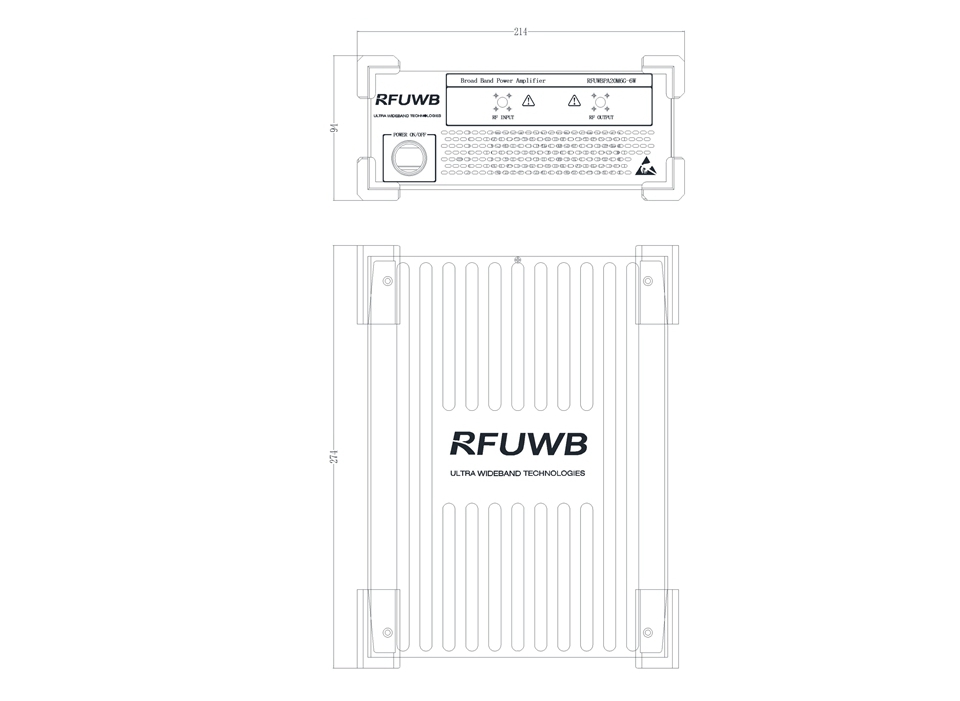

- Product size: 274 x 214 x 96mm
- RF connector: SMA female connector
- Heat dissipation: built-in radiator
Package Included:
- 1 x RF Power Amplifier
