| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $179.17 | $175.52 | $170.03 | $162.72 | Contact US |
10-1000MHz 8W Wideband RF Power Amplifier Class AB UWB Amplifier 50ohms with SMA Female Connector
Features:
- LDMOS ultra wideband design, covering the entire frequency range of 10-1000MIz.
- High power design, 8W nominal power.
- AB class amplifier.
- High reliability design, capable of operating at full power for extended periods of time.
- 50ohm input/output.
Applications:
- Testing equipment
- Communication system

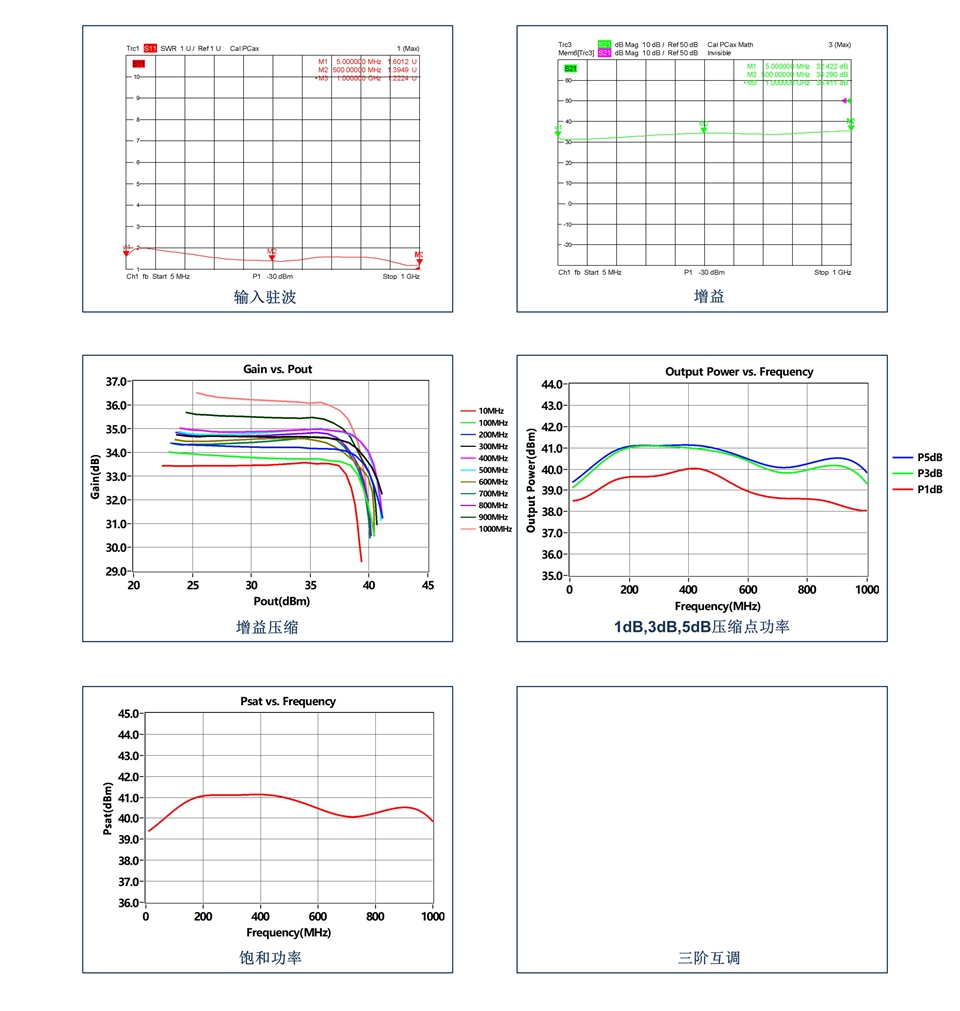

Specification:
- Working frequency: 0.01 - 1GHz
- RF output power: 40dBm (typ.)
- Gain: 35dB (typ.)
- Gain flatness: ±2dB
- Gain fluctuation (-30℃ to +65℃): ±3dB
- Input standing wave: 1.5 : 1
- Harmonic: -10dBc
- Third order intermodulation, dual tone @ 30dBm/Tone, 1MHz interval: -20dBc
- Stray: -60dBc (max.)
- Isolation: -45dB
- Power supply voltage: 28 - 30V
- Power supply current: 0.25 - 2A
- Maximum input power for burn resistance: +10dBm (max.)
- Working temperature: -30℃ to +60℃
- Storage temperature: -50℃ to +105℃

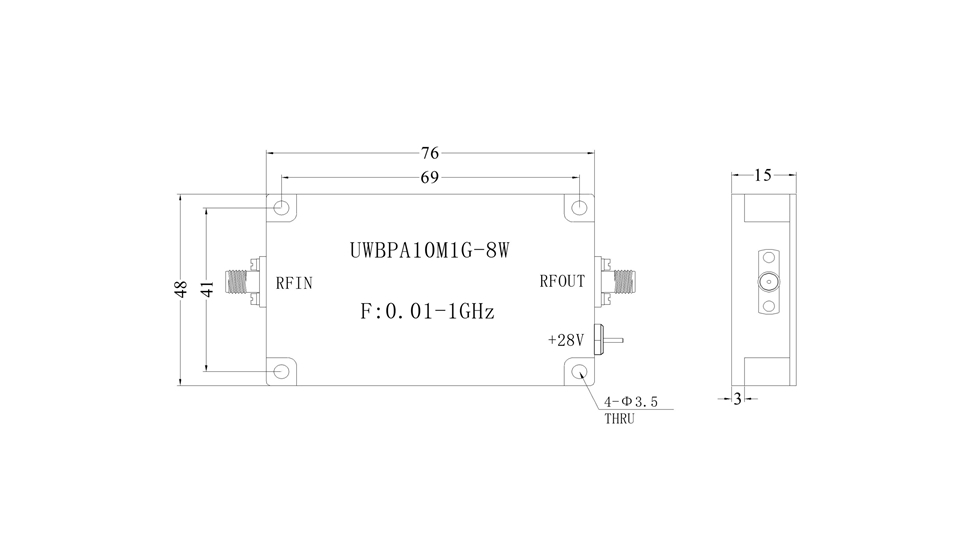

- Product size: 76 x 48 x 15mm
- RF connector: SMA female connector
- Heat dissipation: need external radiator (not included)
Package Included:
- 1 x RF Power Amplifier
