0.1-9999L Battery-Powered Digital Flow Meter Display Shows Flow Rate Temperature and Total Flow

0.1-9999L Battery-Powered Digital Flow Meter Display Shows Flow Rate Temperature and Total Flow

Attention:
* Water pressure is required to use this product. The pressure must be at least 0.2 kg or higher. It cannot be used in a no-pressure environment!
* This low-power display screen can only be used with our company's custom low-power flow meters to ensure long battery life. We do not guarantee compatibility or quality if it is used with flow meters from other manufacturers. Since there are many types of flow meters, please confirm with customer service before purchasing to ensure the correct model is selected. This display can show water flow rate, instantaneous flow rate, temperature, and total flow. However, because the frequency of each flow meter size is different, you will need to adjust the K-factor constant on the display according to the specific flow meter being used to ensure accurate flow readings.

Features:

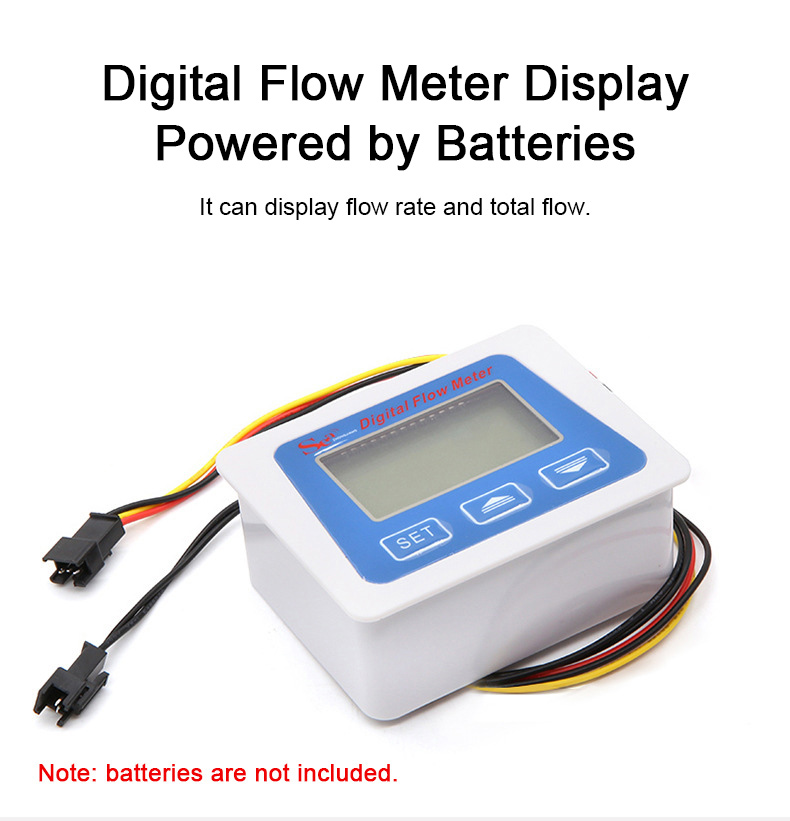

Digital Flow Meter Display
* It can display total flow, flow rate and temperature.

Exquisite Craftsmanship & Premium Materials
* Compact size
* Digital display screen
* Ultra-thin body

Wide Application Range
* Suitable for use in the beverage industry, chemical wastewater treatment, agricultural irrigation equipment, and more.

Product Parameters:
* Accuracy Level: 3%
* Nominal Diameter: DN15
* Operating Temperature: 0-80°C

Basic Parameters:
* Measurement Range: 0.1-9999L
* Voltage: DC 5V
* Temperature Display Range: -99°C to 999°C
* Number of Buttons: Three buttons

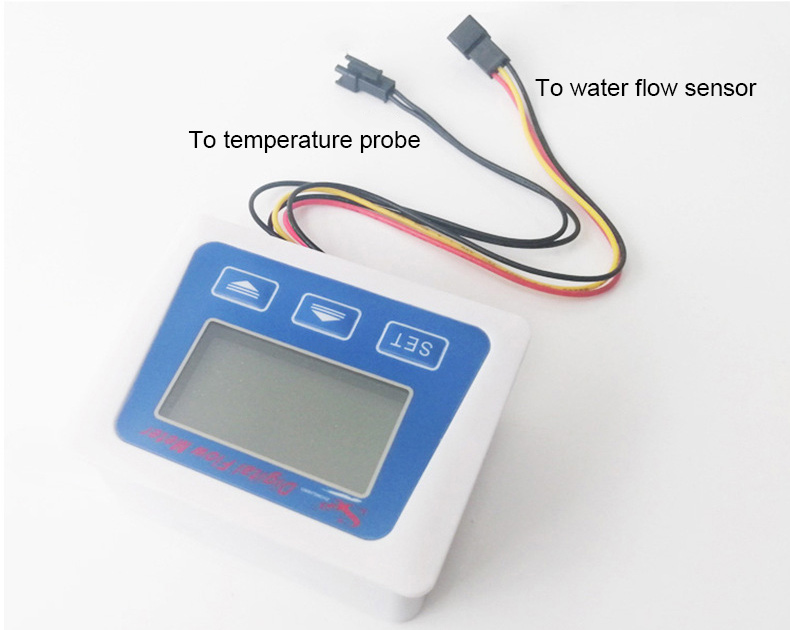

* Interface Type: SM-3P and SM-2P

Package Included:
* 1 x Flow Meter Display

Packaging Details:
* Weight: 0.32kg

Note:

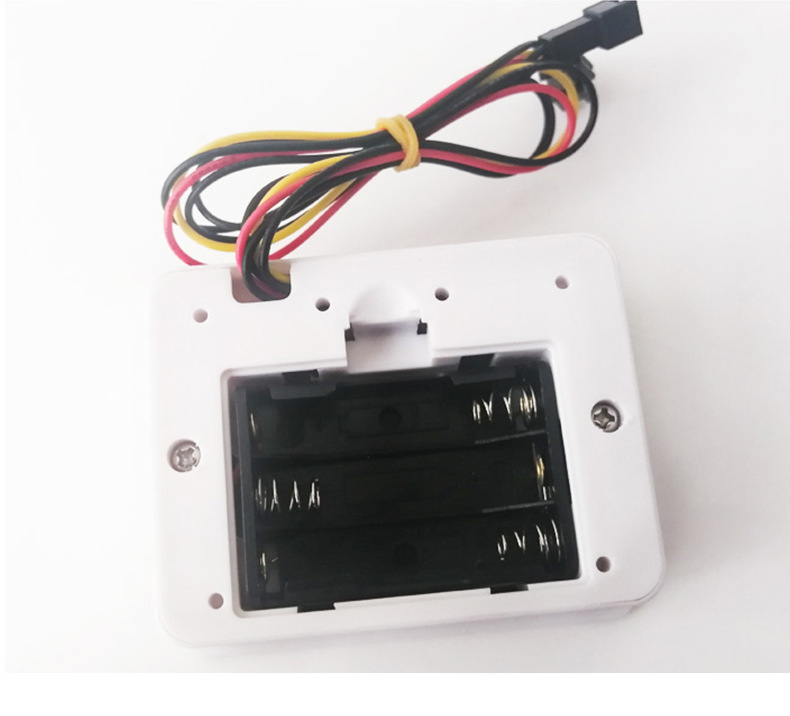

* Three AAA batteries are not included.

1. Button Definitions
The buttons, from left to right, are:
SET (Settings button)
"+" (Increase button)
"-" (Decrease button)

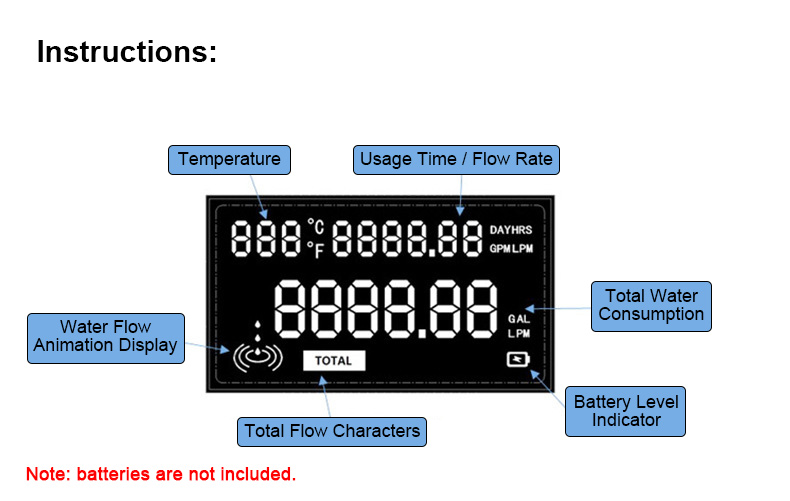

2. Display Description:
2.1. Temperature:
* The temperature display range is -99°C to 999°C.
* Unit "C" indicates Celsius. Unit "F" indicates Fahrenheit. You can switch between Celsius and Fahrenheit by short-pressing the "+" button.

2.2. Usage Time / Flow Rate Display:
* In flow meter mode, when water is flowing, the display will automatically switch to show flow rate. When no water is flowing, it shows total usage time (in pressure mode, only time is displayed).
* Time units: DAY means Days, and HRS means Hours. You can switch the time unit by long-pressing the "+" button.
* Flow rate units: LPM means Liters per minute. And GPM represents Gallons per minute. You can switch the flow rate unit by short-pressing the "-" button.
* In other interface modes, it will display the current interface number: 00 indicates K value setting interface (K SETTING).

2.3. Battery Indicator:
* When the batteries are low, the battery icon will flash to remind you to replace them. When the battery level is sufficient, the battery icon will not be displayed.

2.4. Faucet Animation (Flow Meter Mode Only)
* When water flow is detected, a faucet animation with water droplets will appear.

2.5. Total Water Consumption & Flow Rate Display
* L means Liters, and GAL represents Gallons. You can switch between units via the button.
* When total consumption is less than 10,000 L (or GAL), the value is displayed up to two decimal places.
* When total consumption exceeds 9999.99 L (or GAL), the decimal places will be hidden.
* Maximum measurable value: 999,999 L (Note: Always based on liters. Even if set to gallons, it will reset after counting 999,999L, which equals 219,969GAL).
* After reaching the max value, it will reset to 0 and start counting again.

2.6. K-Value Setting Indicator (K SETTING)
* When entering the K-value setting interface, the K SETTING label will be displayed.

2.7. Total Flow Indicator (TOTAL) (Flow Meter Mode Only)
* When the system operates in flow meter mode, the TOTAL indicator will be shown on the main interface.
