Digital Water Flow Meter with G1 Thread Water Flow Sensor Displays Temperature and Water Flow

Digital Water Flow Meter with G1 Thread Water Flow Sensor Displays Temperature and Water Flow

Attention:
- It can be used only if there is water pressure, and the pressure should be over 0.2kg.

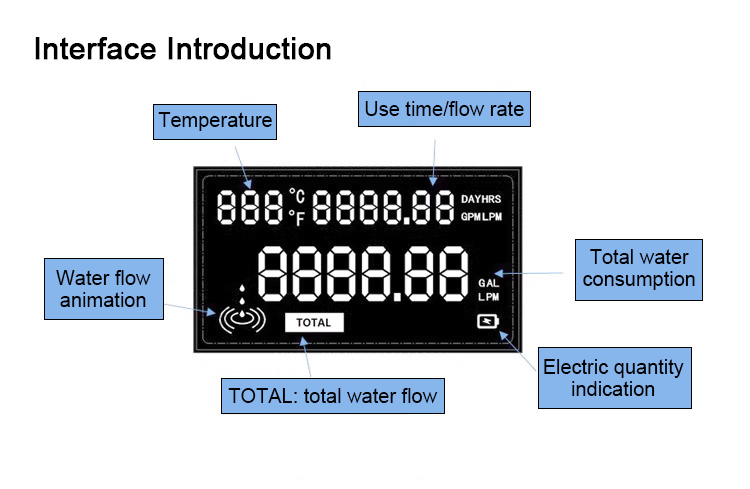

- The display screen can only be used with our customized low-power flow meter. When the screen is used with flow meters by other produces, the quality of the flow meters cannot be guaranteed. The screen can display water flow, instantaneous flow, temperature and total flow. However, due to the different frequency of flow meters of different sizes, it is necessary to adjust the K value constant of the display according to different flow meters when using it to display the accurate flow value.

Features:
- Digital water flow meter enables low power consumption
- It can display water flow
- Temperature can be displayed
- It comes with a water flow sensor

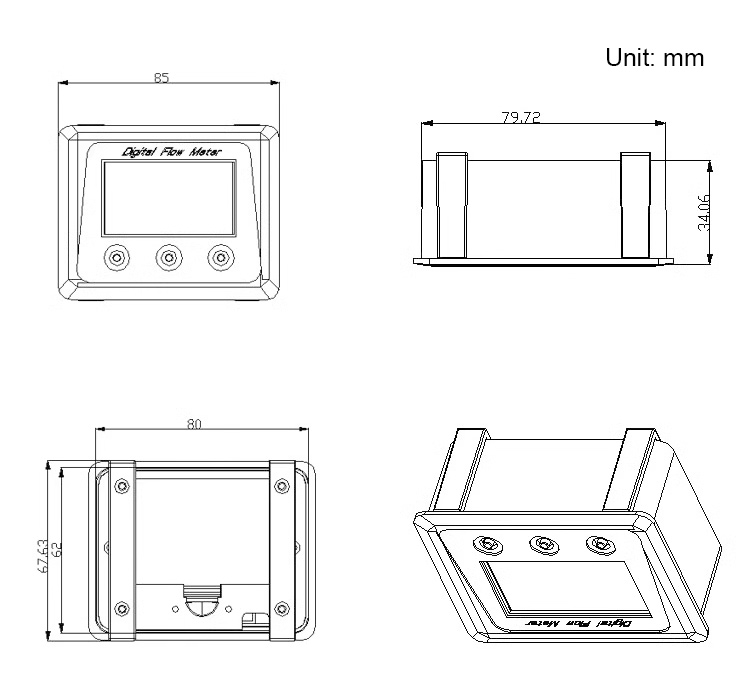

Digital Flow Meter:
- Item name: Digital water meter
- Measuring range: 0.1-9999L
- Voltage: DC 5V
- Temperature display range: -99° to 999°
- Number of buttons: 3

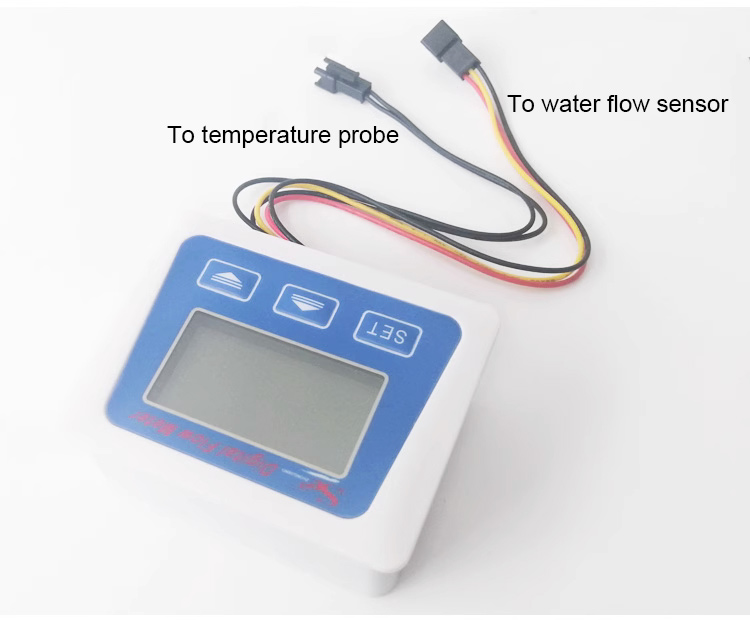

- Interface model: SM-3P and SM-2P

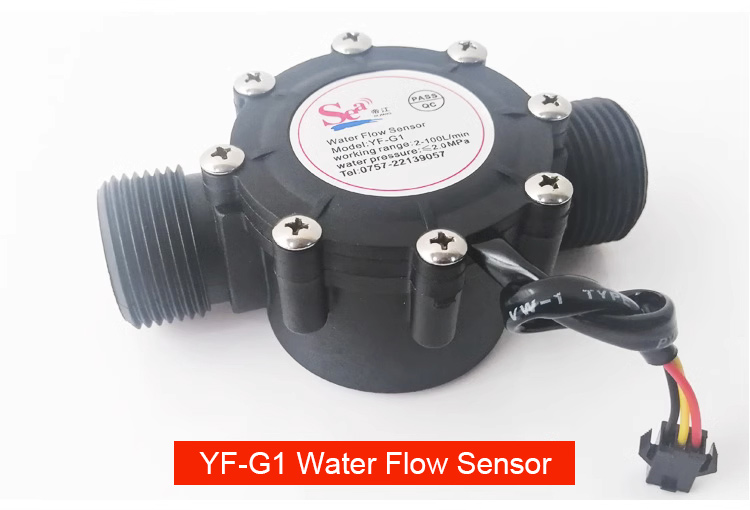

YF-G1 Water Flow Sensor:
- Model number: YF-G1
- Connector size: G1 thread
- Working voltage range: DC 3.5~24V

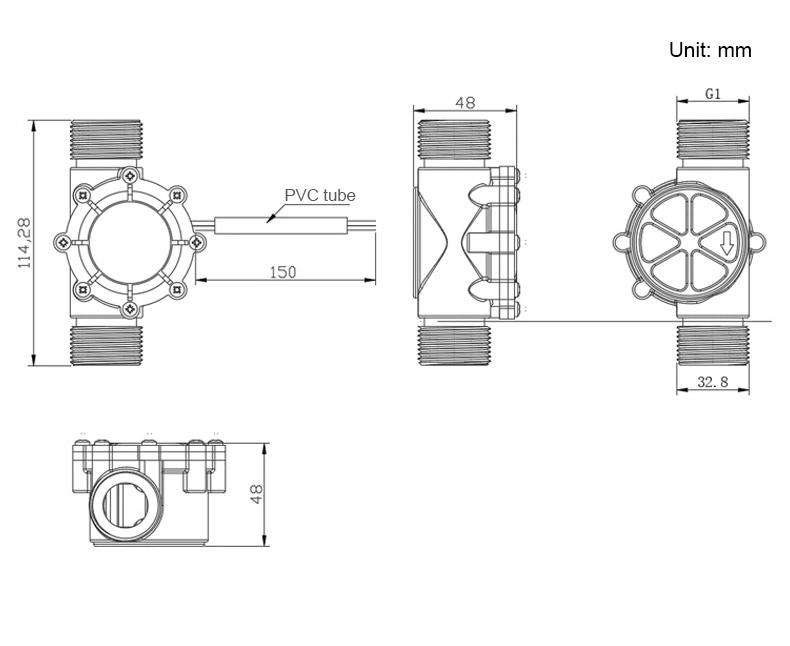

- Inner diameter/outer diameter: inner diameter inlet 22.7mm, outlet 20.9mm and outer diameter 32.8mm
- Thread length: 23mm
- Material: Nylon
- Water pressure resistance: <1.75MPa
- Output pulse high level: >DC 4.5V (input voltage DC5V)
- Output pulse duty cycle: 50%±10%
- Load capacity: ≤10mA (DC5V)
- Flow range: 2~100L/min±3%
- Sealing: Seal each hole, add 1.7Mpa to test for 1 minute and there is no leakage or deformation
- Flow pulse characteristics: (Hz) = (1.08*Q) ±5% (Q is the flow rate L/min), that is, 64.8 pulses per liter of water

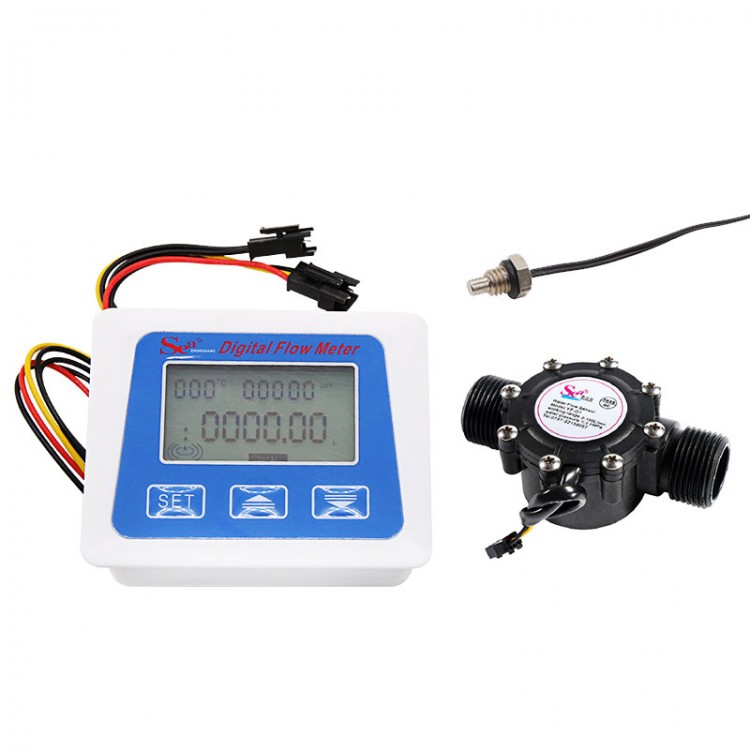

Package Included:
- 1 x Digital flow meter
- 1 x Water flow sensor
- 1 x M8 probe

Note:

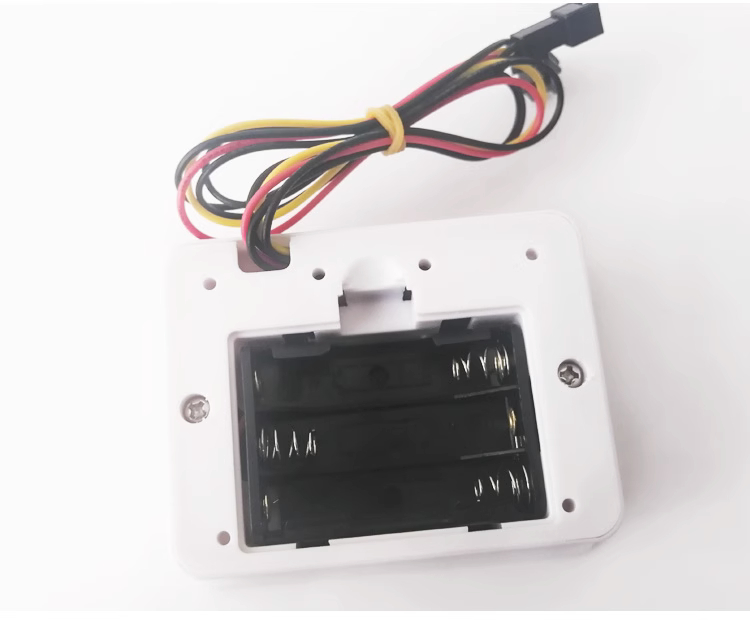

- It is powered by batteries. Batteries are not included in the package.
