CM-230 Industrial Online Conductivity Meter Water Conductivity Meter with Quick Release Electrode

CM-230 Industrial Online Conductivity Meter Water Conductivity Meter with Quick Release Electrode

Description:
The CM-230 is an industrial online conductivity monitor. Maintaining the performance of the original product, it adopts a single-chip microcomputer digital circuit for measurement and temperature compensation. The conductivity meter is widely used in the measurement and monitoring of conductivity values in water treatment equipment such as reverse osmosis. It is easy to use, with reliable performance.

Features:
- With 4-20 mA current output
- Automatic range switching
- Automatic zeroing
- More convenient to use
- More stable performance and more accurate measurements

Specifications:
- Measuring range: 0-1999uS/cm (effective measurement range is 0.10-1999uS/cm); automatic range switching of 0-19.99uS/cm, 0-199.9uS/cm and 0-1999uS/cm
- Automatic temperature compensation: compensation range is 0-100°C, compensation reference is 25°C and compensation coefficient is 2.0%/°C; temperature-compensation element: NTC10KΩ
- Display mode: 3 ½ digit 0.56" LCD (with backlight) displays conductivity
- Instrument level: Class 2.0
- Electrode configuration: Electrode (K=1.00) supports G 1/2 pipe threaded connection, with a 5m/16.4ft cable
- Power supply: AC220V±10% 50Hz (optional DC24V power supply)
- Product size: Panel size: 96 x 48mm/3.8 x 1.9"; hole spacing: 91 x 45mm/3.6 x 1.8"; depth: 100mm/3.9"
- Product standard: Q/TDCB04

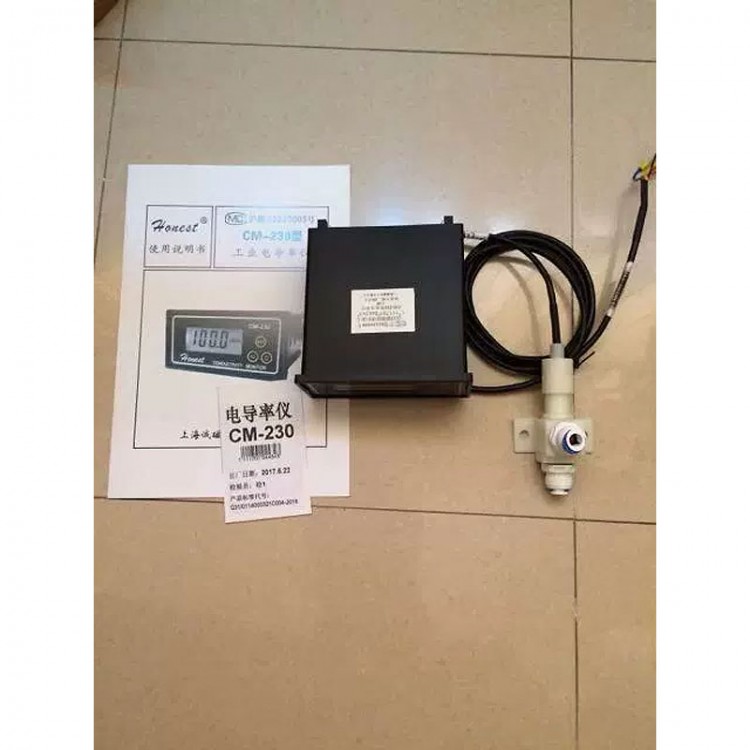

Package Included:
- 1 x Conductivity monitor
- 1 x Sensor
- 1 x Set of installation bracket
- 1 x User manual
- 1 x Product quality certificate

Attention:
(1) The electrode should be installed in the pipeline where the position is low, the flow rate is stable and it is not easy to generate bubbles;
(2) Both the flat and vertical installations of the conductivity cell should go deep into the active water body;
(3) The measurement signal is a weak electrical signal, and its acquisition cable should be routed independently. It is forbidden to connect with a power line and control line in the same set of cable joints or terminal blocks to avoid moisture interference or breakdown damage to the measurement unit;
(4) If the measurement cable needs to be lengthened, please contact customer service.
