JISHEN ER-510 Online Resistivity Meter High Purity Water Resistivity Tester + 0.02 Quick-fit Conductivity Electrode

JISHEN ER-510 Online Resistivity Meter High Purity Water Resistivity Tester + 0.02 Quick-fit Conductivity Electrode

Features:
- Industrial watchdog program protection to prevent instrument crashes.
- Isolated transmission output signal, effectively suppresses external interference.

Specification:
- Model: ER-510
- Measuring range: 0 ~ 18.2Mohm.cm equivalent to conductivity 0.05 ~ 10.00us/cm
- Accuracy: 2.0% (F.S)
- Stability: +/-2 x 10 - 3(F·S)/M
- Resolution: 0.01Mohm
- Display method: 3 1/2 bit LCD, support conductivity/resistivity/mA value display switch
- Electrode constant: K=0.02
- Electrode Cable length: 5m
- Medium temperature: 0 ~ 50℃
- Pressure: 0 ~ 0.5MPa
- Temperature compensation: Automatic compensation based on 25 degrees Celsius

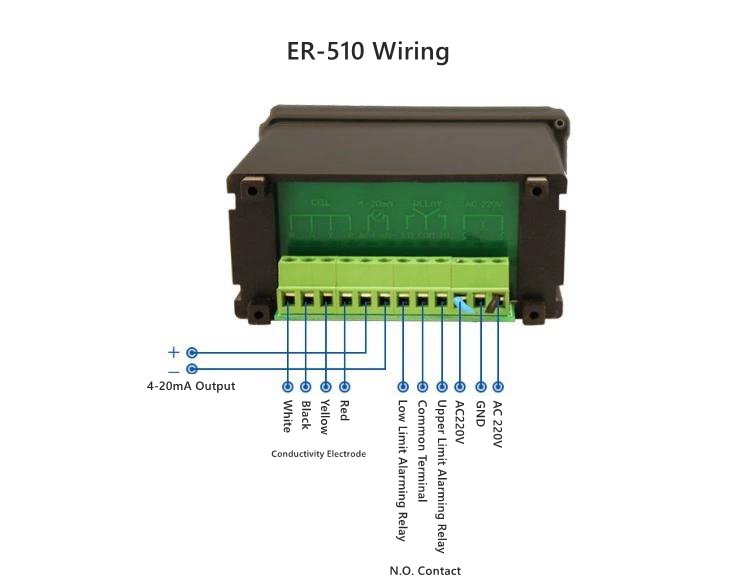

- Signal output: 4 - 20mA isolation protection output, loop circuit resistance < 300ohm
- Alarm output: upper and lower limit alarming contact (3A/AC250V)
- Power supply: AC220V (please contact our customer service if you need AC110 product)
- Power: <=3W
- Environment temperature: 0 ~ 60℃
- Environment humidity: <=85%RH
- Size: 48 x 96 x 100mm
- Holing size: 45 x 92mm

Electrodes:
- Type: quick-fit conductivity electrode (dedicated to pure water machines)
- Measuring range: 0.5 - 1000uS
- Constant: K=0.02
- Temperature: 0~50℃
- Pressure: 0 - 0.5MPa

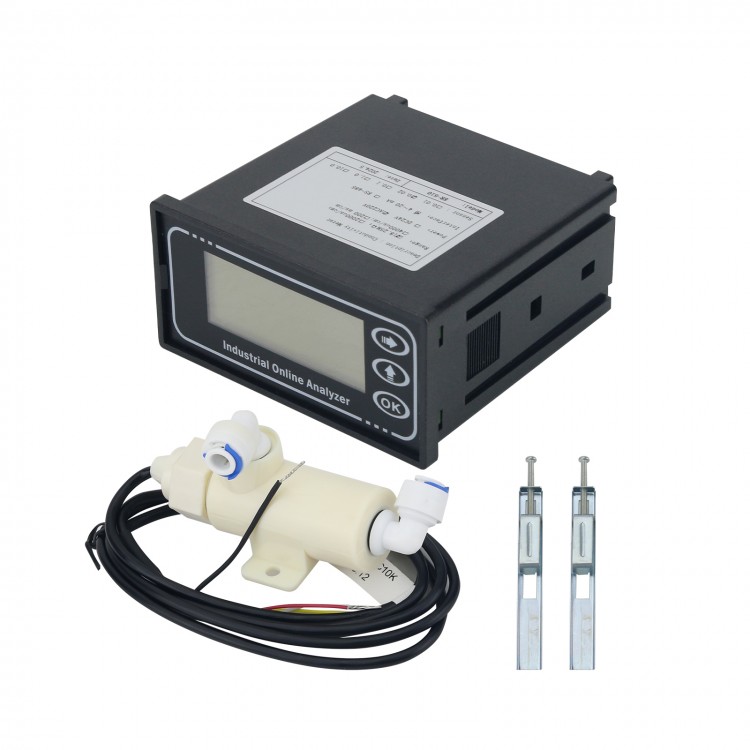

Package Included:
- 1 x Resistivity Meter
- 1 x 0.02 Quick-fit Electrode
