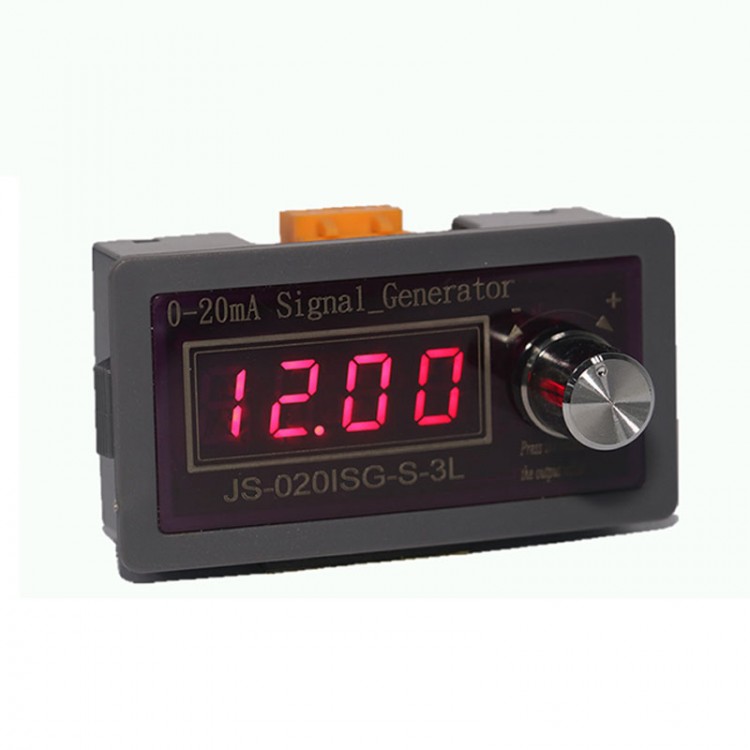

0-20mA Signal Generator Current Source Settable with Digital Tube JS-020ISG-S-3L

0-20mA Signal Generator Current Source Settable with Digital Tube JS-020ISG-S-3L

Description:
The current loop signal generator is an active connection method, and commonly used PLC inverter servo valves can be connected;

The current loop signal generator uses a digital encoder knob. The way to save it when power off is: press the knob to save the output value, then you can turn it randomly, turn the knob off at power off, the next time you turn on or the last saved value, not afraid of chaos Not afraid of starting a large current! ! !

Can set a variety of output ranges, display methods, adjust the number of turns, calibration, etc .;

Special chip for current loop, high power transistor, can work stably for a long time.

Features:
- Various display can be set: 20.00 (mA), 100.0 (%), 50.0 (H)
- A variety of outputs can be set: 0-20, 4-20, 0-22 (mA)
- Coarse and fine adjustment dual mode, can also set the number of turns separately
- Minimum knob adjustment number 0.01mA: the last number plus or minus 1
- The actual error after calibration is 0.01mA, and the high-precision linear output
- 4 digits 0.4 inch highlight large digital tube, the display is clearly visible
- Digital encoder knob, durable, not affected by the environment
- Power supply with reverse connection protection
- Output can be short-circuited
- Imported chip for long-time stable performance

Technical Parameters:
- Input current: 0-22mA
- Supply voltage: 15-30V
- Sampling resistance: 10-500 ohms
- Output accuracy: 0.01 mA
- Product size (front): 79.5 x 42 mm
- Product size (rear): 72.5 x 39.5 mm
- Installation panel/chassis opening size: 77 x 40 mm

Package Included:
- 1 x Signal Generator
