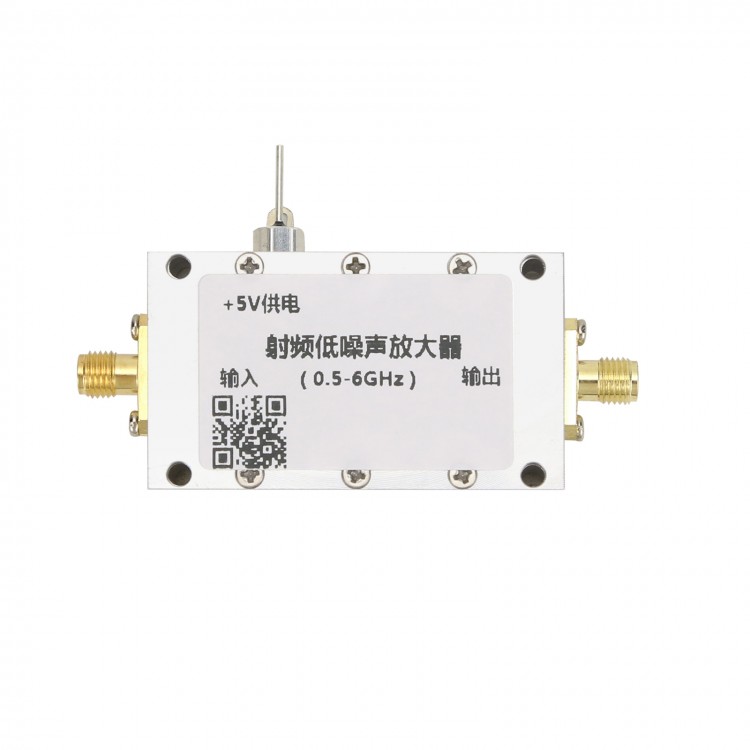

0.5-6GHz Low Noise Amplifier Receiver Amplifier C-Band LNA Improving Sensitivity 35DB Typical
Description:
Low-noise amplifiers are generally used as high-frequency or intermediate-frequency preamplifiers for various types of radio receivers, as well as amplifier circuits for high-sensitivity electronic detection equipment. In the case of amplifying weak signals, the noise of the amplifier itself may interfere with the signal very seriously. Therefore, it is hoped to reduce this noise to improve the signal-to-noise ratio of the output. This module uses low-noise imported LNA die, CNC shell packaging, has excellent electromagnetic shielding performance, can work in a wideband in the range of 500M-6GHz, covers L, S, C band receiving systems, and has 35dB high gain characteristics. It can still achieve 25dB gain at 6GHz. Widely used in the front end of broadband receiver systems, and can be added to the input end of the spectrum analyzer to improve sensitivity.
Parameters:
- Working voltage: +5V single power supply
- Working current: 75mA (low power consumption)
- Working frequency: 0.5-6GHz

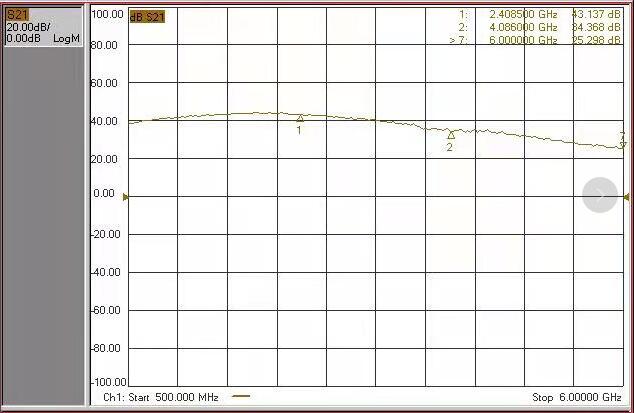

- Gain: 34dB at 4GHz (see test curve)
- P1dB output power: 12dBm
- Noise figure: 1.6dB
- Input and output interface: SMA (female)

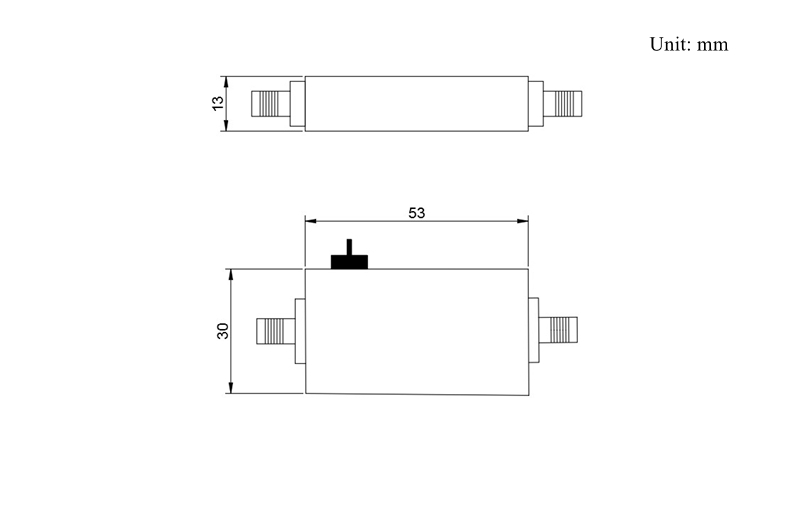

- Module size: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x LNA Amplifier
