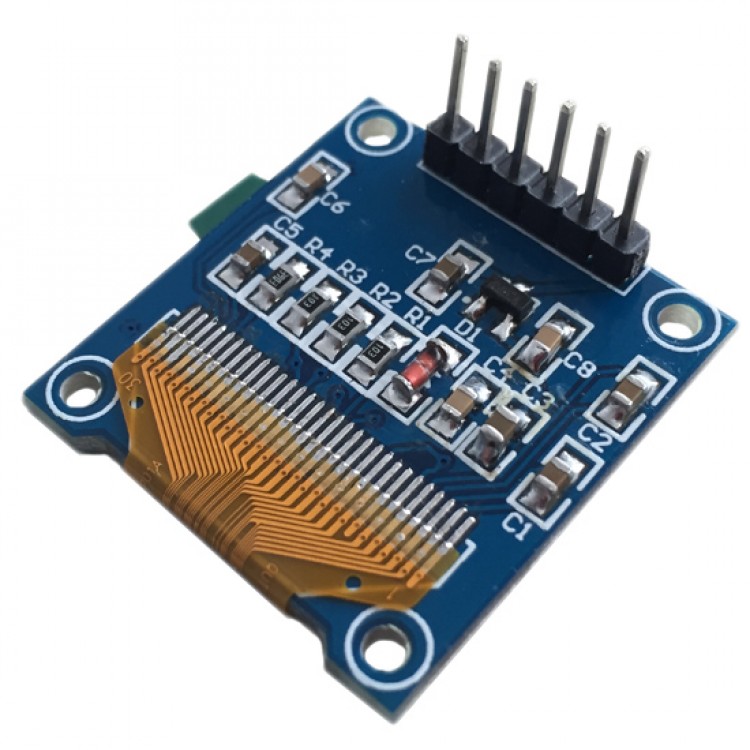

0.96-inch 128x64 OLED Display Module 12864 Highlight Low-Power High-Definition LCD Arduino SPI Interface
Description:
OLED uses SSD1306 driver chip to drive 0.96inch 128x64 dot matrix OLED, each point can be its own light. It can displays Chinese characters, ASCII, patterns,etc.High contrast, viewing angle(>160 degrees), supports many control core. Full srcreen lit0.08W, normal full screen display Chinese characters0.06W(far below the TFT LCD technology).occupy less IO ports with SPI communication.
Feature:
- Can connect with a variety of MCU,using SPI communication
- 5V power supply
- Small, clear display
- Itself may shine without backlighting, user only needs to use modules software to light what they need
- OLED linits no angle range, generally up to 160degrees, the weight id much lighter than LCD
Direction for using:
This module is equipped with a 0.96inch 128x64LED screen. Use SPI mode driver. OLED screen uses SSD1306 driver chip. Drivers using C51 programme to drive.
Wiring is as follows:
- P1.0 port connects to D/C
- P1.1 port connects to CS
- P1.2 port connects to MISO
- P1.3 port connects to CLK
Package included:
1x0.96-inch 128x64 OLED Display Module
