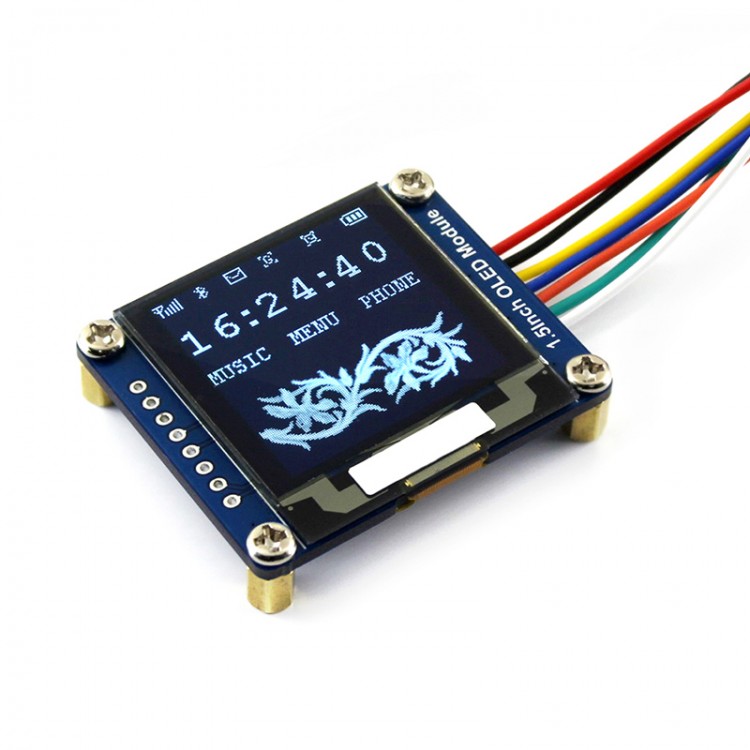

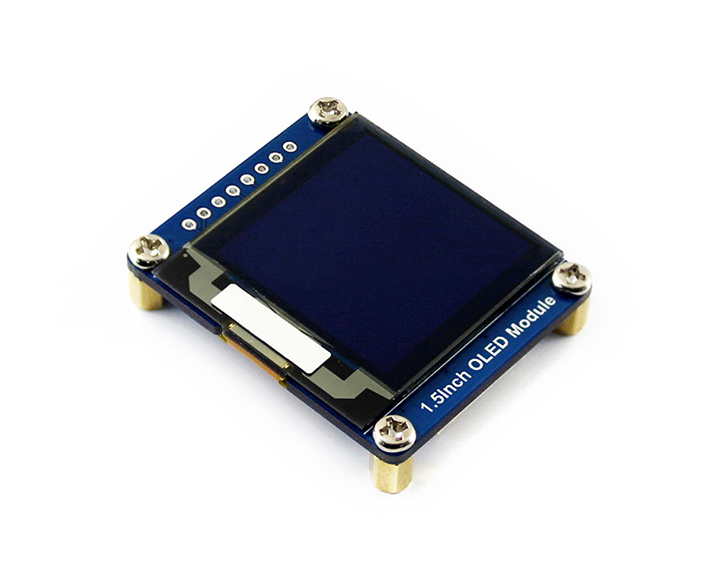

1.5 Inch OLED Display Module SSD132 Driver Chip I2C Communications For Jetson Nano Raspberry Pi

Description:

This is a 1.5-inch OLED module, 128×128 resolution, 16 gray scale display, with internal controller, enabling SPI and I2C communication.

Features:
- 128x128 high resolution, clearer display
- Support 16 gray scale display, picture has a stronger sense of hierarchy and more lifelike
- Supports SPI and I2C interfaces, and the communication method can be selected through resistor
- Provide complete supporting information manual (Sample programs for Raspberry/Jetson Nano/Arduino/STM32 and others)

Parameters:

- Driver chip: SSD1327
- Support interface: SPI / I2C
- Display color: white
- Gray level: 16 levels
- High resolution: 128x128 (the same size on the market is mostly 128×64)
- Viewing angle: greater than 160°
- Working voltage: 3.3V / 5V

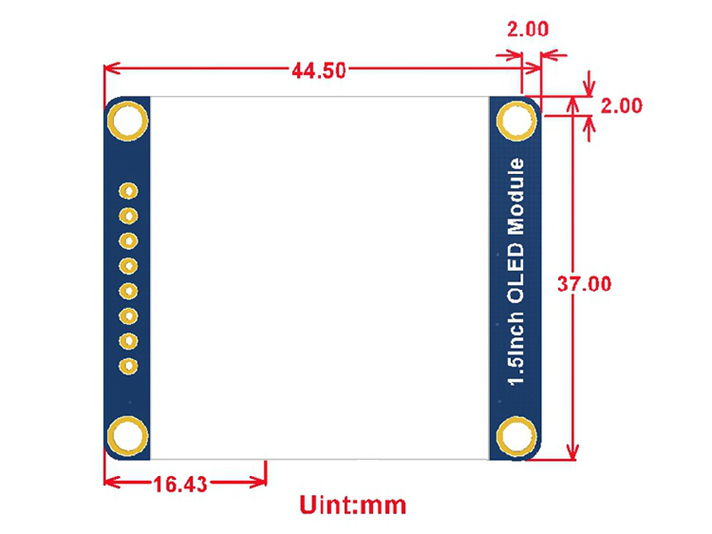

- Module size: 44.5 x 37 (mm)

Pin Definition:
VCC: Power supply + (3.3~5V power input)
GND: power supply ground
NC: Empty
DIN: Data input
CLK: Clock signal input
CS: Chip select signal, effective in low level
DC: data/command selection. Low level means command, high level means data
RST: Reset signal, effective in low level

The OLED module provides two drive interfaces: 4-wire SPI and I2C interfaces respectively.
                         BS       CS                                  DC                                 DIN               CLK
4-wire SPI       0       Chip Select         Data/Command                    MOSI              SCK
I2C                   1       Empty              I2C Address Selection              SDA               SCL

Product Information:
- User manual
- Schematic diagram
- Sample program
- Development Information
- Download here: www.waveshare.net/wiki/1.5inch_OLED_Module

Package Included:

- 1 x 1.5-Inch OLED Module
- 1 x PH2.0 7PIN Connection Cable
