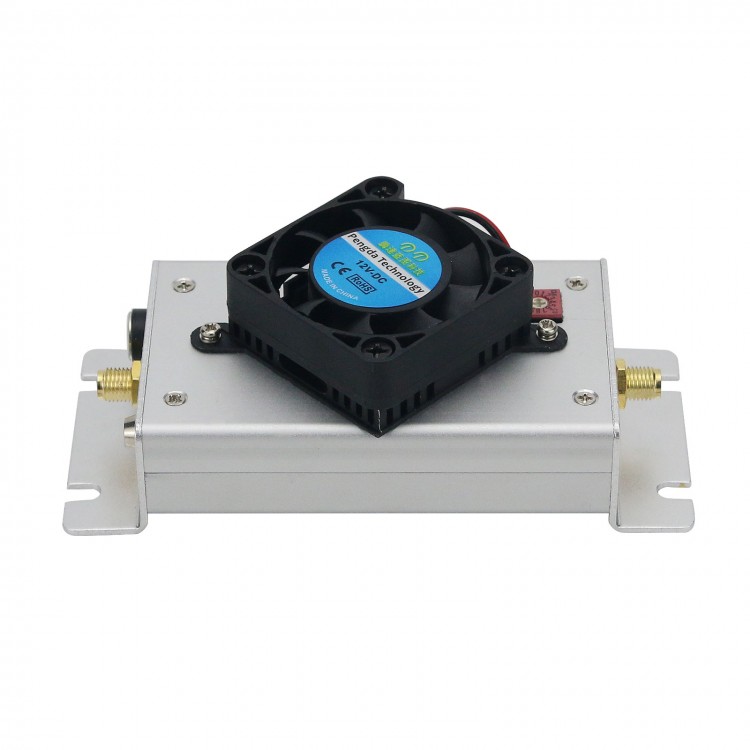

1-1200MHz 1.2GHz Broadband RF Power Amplifier Module with Heat Sink 16dB Adjustable Gain Output 2W
Features:
- 1-1200MHz RF broadband power amplifier
- Gain: 21-31dB (adjusted by turning the digital encoder, 1dB step, 16dB adjustable)
- Power supply: DC+12V (power on through DC socket. If you need a 220V power adapter, please contact customer service)
- Current: 500mA (static). This current varies with input frequency and power, which is what we usually call the dynamic current value is less than 650mA
- Output power: within 1-1200MHz, the output power is greater than 30dBm (1W), and the saturation power is 2W
- Input & output form: 50 ohm impedance, SMA-K connector
- Maximum input power for anti-burnout: 20dBm (when the attenuator controls 10dB), 12dBm (when the attenuator controls 0dB)
- Items have been tested before delivery

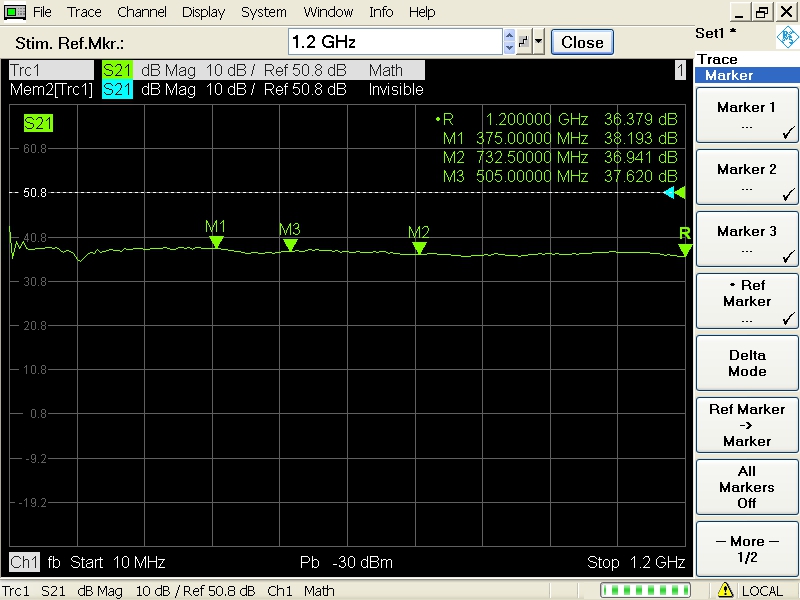

The following figure shows the gain curve when the small signal has no attenuation:
Precautions:
- The amplitude of input signal is below the maximum value. It is recommended to input at 0dBm;
- Input and output must be connected to a load, and it must be a reliable connection to avoid damage caused by output reflection;
- If you need it to work for a long time, please add an external heat sink or allow it to dissipate heat by other means of heat conduction.
Package Included:
- 1 x Set of RF Power Amplifier
