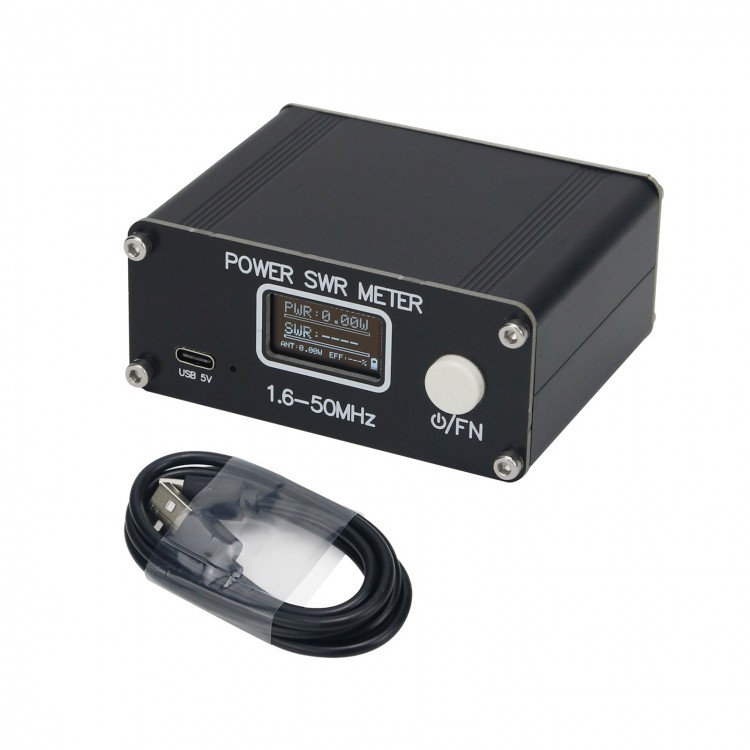

1.6-50MHz PWR SWR Meter POWER SWR METER 0.5-150W SWR Power Watt Meter Built-in Battery OLED Display
Features:
- According to the fitting algorithm of detector diode characteristics and double reference subsection detection, the accuracy in the whole power range of 0.5w-150w is better than 5%.
- There are five interface display modes, which can be selected by one click according to your preferences.
- High speed average detection mode, real-time efficiency display.
- Buzzer alarm when standing wave is greater than 2.0.
- Compatible with open source software code, free code modification brings more fun.
- USB firmware upgrade does not require a dedicated burner.
- Built-in lithium battery can be used for more than 50 hours after charging.
- Multi function keys make it more fun to use and provide an interactive way for adding functions in the future.
Specifications:
- Frequency range: 1.6-50mhz
- Power measurement range: 0.5w-150w
- Standing wave measurement range: 1.0-99.9
- Insertion loss: ＜ 0.12db
- Inserted standing wave: ≤ 1.02
- Measurement accuracy: better than ± 5%
- Standing wave alarm: ≥ 2.0 (with closing function)
- RF interface type: sl16-m or n (default m)
- Display content: forward power; Standing wave; Antenna end power; Efficiency
- Power supply: built-in 3.7v/1000mah rechargeable lithium battery or USB type-C
- Shutdown power consumption: ＜ 0.1ua
- Data communication: USB type-C
- Firmware upgrade: supported
- Overall size: 88 x 38 x 64mm/3.5 x 1.5 x 2.5" (excluding protruding parts)
Attention:
Continuous transmission in FM or am mode is recommended not to be greater than 110W; SSB or CW can work under the power of 200W for a long time; More than 500W will damage the detection component.
Brief Introduction:
- Long press switch button to turn on/off. Short press to switch display interface, and double-click to switch the standing wave alarm
- There are five kinds of display interfaces, which are automatically saved and automatically called after the next boot
- The charging red light is displayed, and the light is turned off when it is fully charged.
Package Included:
- 1 x SWR Power Meter
