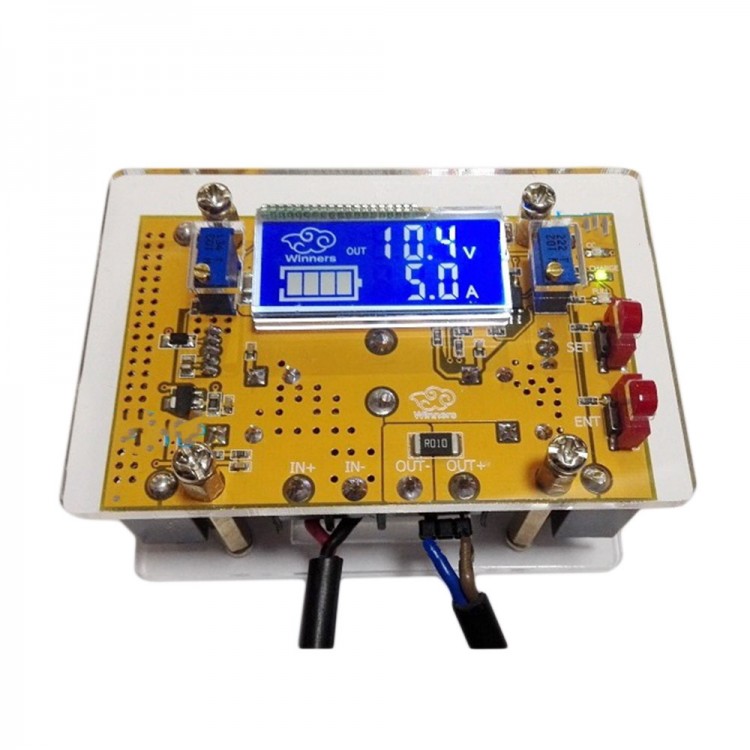

10A DC Step Down Buck Power Supply Module LCD Voltage Current Display with Shell Kit

10A DC Step Down Buck Power Supply Module LCD Voltage Current Display with Shell Kit

Parameter
- Input voltage: 7V-36V
- Output voltage: 1.5-35V continuous adjustable (only as the buck module, input must be more than output as much as 1.5V and above)
- Output current: Adjustable, maximum 10A (recommended <= 8A, 5A or 70W,Please pay attention to the cooling.  The constant current can be adjusted when output voltage is more than 2V. Current regulation works under constant current .
- Output power: maximum 150W (recommended<= 100W)
- Operating temperature: -20~+75 degrees
- Operating frequency: 300KHz
- Conversion efficiency: up to 95%
- Short circuit protection:Yes
- Input reverse protection: No
- Output anti reflux: No, for charging Please add a diode (not include)
- Installation: two acrylic boards, 8* Pillars, 8 *3mm screws
- Connection:Wiring terminal or welding terminal, IN for the input, OUT for the output
- Module size: long 80mm wide 53mm high 35mm
- Weight: 132g
- With shell kit, assemble it yourself.

NOTICE: Current can be adjusted under contant current. And it will the ocnstant current mode when the actual load output current should be more than the set current.

Package list:
- 1 x Power Supply Module
