| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $765.91 | $750.28 | $726.83 | $695.57 | Contact US |

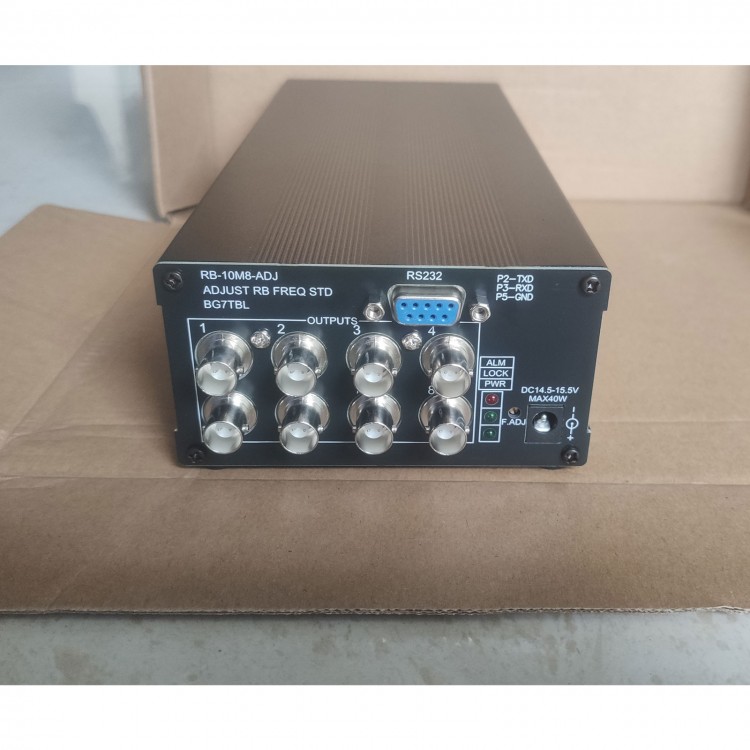

10kHz-150MHz 8-Channel Adjustable Clock Source Built-in SA.22C Rubidium Clock Frequency Standard with BNC Connector
Specification:
- Power supply: DC9 - 12V, ≤18W
- Frequency range: 10K - 150M; OUT6 only output 0.5M, 1M, 2M, 5M, 10M, 20M, 50M, 100M
- Frequency step: 10K-10M, 1Hz; 10M-150M, 10Hz
- Waveform: square wave
- Impedance: 50ohms
- Amplitude: compatible with 5Vpp or 3.3Vpp
- 10M output reference phase noise: 1Hz - 100dBc/Hz, 10Hz - 131dBc/Hz, 100Hz - 142dBc/Hz, 1K - 150dBc/Hz
- Non-harmonic spurious: better than 50dB
- Output interface: BNC connector
- External input: BNC connector, 0 - 20dBm, 10MHz
- COM port: write frequency
- LED:
ALM: alarm LED, normal is off, if PLL UNLOCK or other fault LED on
EXT-IN: external standard frequency input, LED on when there is input signal; LED off if there is no signal input
PWR: power indicator, LED on when power on
- Product size: 107 x 55 x 122mm
- Net weight: 800g
Package Included:
- 1 x Clock Source
- 1 x Power Adapter
