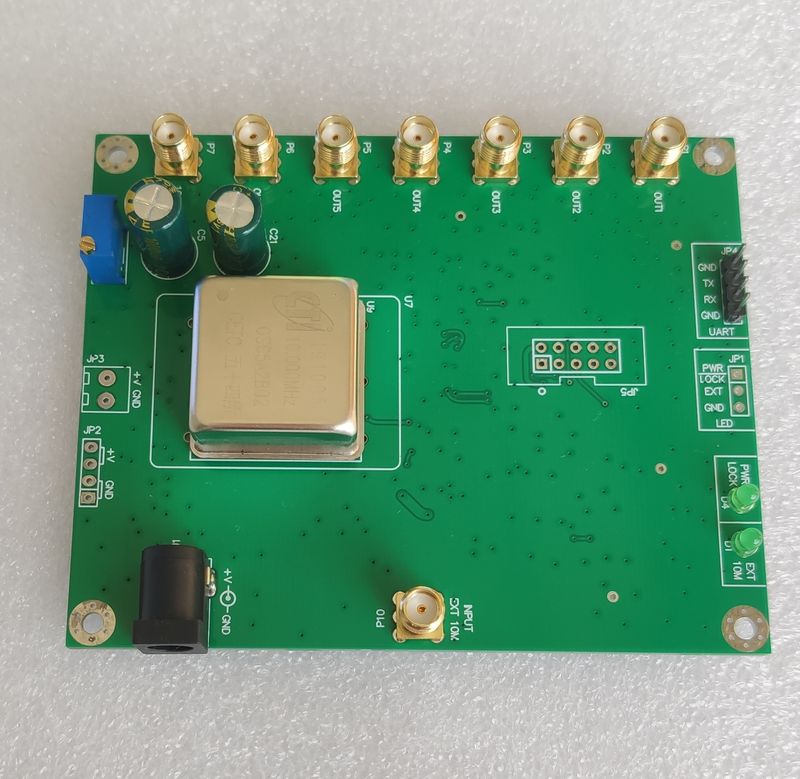

10M-6PLL 6-Channel Adjustable 10MHz PLL Board Built-in OCXO Phase Locked Loop Module 0.5-3.3Vpp Input

Specification:
- Model: 10M-6PLL
- Input frequency: 10MHz
- Input signal amplitude: 0.5 - 3.3Vpp
- Output: OUT10OUT6: 10K-200M, step of 10Hz, 3.3Vpp square wave
- Frequency change method: computer programming
- Power supply: DC4.9 - 5.1V, <0.6A
- Product size: 103 x 80 x 22mm
- Net weight: 60g

LED Definition:
- EXT LED: With external 10M input, the LED is on.
- PWR/LOCK LED: PLL locks and LED is on. PLL unlocks, and led flashes. When there is no power, LED is off.

Serial Port Definition:
- GND: connect to computer serial port 5-pin
- RXD: connect to computer serial port 3-pin
- TXD: connect to computer serial port 2-pin
- Baud rate: 9600BPS
- Protocol: $ WE000000000,000000000,000000000,000000000,000000000,000000000, *000000000 is the output frequency, fixed to 9-bit ASCII code, corresponding to OUT1-OUT6

Using Method:
- Connect to power supply, connect a computer to write frequency. After writing, input 10M, use the output frequency

Applications:
- For speakers, HiFi, communication, tests, etc.

Package Included:
- 1 x PLL Board
