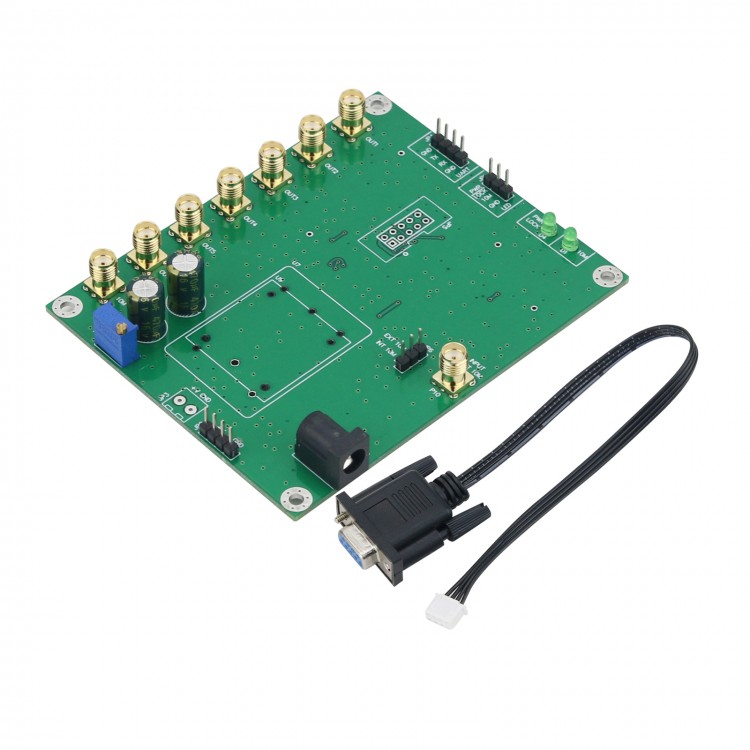

Phase Locked Loop PLL Board 10MHz Input 6-Channel Output Frequency Adjustable Conversion Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$115.37
  • Price in reward points: 1154 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $113.06 $110.76 $107.29 $102.68 Contact US
Quantity:
Phase Locked Loop PLL Board 10MHz Input 6-Channel Output Frequency Adjustable Conversion Board

Specifications:

- Model: 10M-6PLL
- Item name: 10M 6CH PLL board
- Input frequency: 10MHz
- Input signal amplitude: 0.5-3.3Vpp
- Output: OUT1-OUT6: 10K-200M; step 10Hz, 3.3Vpp square wave; OUT3 is OUT1/n(n=1,2,3... n is integer), OUT6 is OUT4/n(n=1,2,3,,,n is integer)
- Frequency change type:connect RS 232 port (write frequency via computer)
- Power Supply: DC4.9-12.5V, <0.1A
- Size: 103*80*22 mm (LxWxH); Weight: 60g

LED Definition:
- EXT LED: With external 10M input, the LED is on.
- PWR/LOCK LED: PLL locks and LED is on. PLL unlocks, and led flashes. When there is no power, LED is off.

Serial Port Definition:
- GND: connect to computer serial port 5-pin
- RXD: connect to computer serial port 3-pin
- TXD: connect to computer serial port 2-pin
- Baud rate: 9600BPS
- Protocol: $ WE000000000,000000000,000000000,000000000,000000000,000000000, *000000000 is the output frequency, fixed to 9-bit ASCII code, corresponding to OUT1-OUT6

Using Method:

- Connect to power supply, connect a computer to write frequency. After writing, input 10M, use the output frequency

Applications:

- For speakers, HiFi, communication, tests, etc.

Package Included:
- 1 x PLL Board
