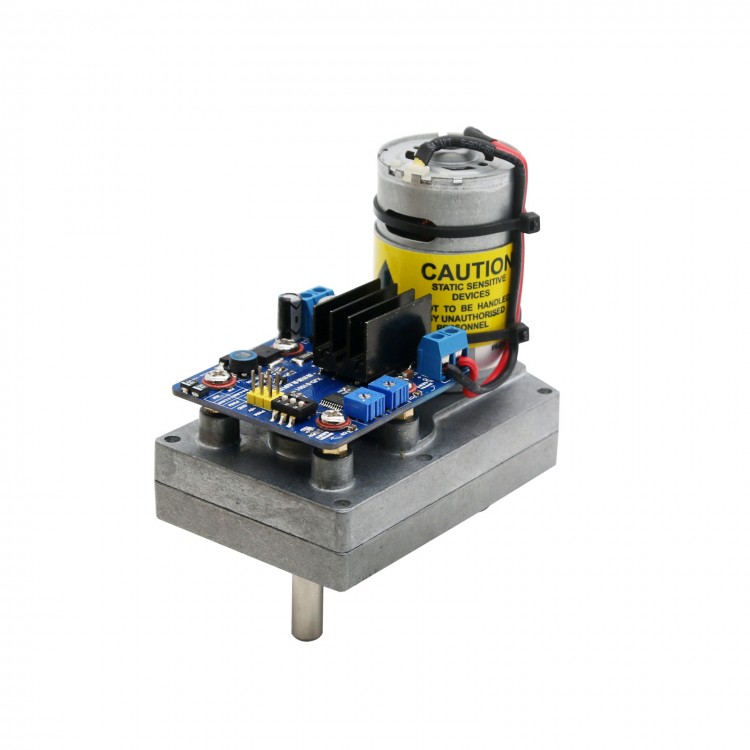

110kg.cm High Torque Digital Servo Magnetic Encoding Steering Servo 8-30V For Robot Mechanical Arm
Technical Parameters:
- Rated Torque: 110kg.CM= 11 N.M.
- Rated Voltage: 8-30V. The larger the voltage, the larger the torque and speed.
- Rated Current: 0.2-10A. Not over 10A or the circuit board might be damaged.
- Speed: 34RMP/MIN@24V.
- Control Modes:
PWM Control Mode: 20HZ@1.0-2.0ms or 0.5-2.5ms
0-5V Analog Signal Control Mode
- Weight: 605g
- Feedback Method: Magnetically Encoded Feedback.
- Circuit Output: Outputs 0.8A 5V which can drive other circuit boards.
Features:
- Imported magnetic feedback chip
- Wide Voltage Range: 8-30VDC
- The maximum and minimum angles are adjustable, with same center point
- Easy and fast to select with dip switches
- Operating current up to 10A
- Support customization service and modification thanks to self development
- Wide Angle: 0-330°
- Thick gear box prolongs its service life
- Low noise operation
Applications:
- For wireless electronic throttle control, and large crane proportional valve control
- For large bionic robots and robotic joints
- For Wireless remote control car and boat steering power
- For industrial robot automated production line
- For showcases, electric models, electric shoe racks and hangers
Using Environment:
- Storage Temperature: -30℃ to 80℃
- Operating Temperature: -15℃ to 70℃
Mechanical Properties:
- Material of Gear/Output Shaft: Alloy Steel
- Shell Material: Aluminum
- Number of Bearings: 2 Tow Ball Bearings
- Robotic Arm: Not Included
- Waterproof: Not
- Mechanical Lifespan: Over 1,000,000 times (normally)
- Max. Torque: 110KG.CM
Electrical Characteristics:
- Operating Voltage: DC 8-30V
- Quiescent Current: 50mA
- Angle: 0-330°
- No-Load Current: 200mA
- Max. Stall Current: 10A@10S
- Precision: 330°/1023 | 330°/4096
Control Characteristics:
- Analog Voltage Control: DC 0-5V
- PWM Control @50-333Hz: 1.0-2.0ms. 0.5-2.5ms
Torque:
- Type: 110kg.cm
- Max. Torque: 110KG.CM
- Holding Torque: 100KG.CM
- Rated Speed @24V: 0.12S/60°
Package Included:
- 1 x High Torque Steering Servo
Note: Functions, including buttons, voltage, sound and certain action groups, can be customized. If customization service is needed, please contact us for more details and extra price. Thank you!
