120W Constant Current Electronic Load Battery Discharge Capacity Tester Meter Battery Tester Module
Optional Type:
- 60v 10a Type 09 with Potentiometer on Board

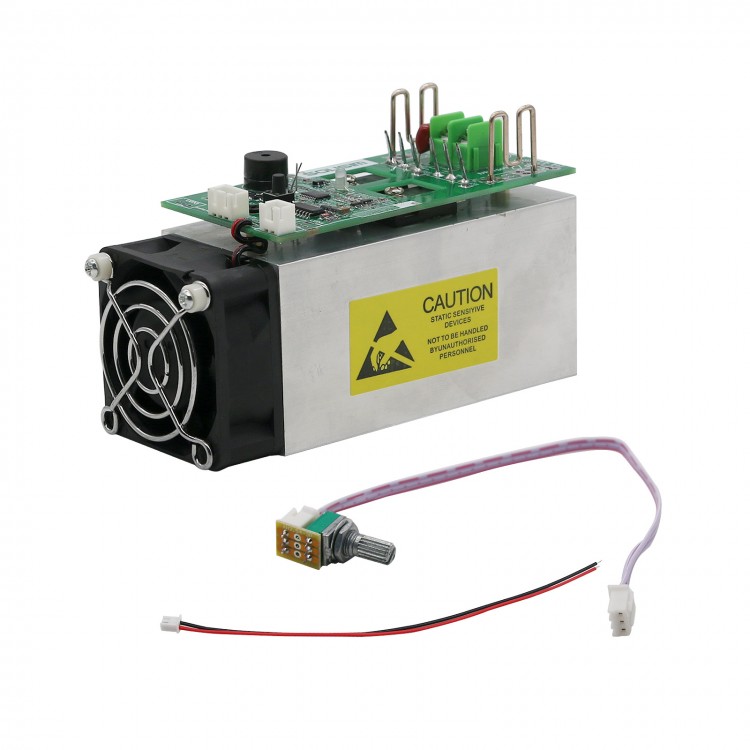

- 60v 10a Type 09 with External Potentiometer
- 60v 10a 3296W Potentiometer Welding Type
Note: Please tell us the type you want when purchasing. Thank you!
Description:
- Load module supply voltage: DC 12-15V (recommended power supply voltage is greater than 12V, Do not share power with other control boards and measuring instruments when using)
- Minimum standby power consumption: 0.15w (LED indicator is off)
- Typical maximum power consumption of the load: 3.0w (the fan is at maximum speed)
- Load constant voltage mode adjustment range: 0-60V
- Load constant current mode adjustment range: 0-10A
- Load test input rated power: 120W (test ambient temperature 25 ° C)
- Load test maximum input power: 150W (test environment temperature 25 ° C)
- Load constant voltage adjustment accuracy: 60V / 270 ° (RV09 adjustable potentiometer)
- Load constant current regulation accuracy: 10A/270° (RV09 adjustable potentiometer)
- Maximum temperature drift of load: ≤80ppm
- Load fan control: intelligent temperature control
- Load protection function: over voltage, over current, over power, over temperature protection
- Load module weight: 0.4kg
- Load module specifications: length 125mmx width 50mmx80mm
- Load heat sink process: non-isolated insulation
Package Included:
- 1 x Electronic Load
