150W Constant Current Electronic Load 160V 14A Battery Discharge Capacity Tester Meter Battery Tester

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.96
  • Price in reward points: 290 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.38 $27.80 $26.93 $25.77 Contact US
Quantity:

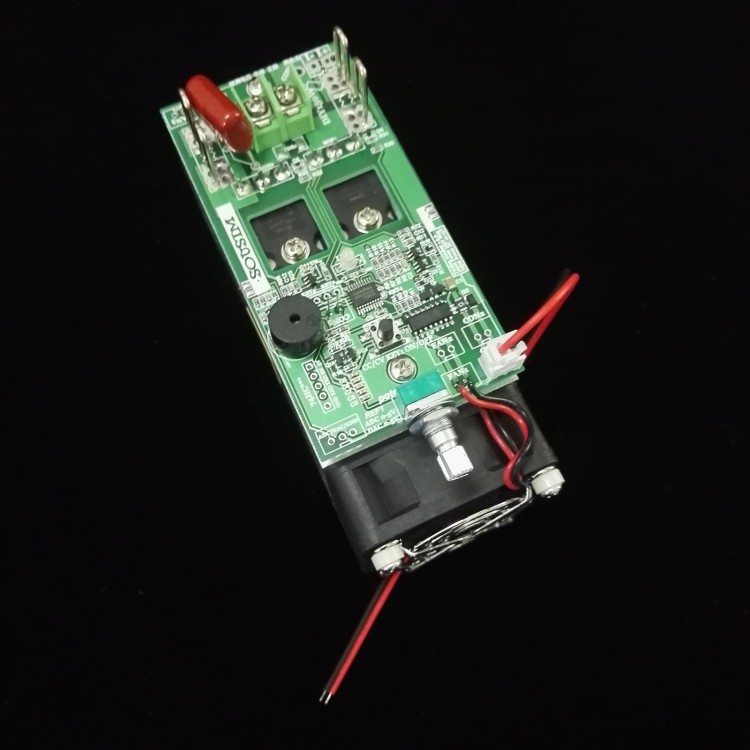

150W Constant Current Electronic Load 160V 14A Battery Discharge Capacity Tester Meter Battery Tester Module


160V 14A

Default configuration is 09 type Potentiometer installed in the board


Description:
- Load module supply voltage: DC 12-15V (recommended power supply voltage is greater than 12V, Do not share power with other control boards and measuring instruments when using)
- Minimum standby power consumption: 0.15w (LED indicator is off)
- Typical maximum power consumption of the load: 3.0w (the fan is at maximum speed)
- Load constant voltage mode adjustment range: 0-160V (optional)
- Load constant current mode adjustment range: 0-14A
- Load test input rated power: 120W (test ambient temperature 25 ° C)
- Load test maximum input power: 150W (test environment temperature 25 ° C)
- Load constant voltage adjustment accuracy: 60V /270° 150V /270° (RV09 adjustable potentiometer)
- Load constant current regulation accuracy: 10A/270° (RV09 adjustable potentiometer)
- Maximum temperature drift of load: ≤80ppm
- Load fan control: intelligent temperature control
- Load protection function: over voltage, over current, over power, over temperature protection
- Load module weight: ≥0.4kg
- Load module specifications: length 125mmx width 50mmx80mm
- Load heat sink process: non-isolated insulation (use the insulation heat sink to avoid short circuit or electric shock)


Dimension

Diagram
