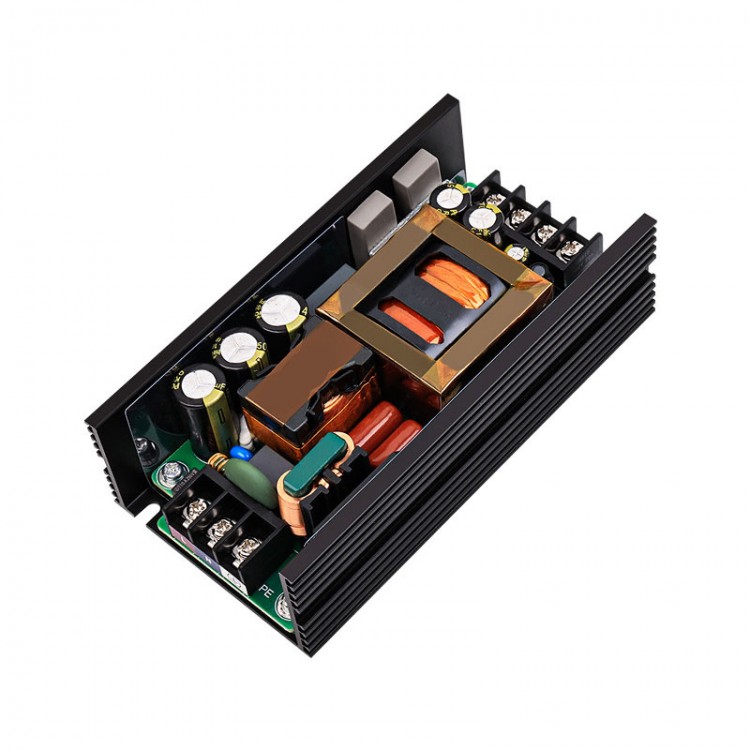

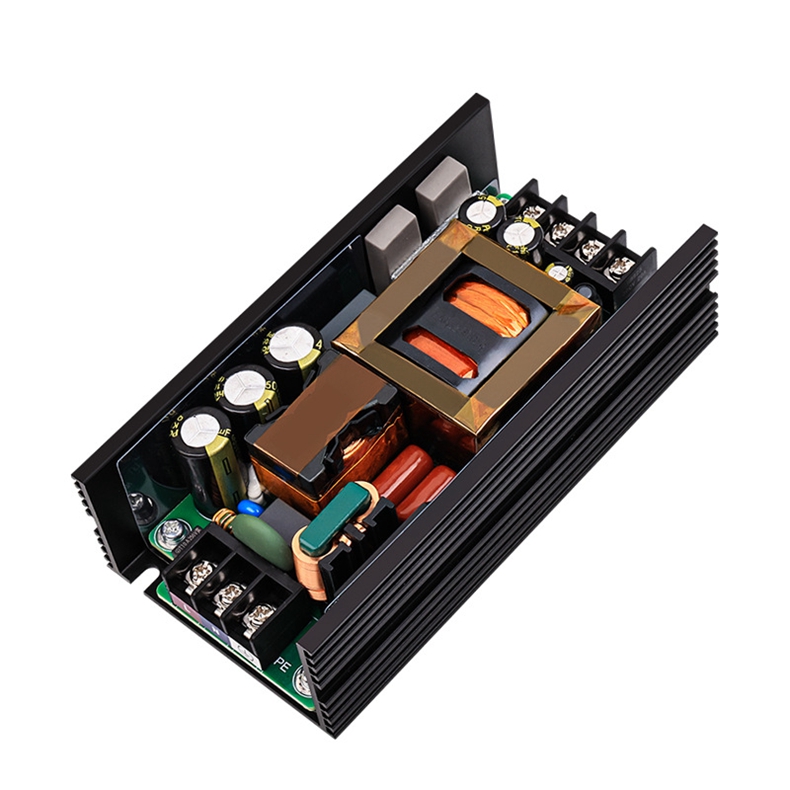

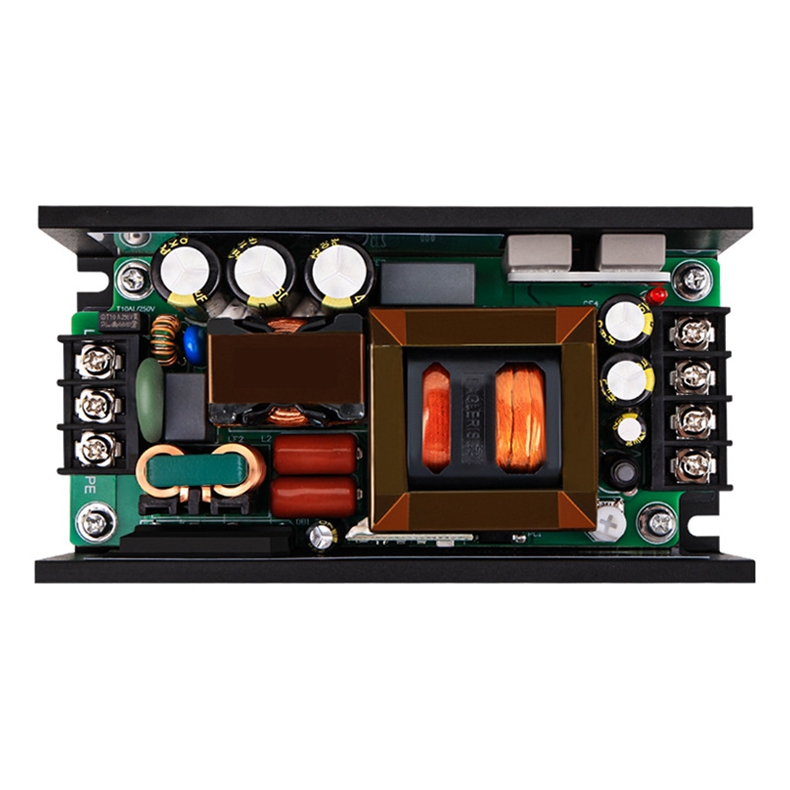

12V 20A Active PFC Wide Voltage Switch Power Module AC - DC Industrial Voltage Stabilizing and Reducing Module 12V 250W
Specification:
- Model: MP-H250S12-GPF
Output Characteristics:
- Output voltage: 12V
- Current range (natural cooling): 100 - 176VAC; 0 - 15A
- Current range (natural cooling): 176 - 264VAC; 0 - 20.84A
- Current range (20CFM fan cooling): 100 - 176VAC; 0 - 20.84A
- Current range (20CFM fan cooling): 176 - 264VAC; 0 - 25A

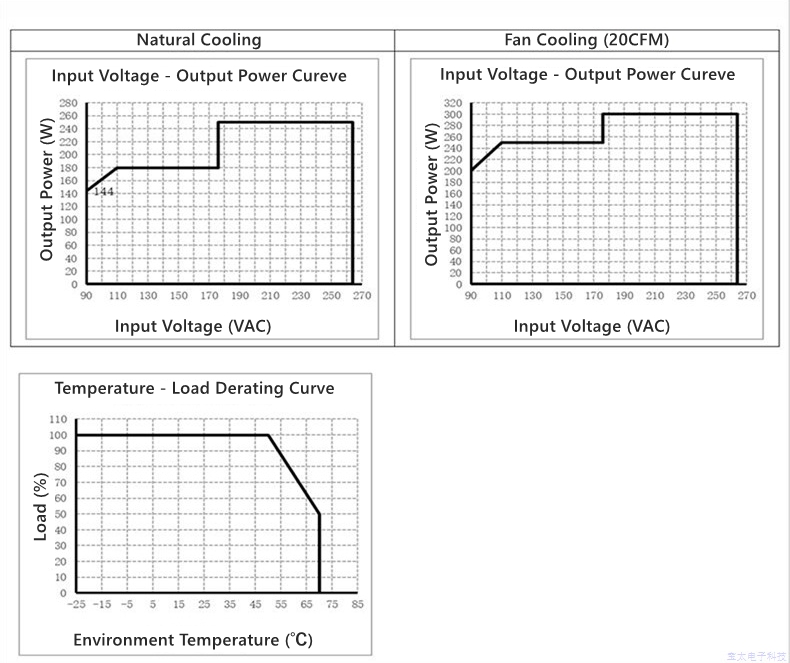

- Power (natural cooling): 100 - 176VAC; 180W
- Power (natural cooling): 176 - 264VAC; 250W
- Power (20CFM fan cooling): 100 - 176VAC; 250W
- Power (20CFM fan cooling): 176 - 264VAC; 300W
- Efficiency (115VAC/230VAC, typ.): 89%/92%
- Efficiency (115VAC/230VAC, min): 87%/89%
- Voltage ripple (maximum value): 120mVp - p
- Voltage adjustment (adjustable resistance): 11 ~ 13.5V
- Voltage precision: ±1%
- Line regulation rate: ±1%
- Load regulation rate: ±3%
Input Characteristics:
- Start time (max.): 0.5S
- Rise time (typ.): 10ms
- Voltage range: 90 - 264VAC
- Frequency range: rated frequency 50/60Hz; working frequency range 47 - 63Hz
- Input current (max.): 2.7A/115VAC; 100A/230VAC
- Surge current (max.): cold start: 50A/115VAC; 100A/230VAC
Protection Characteristics:
- Input under-voltage protection: 60 - 80VAC
- Output over-current protection: 110% - 150% output rated current, hiccup mode, support automatic recovery)
- Output over-voltage protection: 110% - 130% output rated voltage, turn off the output and restart to recover
- Output short circuit protection: hiccup mode, after the short circuit is removed, it can automatically recover
- Over-temperature protection: hiccup mode, it can automatically recover after the temperature drops.
Other Functions:
- Working temperature: -25℃ ~ +70℃
- Working humidity: 20% ~ 90% RH non-condensing
- Storage temperature: -40℃ ~ +85℃
- Working humidity: 10% ~ 95% RH non-condensing
Security and EMC Standard:
- Safety regulation: IEC62368
- Voltage resistance: I/P - 0/P: 3750VAC, I/P - FG: 1500VAC, 0/P - FG: 500V
- Insulation impedance: I/P - 0/P, I/P - FG, 0/P - FG: >100M ohm/500VDC

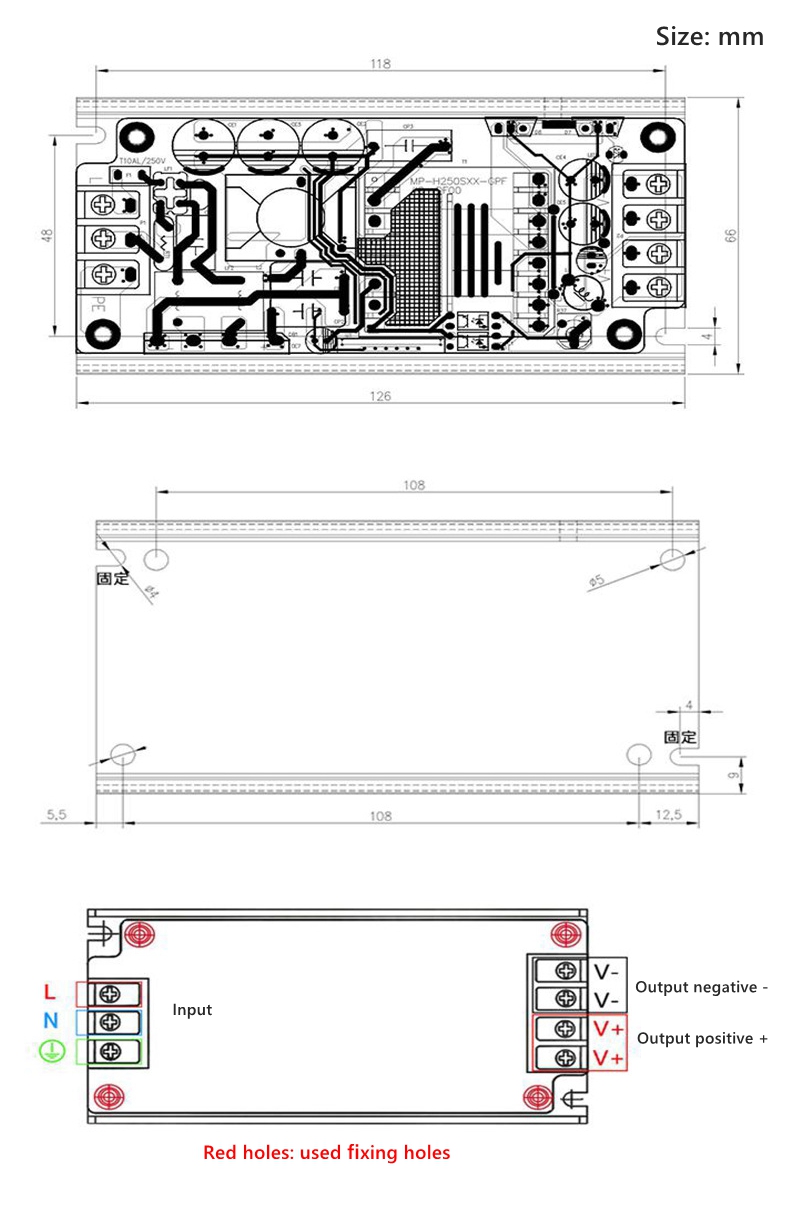

- Size: 126 x 66 x 35mm
- Weight: 365±5g/PC
Package Included:
- 1 x Power Module
