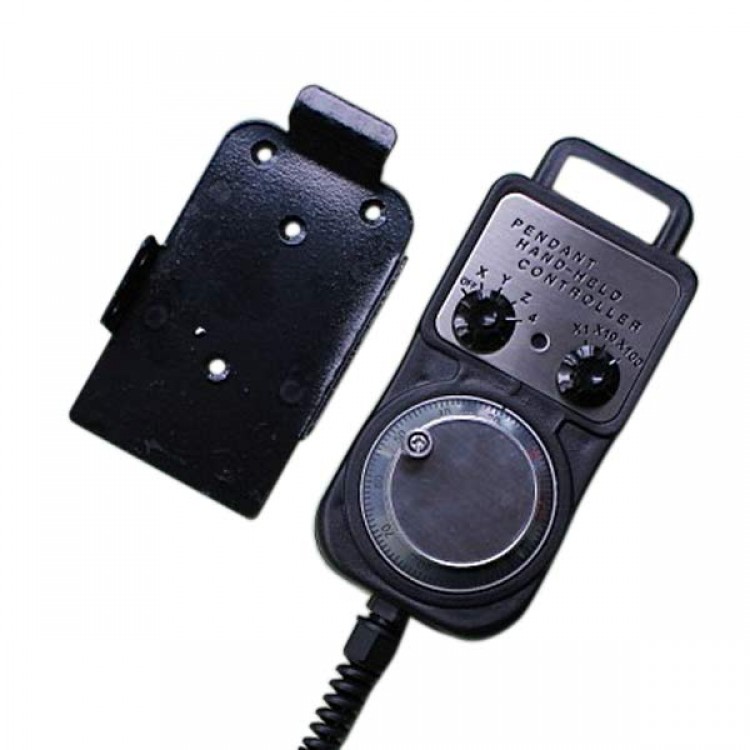

12V 25 3-Axis Pulse CNC Pendant Hand-Held Controller 3-Mode for CNC Engraving Machine
Features:
- Plastic Case,high isolation,anti-oil and anti-dust design
- ×1,×10,×100 three Modes
- For Engraving Machine,printers and other CNC Machine
- Optinal pulse:25p/r 100p/r
Specfication
| Power Voltage | DC+5V±5% or +12V | Max rotate speed | 500rpm |
| Respond frequency | 0～5KHZ | Output voltage | High≥85％VCC,Lowe≤0.3V |
| Weight | about 0.67KG | size: | 155(with handle)*70*33mm |
| Working/Storage temperature | -10℃～70℃ 、 -30℃～85℃ | Humidity | 30～85﹪ |
| Multiplying | X1,X10,,X100 | Optional axis | OFF,X,Y,Z,4-12 |
| EMergency Button | no | Fasten holder | no |
| decoder Life Span | ≥10000h（+25℃，200 rpm） | Decoder signal location | 4 |
| Cable Specfication | Black,19 | ||
