|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$188.31||$184.46||$178.70||$171.01||Contact US|

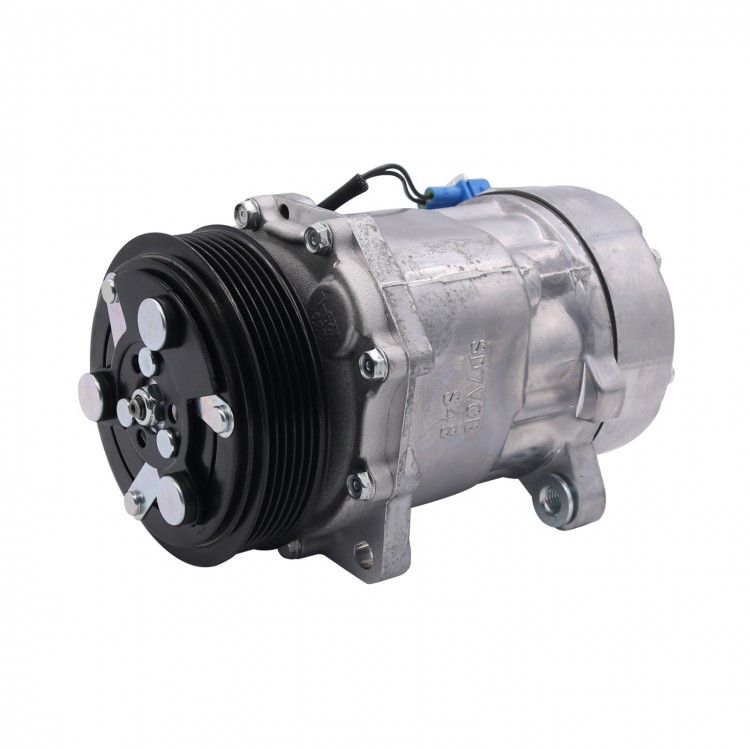

12V Air Conditioning Compressor for VW BUS T4 2.5 TDI LT 28-35 2 28-46 2 2.5 2.8 TDI SDI
- For Manufacturers: sands
- Voltage: 12 [V]
- Connection technology: H / PAD
- Number of ribs: 6
- Pulley Diameter: 128.00 mm
- with V-ribbed pulley
- Oil Capacity: 135 ml
- Compressor ID: SD7V16
- Cylinder Head ID (compressor): VQL
- Compressor ID: 130793
- Component Number: 1207, 1244, 1246, 1279
- With magnetic coupling and pulley
- Completely pre-assembled
- Ready to install
Reference OE Numbers:
- For VW: 7D0820805C
- For VW: 7D0820805H
- For VW: 7D0820805G
- For VW: 7D0820805KX
- For VW: 7D0820805K
Note: Please check the reference OE numbers and all the pictures carefully before purchasing. If you are not sure, please feel free to contact us. Thank you!
- 1 x Air Conditioning Compressor
Important information for installing an air conditioning compressor:
- In order to avoid installation errors, ATP recommends having the goods installed by a specialist workshop only.
- The filter dryer must be replaced when changing the compressor.
- A thorough cleaning of the air conditioning system with the rinsing fluid used in workshops is required.
- The coolant of the entire air conditioning system must be renewed.
- The entire air conditioning system must be closed quickly.
- The possible cause of the malfunction or damage to the old compressor must be remedied.
- Turn the magnetic coupling by 360 degrees by hand 2-3 times before installation (before doing so, please remove the plugs carefully).
Compliance with the above instructions may prevent damage to the replacement part and the vehicle.
