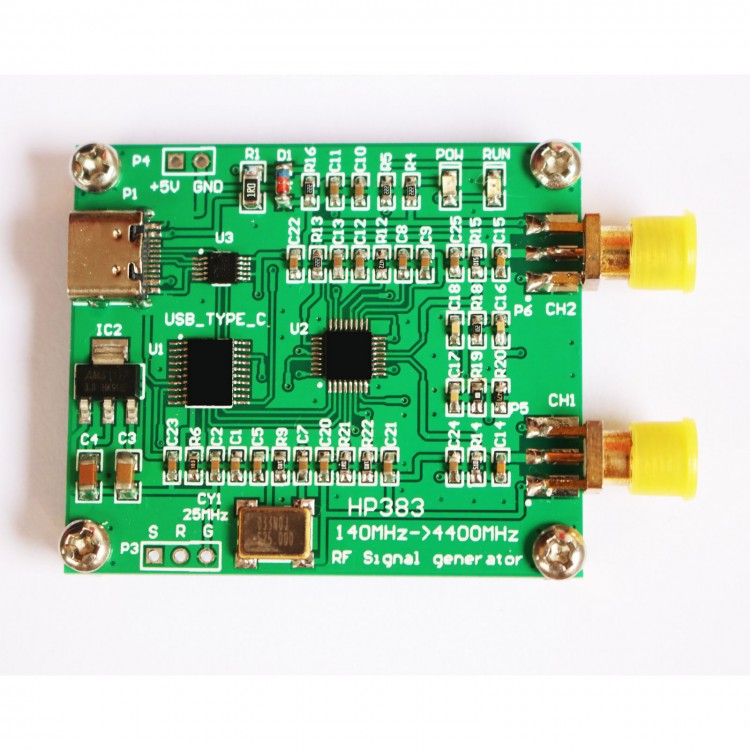

140MHz - 4.4GHz USB RF Signal Generator Module Support Sweep Frequency Function for Instrument Calibration
Description:
- HP383 is a small RF signal generator; This module is easy to use, and the output frequency is immediately updated by setting parameters on the upper computer.
- Application: signal generator, instrument calibration.
Specification:
- Signal range: 140 - 4400MHz
- Signal amplitude: -10 ~ 0dBm
- Working voltage: 5VDC
- Working current: < 400mA
- Product size: 50 x 42 x 20mm
Interface Description and Related Operation:
- P1 interface: USB Type-C
- CH1 interface: signal output 1
Package Included:
- 1 x Signal Generator Module
