16 Channel Wifi Version OpenBCI V3 Compatible Open Source Arduino EEG Brain Electrical Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$581.21
  • Price in reward points: 5812 Reward Points: 58
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $569.59 $557.96 $540.53 $517.28 Contact US
Quantity:

16 Channel Wifi Version OpenBCI V3 Compatible Open Source Arduino EEG Brain Electrical Module


Please contact us if you have any question when you use the product

Description:
-  Our openbci device is the same as the official one, and can be equipped with the official GUI, including wired version,  WiFi version, because the GUI is the official original analysis software.
 - It is the latest 32-bit version.

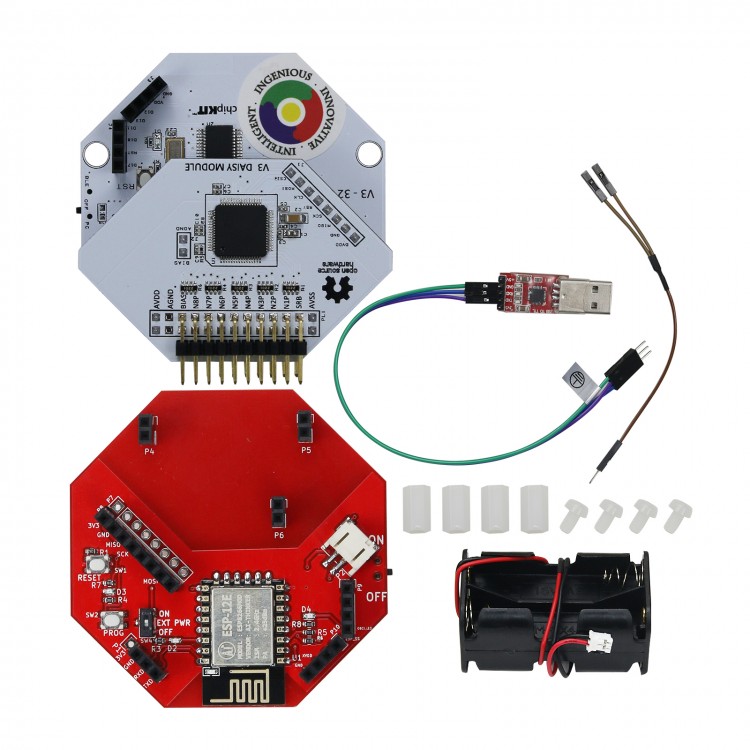

 - This listing is for WiFi version and it has a WiFi expansion board:





12


   OpenBCI is an open source human brain or bioelectric-computer interface.OpenBCI finished with a built-in high precision special chip (EEG) and brain waves (EMG), heart muscle waves waves (ECG), and other testing and measuring, and one-stop open source (HW, FW, SW), launch team hopes to share and study human bioelectricity mysterious (electrical and electrical body) to learn more about ourselves, our own.

OpenBCI, has eight independent signal acquisition channel, each channel has two side, the root signal one root for reference, and you can configure a number of different channel public or independent) using the reference terminal, this is what electrical module on the market generally does not have (currently on the market other EEG brain electrical module [take common Thinkgear/spirit force of science and technology for] basic provide only one channel, a few to 2 ~ 3), simply a OpenBCI is equivalent to a few common electrical module on the market, and the master for the Arduino UNO,Eeg chips are provided to TI (Texas instruments), a world-renowned semiconductor manufacturer.










8-channel
















Data collection (source code open source)









Control hexapod robot with brain through OpenBCI










Control small flying sharks with the brain through OpenBCI



















   The version as part of the basic version of DIY wireless version, redundant function module (that is, in addition to the electrical part) including acceleration module and onboard SD slot, this part of the official did not use too much, just auxiliary parts, has nothing to do with electrical completely, in order to reduce the cost of DIYer, this part of the shipment is not contain (namely OpenBCI board no welding the parts - accelerometer, SD card slot)...The red box in the picture below will not be included (the box is irrelevant to eeg, so removing it will not affect eeg function at all).




Package list:

- 16 channel OpenBCI DIY EEG module (wireless)
- OpenBCI DIY manual
- OpenBCI user manual
- OpenBCI schematic SCH only (PDF document)
- Original FW and GUI data processing software source code

Related applications and documents of OpenBCI research and data analysis (English version)

File Download

Note: Please download the latest version of the corresponding system (such as Windows 64bit) :

Analysis software OpenBCI_GUI_EXE download address
https://share.weiyun.com/5oyE5uO

Analysis software source code Openbci_gui-3.3.2.zip download address
https://share.weiyun.com/5MDi0vU

Source code compilation software Processing download address
​https://share.weiyun.com/5oOiWbY
