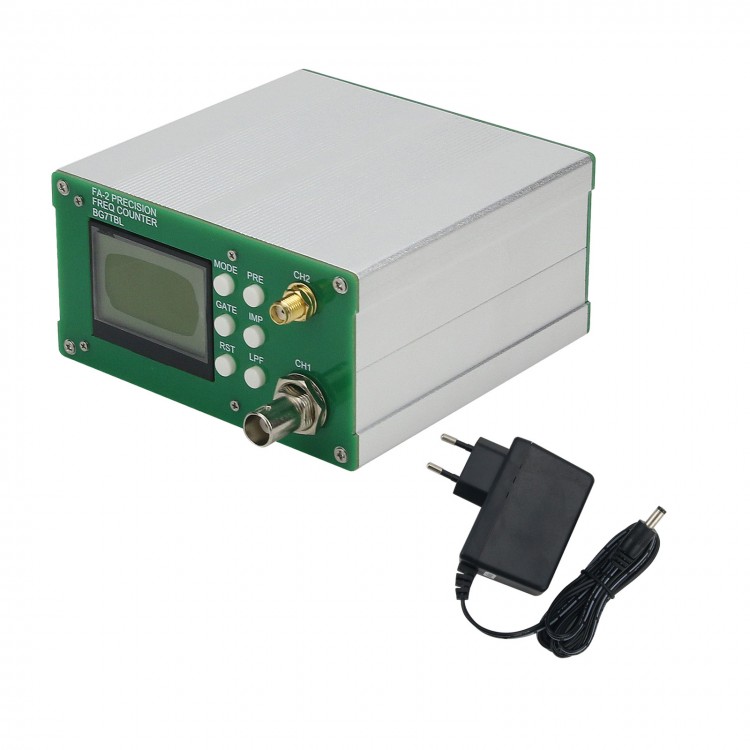

1Hz-12.4GHz Frequency Counter Frequency Meter 11Bit/Sec 10MHz OCXO w/ Power Adapter FA-2-12.4G PLUS

Availability: In stock, usually dispatched in 1 business day

  • Price:$180.35
  • Price in reward points: 1804 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $176.74 $173.14 $167.73 $160.51 Contact US
Quantity:

1Hz-12.4GHz Frequency Counter Frequency Meter 11Bit/Sec 10MHz OCXO w/ Power Adapter FA-2-12.4G PLUS

Specifications:

- Optional versions: FA-2-6G PLUS/FA-2-12.4G PLUS/FA-2-26.5G PLUS
- CH1 frequency range: 1Hz-300MHz
- CH1 input impedance: 50 OHM/1M OHM
- CH1 input reference sensitivity: 50 OHM, 25mVRMS-2VRMS; 1M OHM, 25mVRMS-10VRMS
- CH1 frequency accuracy: 0.1s gate: 0.001Hz at 10M; 1s gate: 0.0001Hz at 10M; 10s gate: 0.00001Hz at 10M
- CH1 test speed: 11bit/second at 10Mhz
- CH1 power test range: -50DBM to +20DBM,1M-550M at 50 OHM
- CH1 power measurement accuracy: 0.5DB at 10MHz
- CH1 interface type: BNC
- CH2 frequency range: 30MHz-6GHz/200M-12.4G/200M-26.5G
- CH2 input impedance: 50 OHM
- CH2 frequency accuracy: 0.1s gate: 1Hz at 1GHz; 1s gate: 0.01Hz at 1GHz; 10s gate: 0.001Hz at 1GHz
- CH2 input power: -20dBM to +13dBm at 0.5-5G/-20DBM to +13DBM at 0.2-10G
- CH2 interface type: SMA
- Gate time: 0.1 second/1 second/10 second
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal frequency standard year aging: 0.5Hz
- Internal reference output port power: 4dBm
- External reference input power range: 0dBm to +20DBM

Operation modes:
- CH1 frequency measurement mode
- CH1 statistical mode
- CH2 frequency measurement mode
- CH2 statistical mode

Front Panel's Functions:
- MODE: Change operation modes
- GATE: Gate time selection
- RST: restart measurement
- PRE: preset
- IMP: CH1 input impedance selection (50 OHM/1M OHM)
- LPF: CH1 100K LPF ON/OFF
- CH1: Channel 1 input
- CH2: Channel 2 input

Rear Panel's Functions:
- 10M REF INPUT: external 10M reference input
- 10M REF OUTPU: 10M reference output
- USB: USB port
- STD ADJ: internal OCXO frequency fine tuning
- ON/OFF: switch
- 11.7-12.9V MAX 12W: DC socket

Other Parameters:
- Types of statistical mode data: average, maximum, minimum, peak-to-peak
- Power supply: 11.7-12.5V, Start: <0.6A, Stable: <0.4A
- Dimensions: 106*55*105mm
- Net Weight: 350g

Package Included:

- 1 x Frequency Meter
- 1 x DC12V Power Adapter

Optional Battery Parts:
1. External Battery Parts: with 3pcs 12V 2.6AH 18650 batteries
2. Internal Battery Parts: built-in 2pcs 2.6AH 18650 batteries

Note:
- If battery parts are needed, please contact us to cover the cost.
