1M-1.5GHz Low Noise Amplifier LNA SMA Connector Gain 32dB with 12V Switching Power Supply
Specifications:
- Frequency Range: 1MHz-1.5GHz
- Gain: 32dB typical
- Output Power: 10dBm

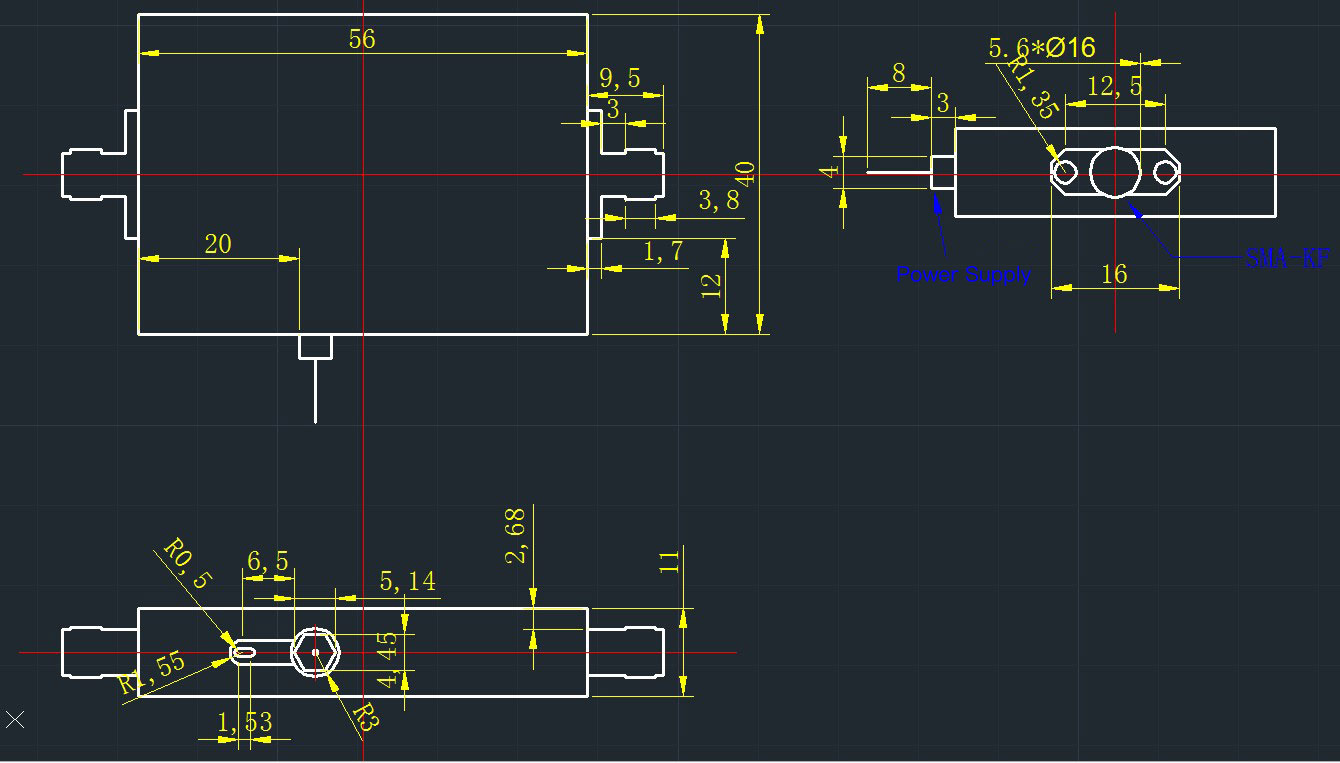

- Size: 56 * 40 * 11 mm
Applications:
- Test equipment for outdoor battery-powered systems (Battery is not included)
- Small signal amplifier or preamplifier
- L-S band wideband receiving

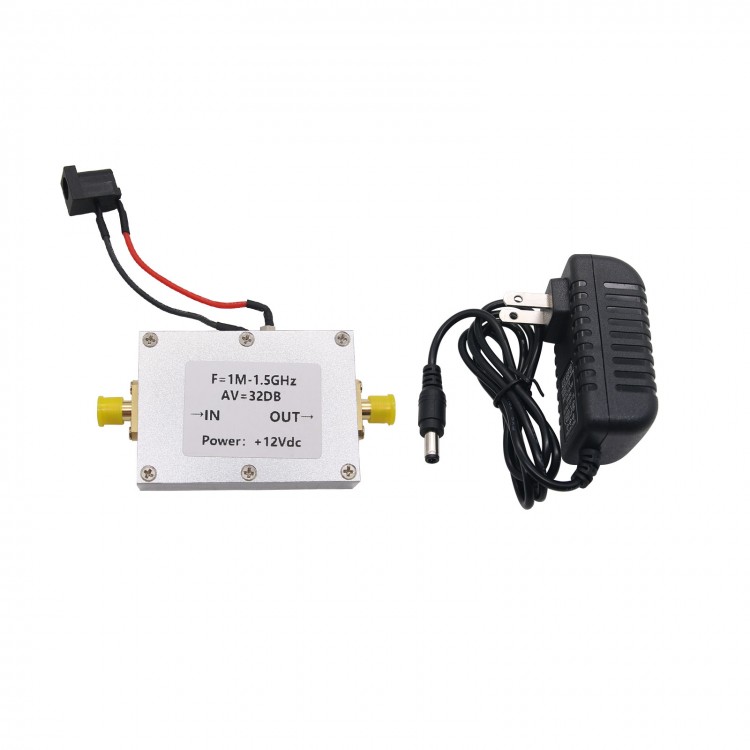

Package Included:
- 1 x Low Noise Amplifier
- 1 x 12V Switching Power Supply

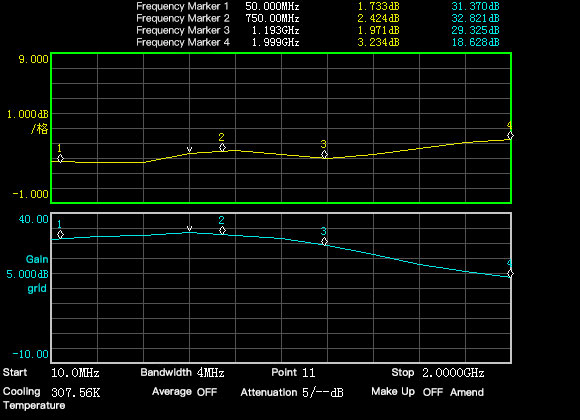

Measured Index:
Factory reference S21 (blue curve) and noise figure (yellow curve) parameters
