2.0MP HD Industrial Lab Microscope Camera VGA USB AV Zoom C-Mount Lens + 144 LED

2.0MP HD Industrial Lab Microscope Camera VGA USB AV Zoom C-Mount Lens + 144 LED

Note:
- Please use only one way video output each time.
- Don't connect the AV, USB or VGA cables in the same time, or the terminals will disturb each other.
- Put the black button of the camera on the right position if you use different video output.

Features:
- High Quality, High Resolution, Clear Images
- 900TV-Lines Definition
- Japan CMOS
- Certificate:CE,FC,RoHS
- Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
- Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative
- Supply VGA or CVBS output ports.
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.

Specification:
- Model: Camera with VGA AV USB2.0 three output
- Sensor: 2.0mp,1/3 inch
- Full Resolution: 1600X1200 (UXGA)
- 800 lines Definition
- Frame rate: 10-15(USB2.0)
- 720P/1024x768/1280x1024/1366x768 60HZ, 1600x1200 60Hz
- White Balance: Auto
- Light: Auto
- Color: Color/B&W
- Negative: Support
- Morror: Left/right,Up/Down
- Freeze: Support
- OSD: English/Chinese
- Picture compare: Collected picture dynamic video 1/2 screen compare
- Contrast: Support
- Saturation: Support
- Cross cursor: Support,different color
- Line: different color,2 horizontal line
- 2 vertical line,any positions
- Digital Noise reducer: Support
- VGA(RGB): 720P/1024x768/1280x1024/1366x768@60HZ 　
- USB2.0

C-MOUNT Lens:
- Zoom c-mount Lens
- Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
- Work distance:45mm-150mm
- Visual field :2.4mm-32mm
- Size: 115mm(L) x 40mm(DIA)
- Weight: 210g

144 LED bulbs:
- 144 bright white LED bulbs
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100%Adjustable,high brightness
- Variable intensity control
- Power input: 100-240V, 50-60HZ
- Suit for the dia of the lens: 30mm-63mm
- Color: white/black, if you want to have the faverate color, please leave us a message.
- Output intensity: 35000LUX
- Colour range: 6500K
- LED Lamp Chip(Cool White)

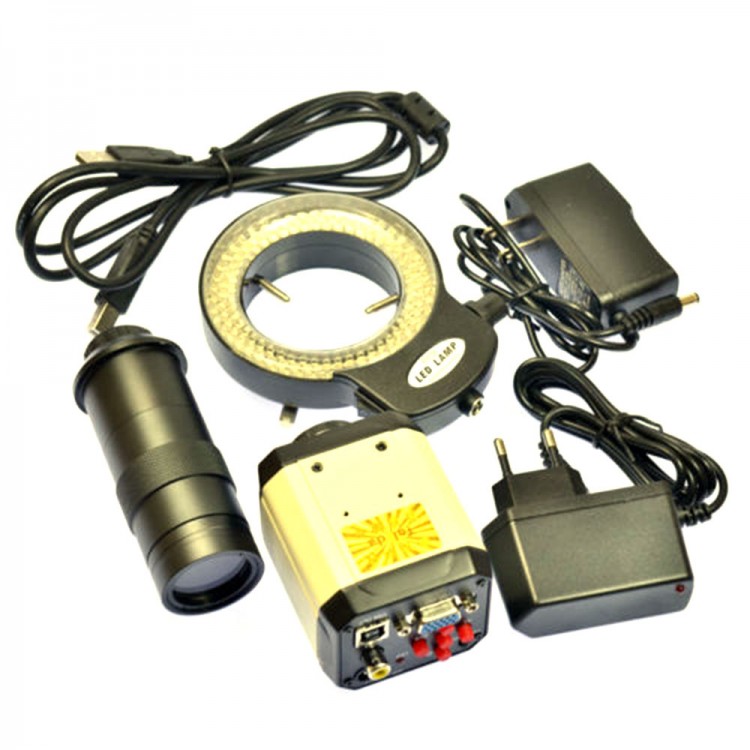

Package incluede:
- 1 x Microscope Camera Body
- 1 x 100V-240V power supply
- 1 x 144-LED Ring Light
- 1 x LED Power Adapter
- 1 x 100X Industry Zoom C-mount Lens
