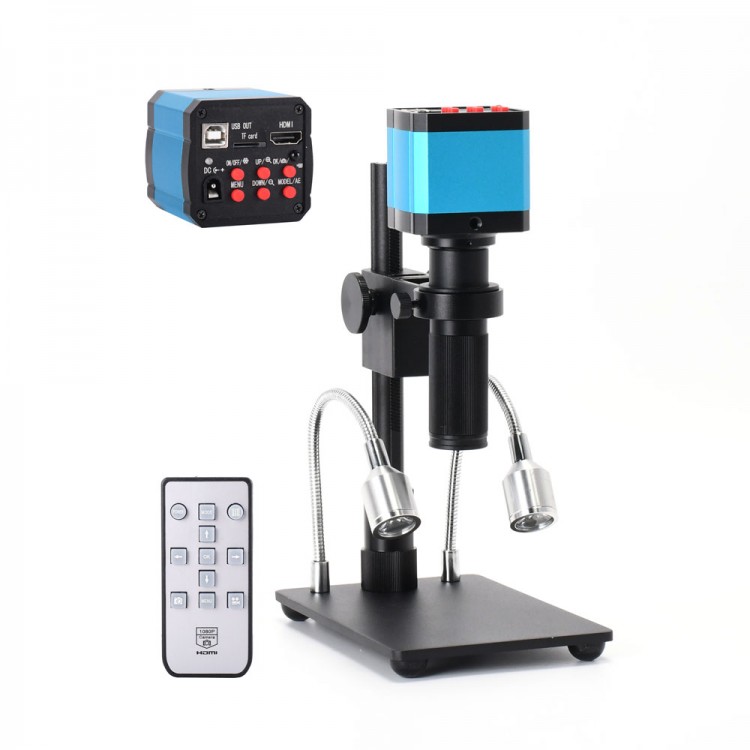

14MP Microscope Magnifier Industrial Microscope Camera HDMI 120X C-Mount Lens with Bracket

14MP Microscope Magnifier Industrial Microscope Camera HDMI 120X C-Mount Lens with Bracket

Features:
- For 14 megapixel Panasonic sensor 1/2.3 inch
- Effective pixel: 14 megapixel
- Pixel size: 1.43*1.43um
- Frame rate: 60fps
- Display: FULL HD
- Material: metal,glass
- Lens: CS for test, custom provide
- White balance: Auto/manual
- Digital magnification: 5 times digital zoom
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Freeze: Support
- OSD: Support
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line: Support multi-color, 5pcs of transverse lines/vertical lines, moveable
- SNR: Support
- TF card interface: Max 64G
- HDMI interface: Standard HDMI output (Type A)
- Lens: C
- USB interface: Standard usb2.0 interface (Type B)

Specifications:
- Model: Camera with HDMI USB2.0 two output
- Image format: jpg, png, tiff
- Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 60FPS(for TF card)
- Video format: MP4
- Video recorder: 1920 *1080 @ 60FPS (for TF Card)
- USB Video resolution: 1920 *1080 @ 30FPS
- White Balance: Auto
- Light: Auto
- Color: Color
- Negative: Support
- Mirror: Left/right, Up/Down
- Freeze: Support
- OSD: English/Chinese
- Line: different color, 5 horizontal line, 5 vertical line, any positions

C-Mount Lens Parameters:
- Working distance: 55mm-200mm
- Field of view: 2.4mm-36mm
- Magnification Power by 8X~120X
- Size: 100mm(L) * 25mm(DIA)

Package Included:
- 1 x Set of Industrial Microscope Camera

Note: This product does not include a monitor.
