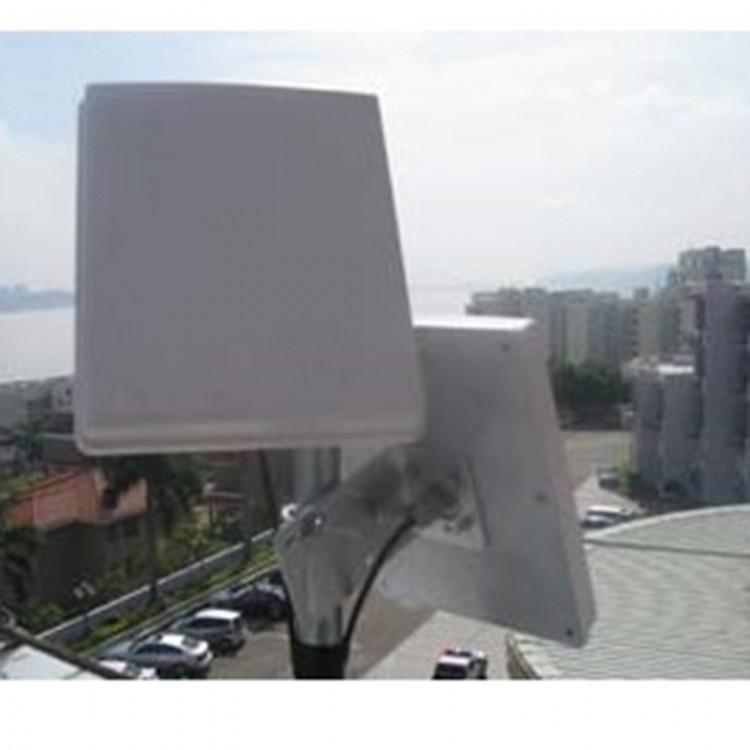

2.4G 14dbi High Gain WiFi Wlan PCB Extender directional Panel Antenna Panel Long Range SMA

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.85
  • Price in reward points: 299 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.25 $28.66 $27.76 $26.57 Contact US
Quantity:

2.4G 14dbi High Gain WiFi Wlan PCB Extender directional Panel Antenna Panel Long Range SMA

Specifications:
- Model: ANT2414A
- Size: 23.5 x 19 x 3cm
- Dampproof and rain-proof
- Can be used indoor or outdoor
- The material of antenna shell applies ABS
- Frequency range: 2300-2500MHz
- VSWR:<= 1.5
- Gain: 14dBi
- Polarization: Vertical
- Maximum input power: 100W
- Impedance: 50Ohm
- Input Connector: RP-SMA
- Horizontal Beam Width:30 degree
- Vertical Beam Width: 30 degree
- Dimensions of Antenna: 210×170×50mm
- Weight: 0.7kg

Package Included:
- 1 x 2.4G 14dbi High Gain WiFi Wlan PCB Extender directional Panel Antenna
