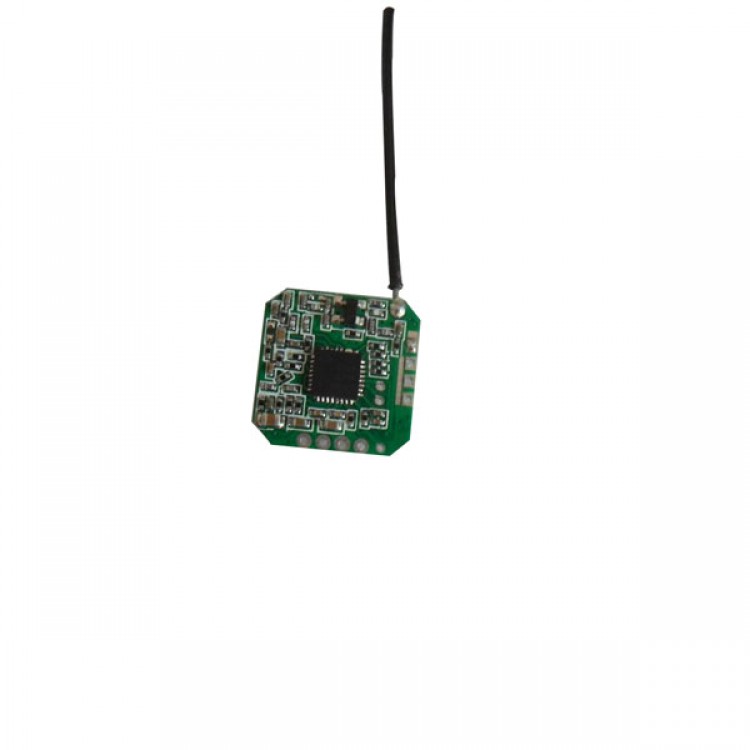

2.4G Small Volume Low Consumption Wireless Audio Transmission Module TX6729 for FPV Telemetery TX RX
Description:
- Brand: rfav
- Model: TX6729
- Working frequency: 2.4GHz
- 2 Group frequency 8 channel optional, can easily avoid interference frequency:
Ch1 2414/2490MHz Ch2 2432/2510MHz
Ch32450/2390MHz Ch4 2468/2370MHz
- Modulation system: FM Broadband frequency modulation
- Power: 100mW
- Current consumption: 80mA
- Dimension: 17.5mm*17.5mm*2.5mm
- Communication distance: 100-200
- Build in phase locked loop frequency, high stablization
- Direct output audio, video signal
- STM installation, convenient for users to use
Specification:
- DC Character
- Supply Voltage +5V±0.25V, Ripple: <20mVp-p
- Consumption Current 48(80/100mW)mA ,Type
- Conditions
- Operation Temperature -10~+55 oC
- Storage Temperature -30~+85 oC
- Operation Humidity 85%RH
RF
- Transmission Frequency Range 2370 ~ 2510MHz
- Output VSWR 2:1
- Video-Audio Demodulation Type FM
- RF Port Impedance 50Ω, Typ.
- Transmission Power 10(20)dBm, Typ.
- Spurious -45dBc, Max
- Video
- Input Signal Impedance 75Ω, Typ.
- Input Signal Level 1Vp-p, Typ.
- Input Signal Polarity Negative
- Carrier Frequency Accuracy ±100kHz
- Audio
- Input Impedance 600Ω, Typ.
- Input Signal Level 1Vp-p, Typ.
- Subcarrier Frequency 6.0MHz(A_R) 6.5MHz(A L)
- Subcarrier Frequency Accuracy ±50kHz
- Subcarrier Power Level -28dBc, Typ.
