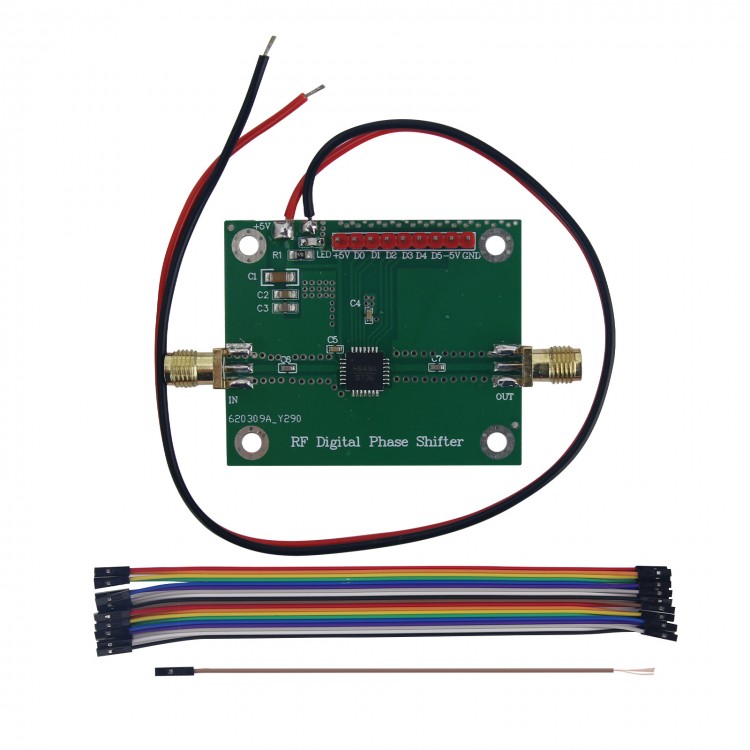

2-6G Digital Programmable Control RF Phase Shifter Module 6Bit High Precision Microwave Phase Shifter
Description:
- Phase shifter is a device that controls the phase change of signals, widely used in radar systems, microwave communication systems, and measurement systems. This module adopts digital programming technology, covering 2-6 GHz, and can be applied to typical frequency points such as 2.4G, 3.5G, 5.8G, etc., to achieve phase change of input signals. It adopts a 6-bit parallel control mode to meet high-precision requirements.
Specification:
- Working frequency: 2 - 6GHz
- Power supply: ±5V power supply
- Phase control: 5.625°-354.375°
- Phase precision: 5.625° high precision
- Control method: parallel control
- Control interface: 2.54 distance connectors
- Control bits: 6-bit
- Typical insertion loss: 8dB
- Maximum input signal power: 31dBm
- Interface: SMA-K
- Module size: 50 x 40mm (excluding the connector length)
Package Included:
- 1 x RF Phase Shifter Module
Insertion Loss Testing (Insertion loss may vary with phase shift):
Phase Testing:
- Set to 000000:
- Set to 100000:
- Set to 010000:
- Set to 001000:
- Set to 000100:
- Set to 000010:
- Set to 000001:
- Set to 111111:
