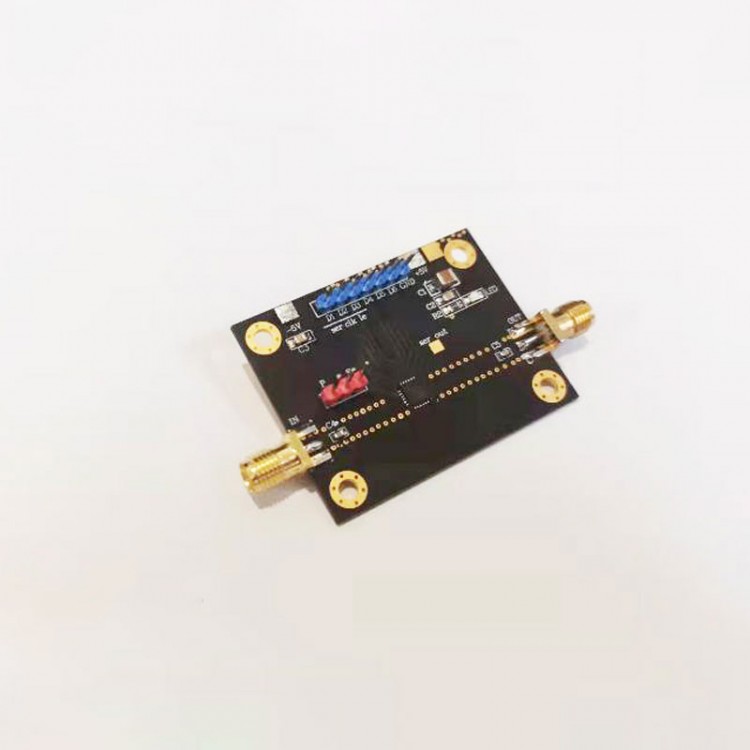

8-12GHz Digital Phase Shifter X-Band RF Phase Shifter 6-Bit Programmable Phase Shifter Phased Array

Availability: In stock, usually dispatched in 1 business day

  • Price:$235.95
  • Price in reward points: 2360 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $231.23 $226.51 $219.43 $210.00 Contact US
Quantity:

8-12GHz Digital Phase Shifter X-Band RF Phase Shifter 6-Bit Programmable Phase Shifter Phased Array

Description:

The phase shifter is a device that controls the phase change of signals. It is widely used in radar systems, microwave communication systems, and measurement systems. The module adopts high-frequency characteristic plates, circuit craftsmanship, and digital program control technology to realize the phase change of the input signal. Parallel and serial control modes can be selected to meet the requirements of high-precision phase shift. Applied to the front end of the array antenna, this module can be equipped with a CNC shell, which has excellent electromagnetic shielding performance. With mounting holes, it can be used with equipment.

Module Parameters:
1. Working frequency: 8-12GHz
2. Power supply: ±5V power supply
3. Phase control: 5.6°-354.4°
4. Phase step: 5.6° high precision
5. Control method: parallel/serial control
6. Insertion loss: 6.5dB (typical value)
7. Control interface: 2.54 pitch connector
8. Control bits: 6bit
9. Phase accuracy: 5.6° ±0.8°; 11.2° ±1.6°; 22.5° ±1°; 45° ±2°; 90° ±2°; 180° ±6°; 354.4° ±8°
10. Interface: SMA-K (customizable)
11. Module size: 48 x 36mm/1.9 x 1.4" (not including the sizes of connectors)
12. CNC shell can be customized

Package Included:
- 1 x Phase Shifter

Note:
- The module can be customized with a CNC shell, please consult customer service for details.

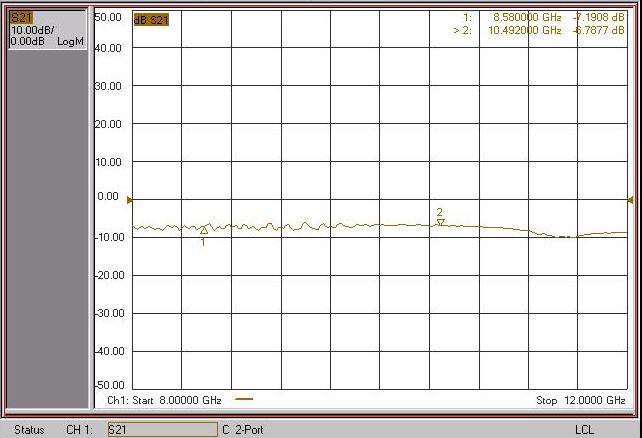

Insertion Loss Test:


Phase Shift Tests:

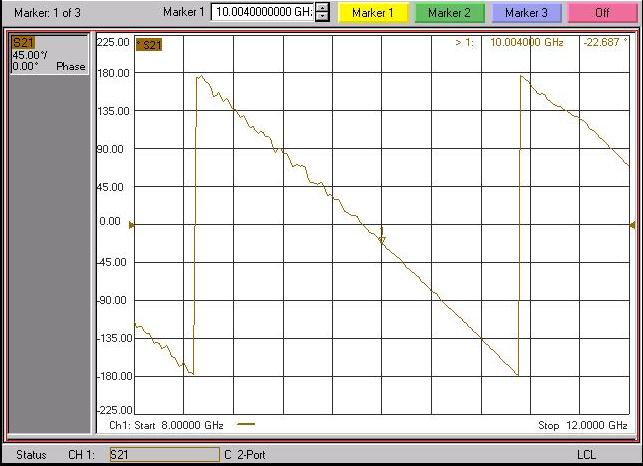

Initial Phase:

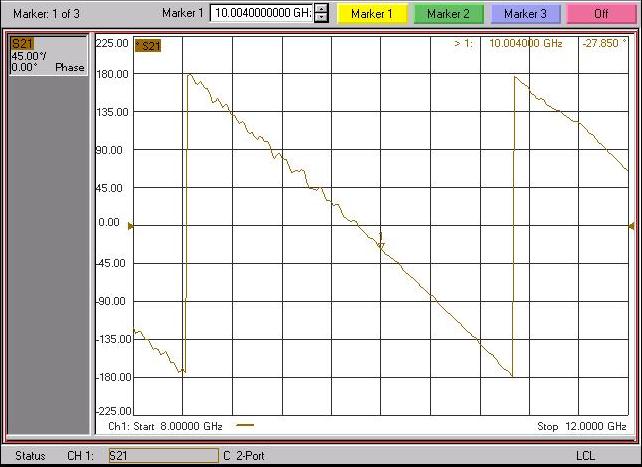

Set to 100000, Phase Shift 5.6°:

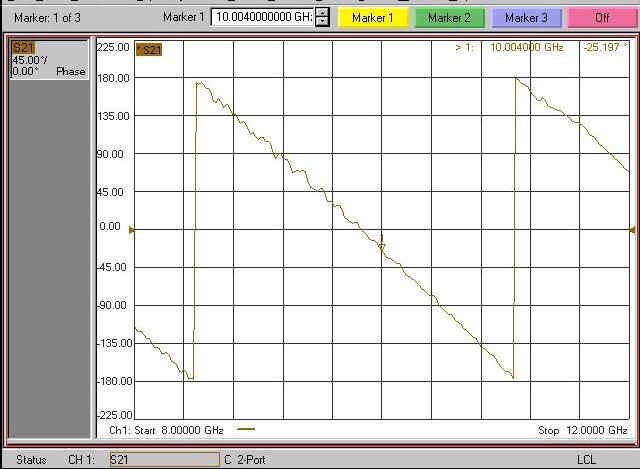

Set 001000, Phase Shift 22.5°:

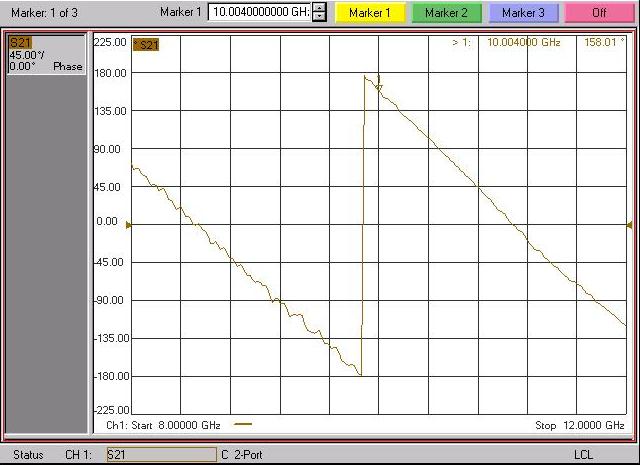

Set 000001, Phase Shift 180°:


Set 111111, Phase Shift 354.4°:
