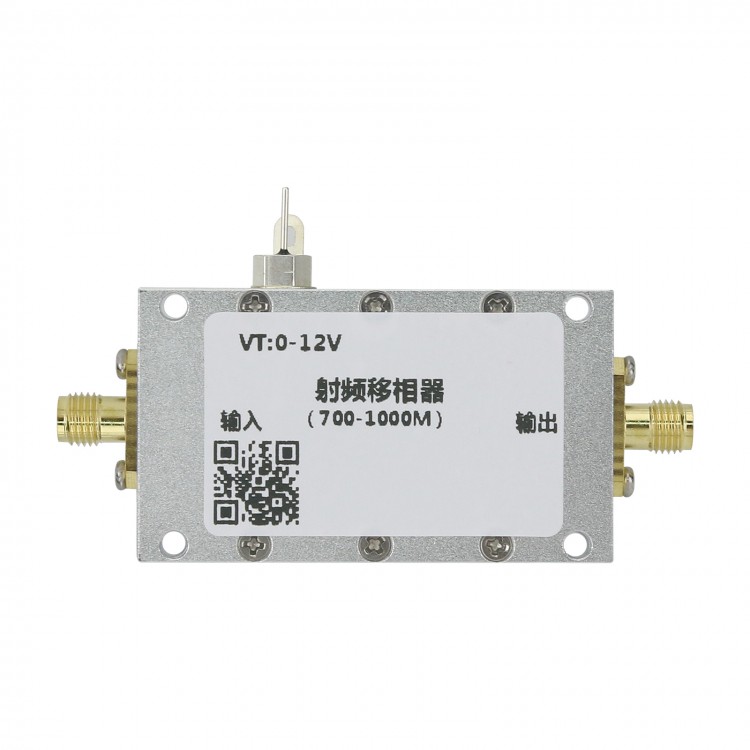

QM-PHA0710B 700-1000MHz RF Phase Shifter Analog Phase Shifter 180° 915M Phase Shift Phased Array
Description:
A phase shifter is a device that controls the phase change of a signal, and can be widely used in radar systems, microwave communication systems, and measurement systems. The operating range of this module is 700-1000MHz. It adopts analog ESC phase-shifting technology, and externally adjustable voltage is used to change the phase of the output signal. The phase shift range is 0-180 degrees. At the same time, the module has low insertion loss, broadband phase shift, CNC shell and good electromagnetic shielding performance. With mounting holes, it can be used with equipment.
Module Parameters:
- Model: QM-PHA0710B
- Module function: analog phase shifter
- Control interface: feed-through capacitor
- VT: 0-12V
- Module operating frequency: 700-1000MHz
- Phase shift range: 0-180°
- Input and output standing wave: in-band <1.4
- In-band insertion loss: <1.4dB (2.0dB MAX)
- The maximum input power of the module: +20dBm
- Input and output connector: SMA-K

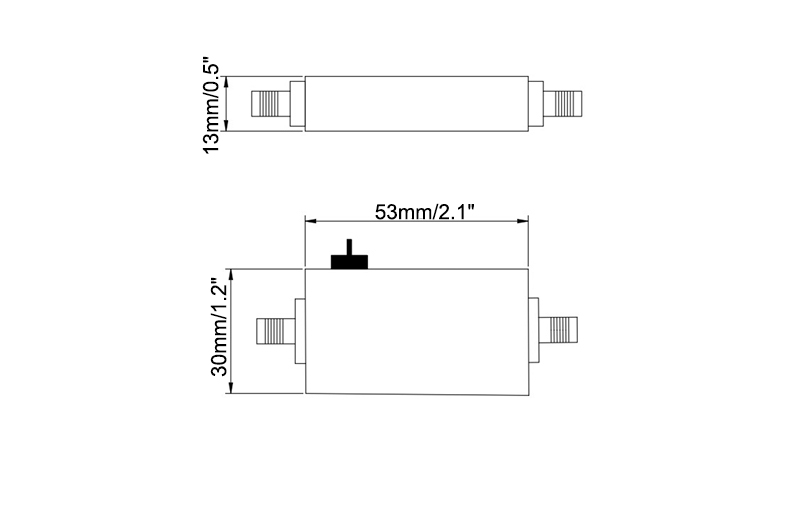

- Dimensions: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (without the size of connectors)
- With mounting holes
Package Included:
- 1 x Phase Shifter

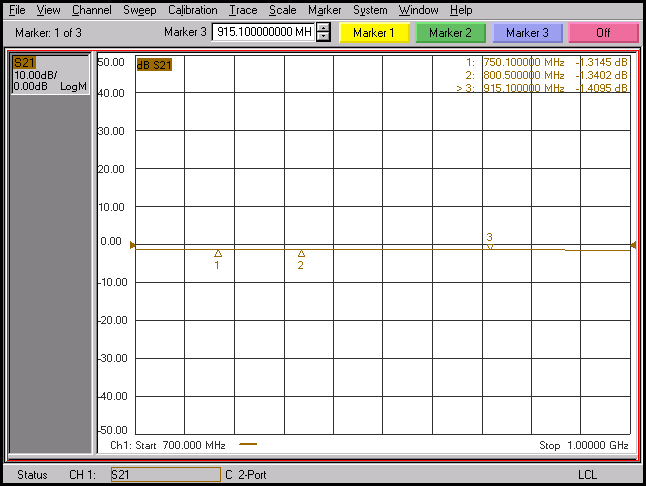

Insertion Loss Test:

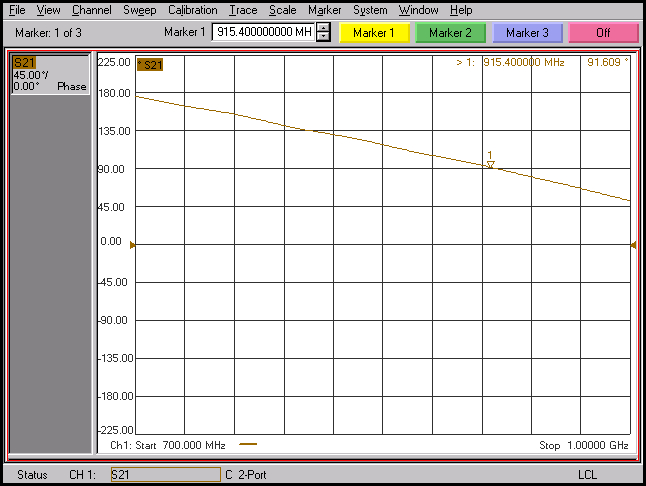

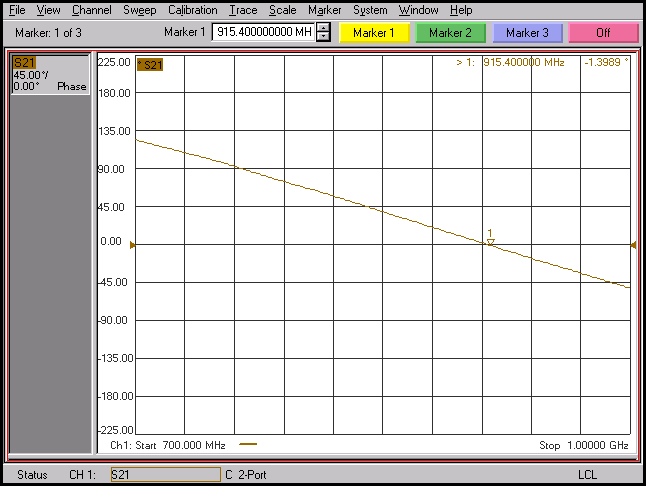

Phase Tests:
VT: 0V
VT: 2V
VT: 4V
VT: 6V
VT: 7V
VT: 9V
VT: 12V
