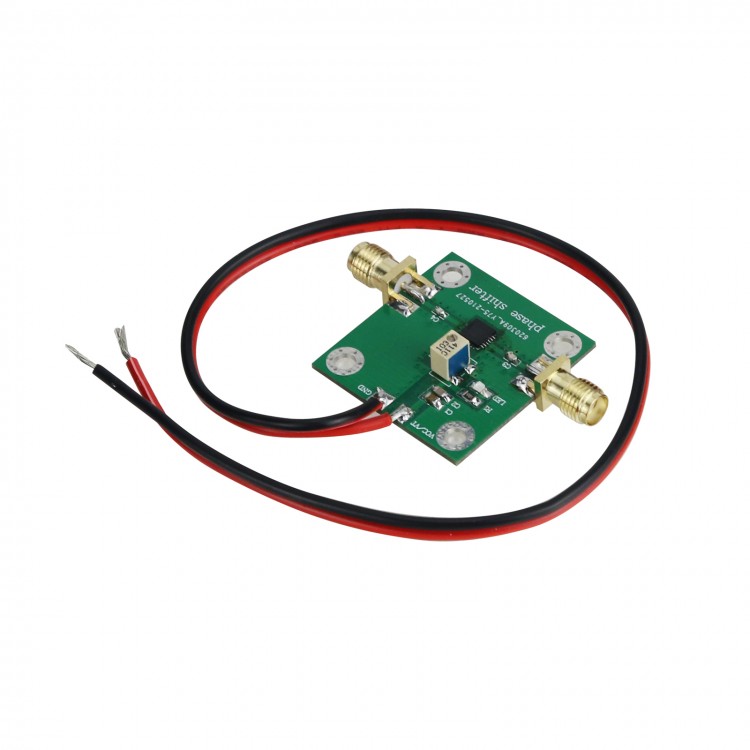

6-15GHz RF Analog Phase Shifter X-Band Phase Shift Module Adjustable Phase Shifter Without Shell
Description:
The phase shifter is a device that controls the phase change of the signal, and is widely used in radar systems, microwave communication systems, and measurement systems. This module adopts analog phase shifting technology to realize the phase change of the input signal, and the built-in phase adjustable module can change the phase of the output signal only by external power supply. With mounting holes.
Features:
- Full frequency band≥360°phase shift
- Working frequency: 6-15GHz broadband
- Built-in ESC: 0-5V
- SMA interface, customizable version with CNC shell
Module Parameters:
- Model: QM-PHA0615
- Module function: voltage-controlled broadband analog phase shifter
- Power supply: +5V
- Module working frequency: 6-15GHz
- Phase shift range: 6-10G: ≥600°; 10-15G: ≥360°
- Input and output standing wave: in-band <1.5
- Band interpolation loss: 8dB (typical value)
- Maximum input power of the module: +25dBm
- Module size: 30 x 25mm/1.2 x 1" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x RF Phase Shifter
Note:
- This module does not require an external control voltage. After power-on, the phase shift can be changed by device adjustment, and the operation is simple and convenient.
