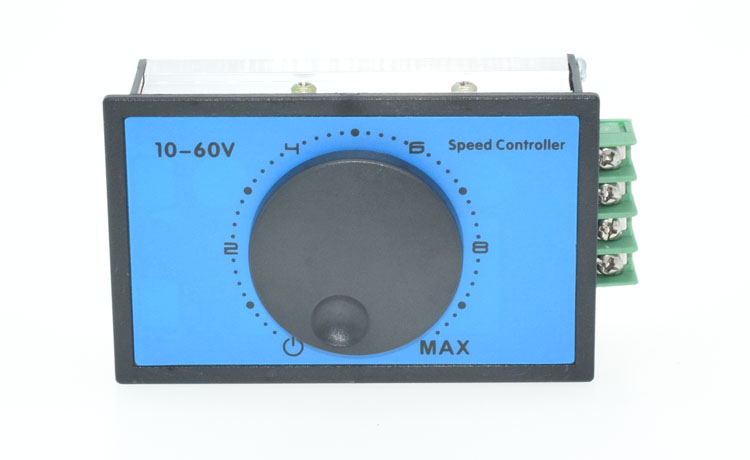

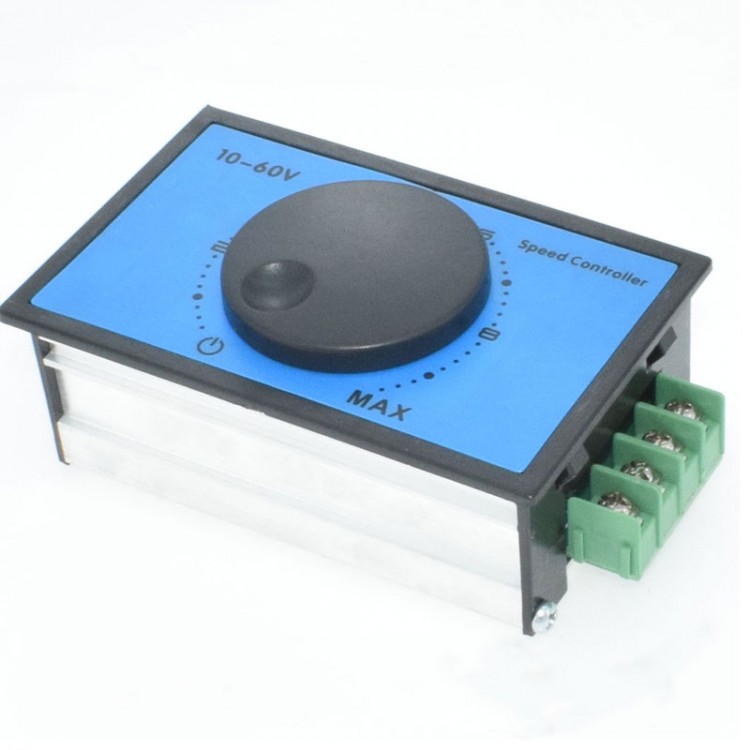

20A29S 10-60V Speed Controller DC Brushed Motor Controller Stepless Current Regulation 12V 36V 48V

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.32
  • Price in reward points: 113 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.09 $10.87 $10.53 $10.07 Contact US
Quantity:

20A29S 10-60V Speed Controller DC Brushed Motor Controller Stepless Current Regulation 12V 36V 48V

Features:

- Slow start, current limit protection
- The starting current of motor exceeds the rated current several times, and the slow start can reduce the starting current
- When your motor is locked, the current is infinite, and the current limit protects the locked rotor from burning

Parameters:
- Product name: 20A29S
- Input voltage: DC10-60V
- Output voltage: linear under load
- Input current: larger than the working current of motor
- Output current: determined by your load
- Continuous current: within 20A
- Power conversion: 1000W (power = voltage*current)
- Supported motor: DC brushed motor
- Speed regulation type: current regulation
- Speed control mode: ON/OFF linear potentiometer 270 degrees
- Speed adjustment range: 0-100%
- Working frequency: 15KHZ

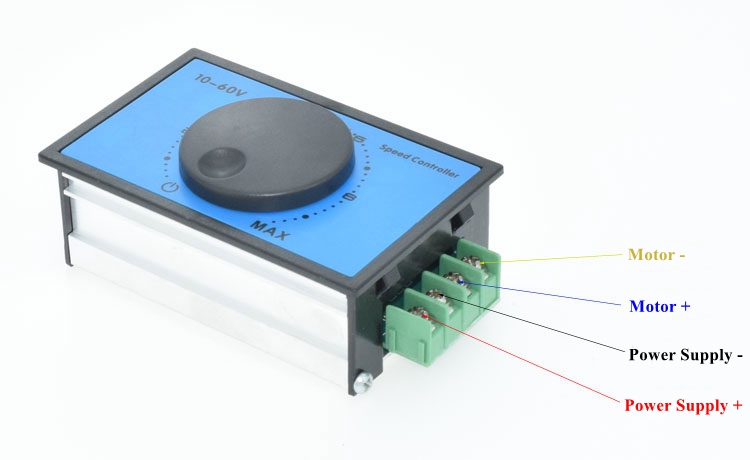

- Wiring type: Barrier terminal block

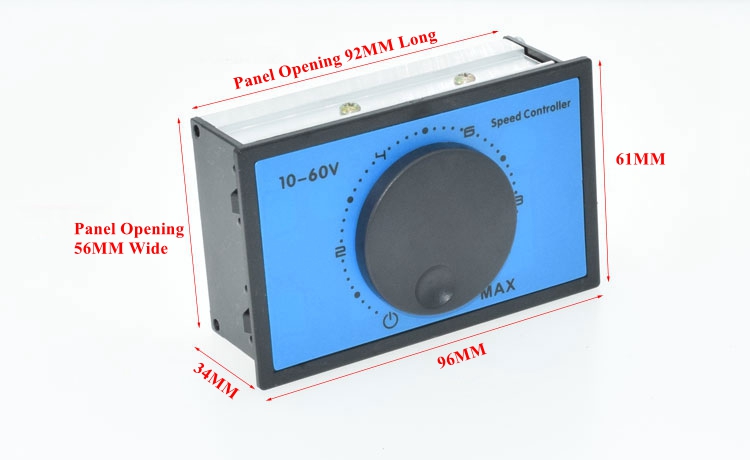

- Size: 96mm*61mm*34mm
- Product net weight: 106g

Attention:
- The input must be divided into positive and negative poles. Cannot input household electricity 220V.
- The input voltage must be equal to the rated voltage of your motor. If the motor is 12V, the input is 12V DC. When the motor is 36V, the input is 36V DC.

Package Included:
- 1 x Speed Controller
