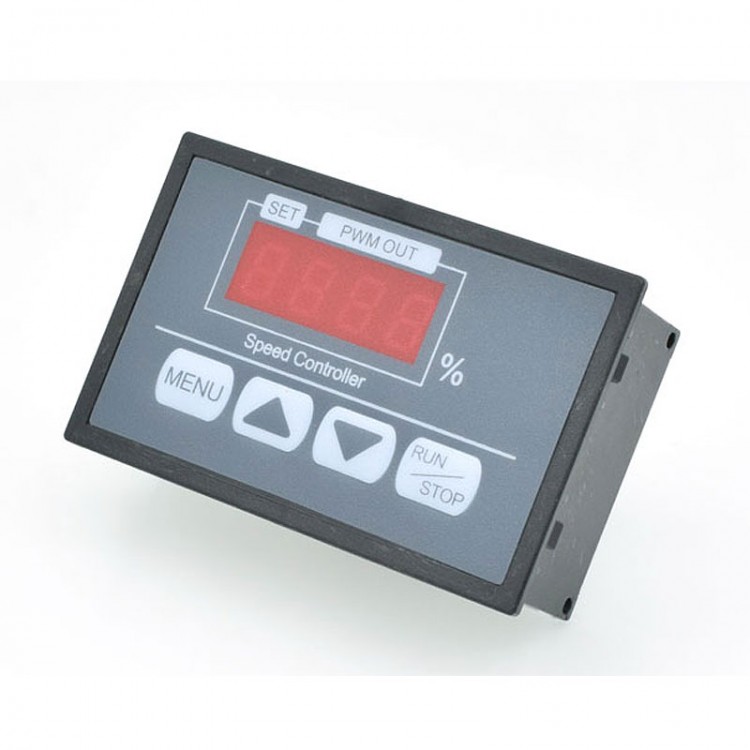

Q8-42S Speed Controller Panel CNC Jog Controller DC Motor Drive Slow Start & Stop 6V 12V 24V 36V 48V

Q8-42S Speed Controller Panel CNC Jog Controller DC Motor Drive Slow Start & Stop 6V 12V 24V 36V 48V

Specifications:
- Model: Q8-42S
- Input voltage: DC6-60V
- Output voltage: linear under load
- Output current: 0-30A
- Continuous current: within 20A
- Speed regulation type: current regulation
- Speed control mode: Jog + -
- Speed adjustment range: 0-100%
- Control frequency: 21KHZ

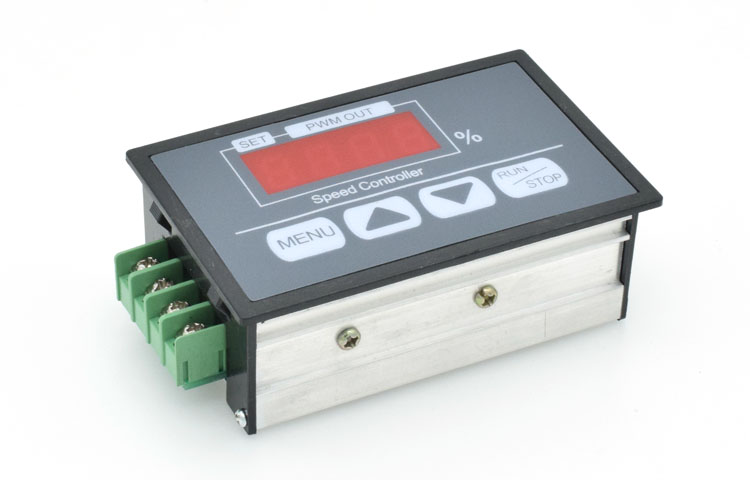

- Wiring type: Barrier terminal block
- Support motor: brushed motor

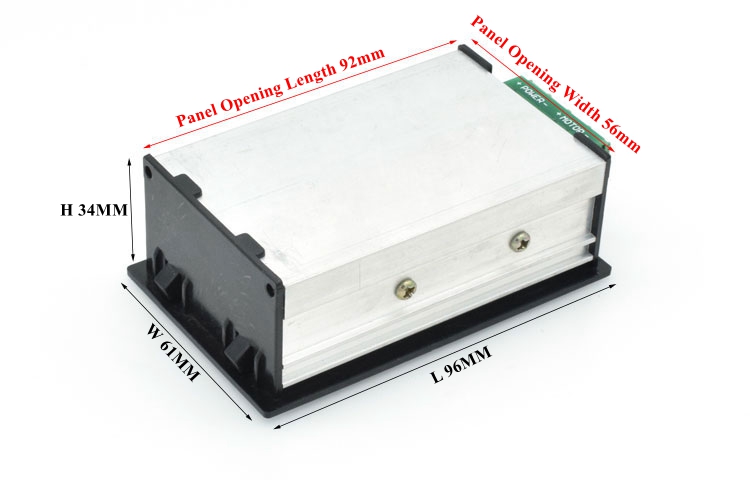

- Module size: 96mm*61mm*34mm (LxWxH)
- Product net weight: 100g
- Panel opening: 92mm*56mm (LxW)
- Speed digital display: percentage 0-100

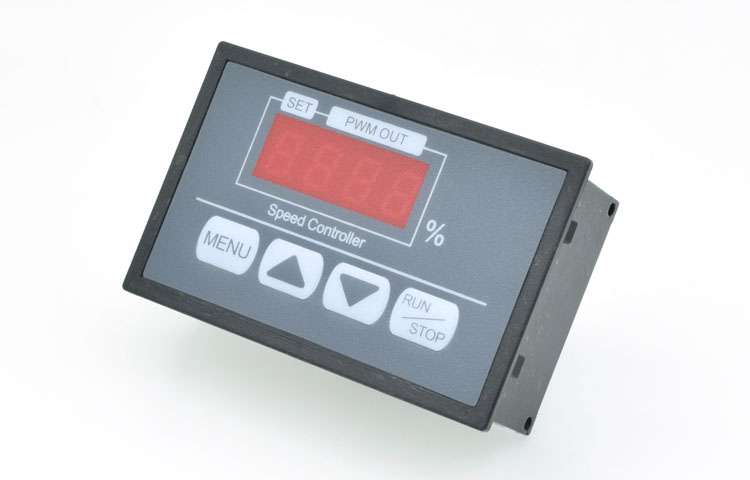

Function Introduction:
1. Slow Start Time Setting
Function 1: 000-100. The time from slow start to 100% speed is adjustable between 0-10 seconds, and the default is 1 second.

2. Slow Stop Time Setting
Function 2: 000-100. The slow stop time is adjustable between 0-10 seconds, and the default is 1 second.

3. Speed Lower Limit Setting
Function 3: 000-080. The minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0.

4. Speed Upper Limit Setting
Function 4: 000-100. The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%.

5. Acceleration and Deceleration Value Setting
Function 5: 001 002 005 010 015 020 025. Each time you press the plus and minus key, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Attention:

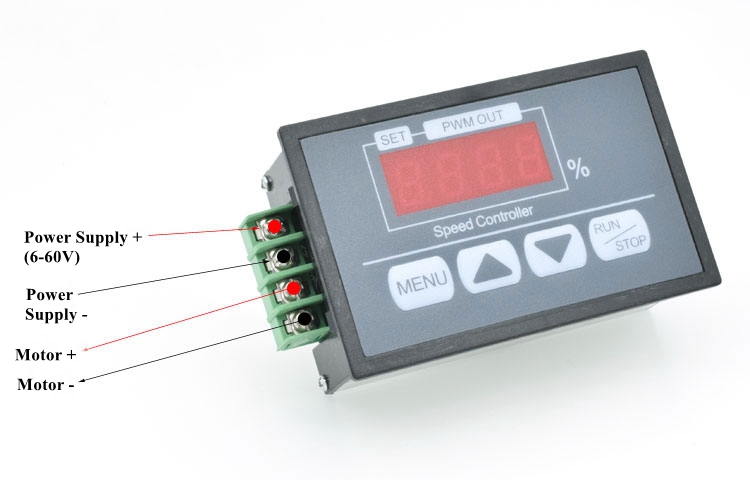

- Please pay attention to the - and + ends of input voltage. Input 220V is not allowed.
- The input voltage should be equal to the rated voltage of motor within 6-60V.

Package Included:
- 1 x Speed Controller
