20KPPS Laser Scanning Galvo Scanner ILDA Closed Loop max 30kpps Laser Parts

20KPPS Laser Scanning Galvo Scanner ILDA Closed Loop max 30kpps Laser Parts

Product Description
- The Scanner was measured by an independent source and confirmed by the factory  with PANGOLIN QM2000 card.Running at the desired output speed. Using the standard ILDA test pattern. Laboratory power supply at +/-15VDC,room temperature. Windows
PC with Pangolin,12/30k ILDA test-frame full size. 7x11x0.6mm mirror was used during measuring period. The galvo is fixed in the standard mounts on an aluminium base plate, no forced cooling.

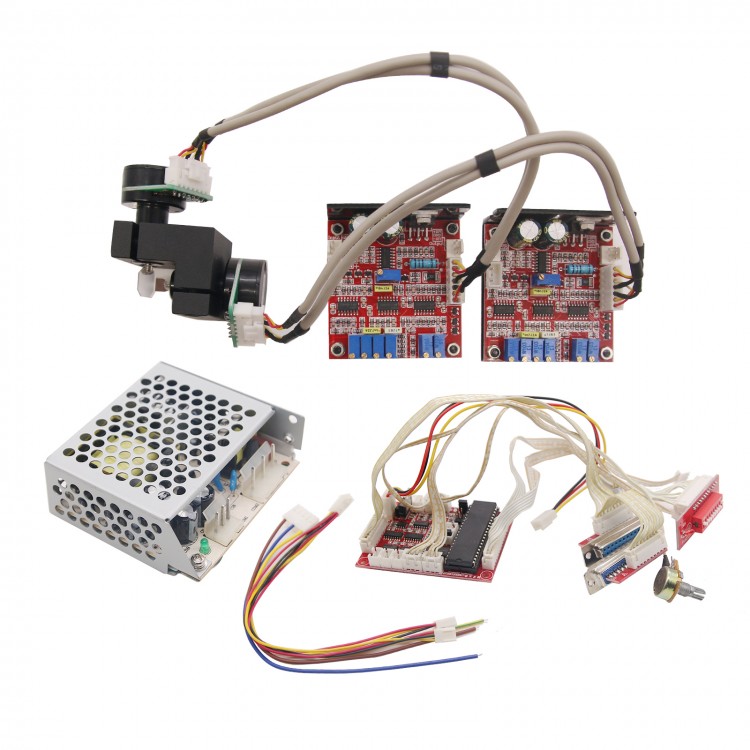

Standard package includes(same as the picture showing) :
2×Scanners
1x main board (show card)
2×Driver board
2×Mirrors
1×Scanner mount
1×power supply (PUS)
2×Cables driver to scanner
2×Cables driver to PUS
2×Cables driver to input signals
2x DB25 connector
1x microphone connector
1x dipswitch
1×User manual

Specification:
- Closed Loop Moving Magnet Scanner
- Input resistance: 200K ohms, differential
- Signal Input voltage:±5V
- Input voltage requirements: +15V/1.0A,-15V/0.6A
- Operating temperature range:0~50 degrees C
- Optical angle:±30° max
- Scanner speed:>15Kpps (30K ILDA test-pattern ,±20°optical)
- Mirror dimensions WxL: 7mm*11mm*0.6mm (wide wave-length)
- Board size:7.4cm (long) * 5.0cm (wide) * 2.5cm (high)




Deflection angle	Operating voltage	Speed@ Mirrors size
20º optical deflection	+/-15V	18Kpps @ 7*11*0.6
15º optical deflection	+/-15V	25Kpps @ 7*11*0.6
5º optical deflection	+/-15V	30Kpps @ 7*11*0.6





Power input
XH-3 Connector pins	Description	Remark	Cable color
3	+VCC	+15V/1.0A	RED,24AWG
2	GND		BLACK,24AWG
1	-VEE	-15V/0.6A	WHITE,24AWG
Signal Input
3	Control signal Y+	-5V~+10V analog signal
2	S-GND	Ground
1	Control signal -	-5V~+10V analog signal

 Operational Training and tutorials are not included with purchase but support is available
      This is a commercial product which may require ongoing and initial set-up, cleaning, maintenance and care.
SERVICE & SETUP:
PS Position scale (increases or decrease input sensitivity of the computer,  DO NOT change it)
LIN Zero offset (electrical offset of the driver, adjusted only in factory)
HFD High frequency damping (correct undershoot)
LFD Low frequency damping (correct overshoot)
SG Servo gain (power of the feedback signal for internal PID controller
IS Input scale (adjusted only in factory)
Potentiometer description
