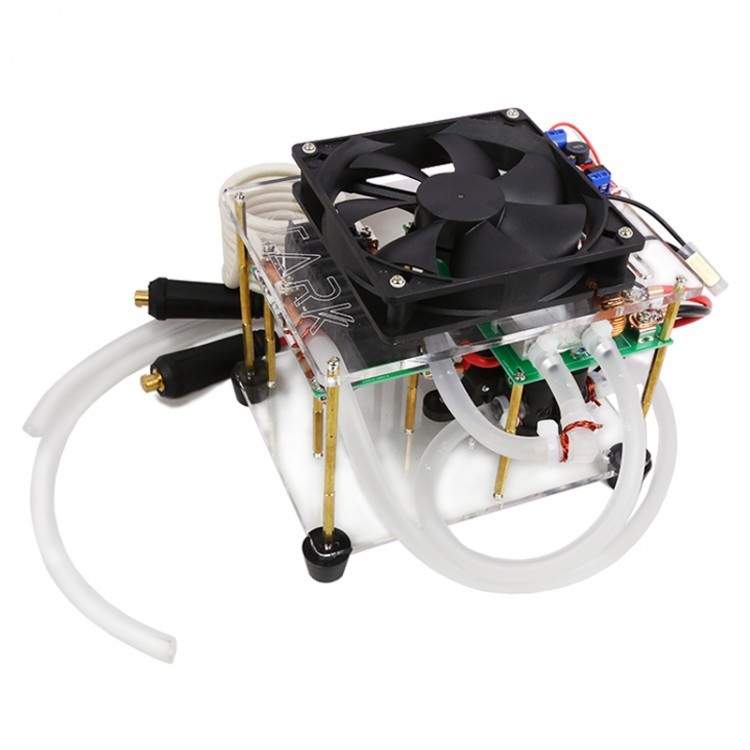

2100W ZVS Induction Heating Coil Induction Heater Coil Water Cooling Scientific Experiment Equipment

2100W ZVS Induction Heating Coil Induction Heater Coil Water Cooling Scientific Experiment Equipment

Description:
Induction heater is not only a ZVS circuit, but also needs to consider heat dissipation, frequency, duty cycle, temperature control and other issues.

The product makes full use of water cooling, efficient heat dissipation, and air-cooled auxiliary heat dissipation to achieve a good and stable use effect. At the same time, it is designed with temperature protection switch. When the temperature is too high, the circuit is automatically cut off to cool down. Multiple groups of led lights are convenient to indicate different working states. Water-cooled and air-cooled switches are separated from the main switch and do not affect each other. The assembly steps are simplified, and users only need to screw on two screws after receiving the product. Greatly shorten the assembly time and the possibility of errors. Separate the capacitor bank from the main circuit for easy modification and change the traditional circuit design.

Features:
- Air cooling + water cooling, dual cooling methods
- Imported mos tube
- High-power self-priming water pump
- Double circuit boards, convenient for modification
- Integrated integration, minus complicated assembly time
- High power water pump, large water flow, unobstructed waterway
- 2100W high power, fast heating
- Small size, temperature protection, not too hot

Product Information:
- Item name: Induction heater water cooling version
- Total Measurement: 155*70*70mm
- Product weight: 3000g
- Voltage: power input 220V; circuit board input 54v-12v
- Power: 2100W

Read Before Purchasing:
- Please not change it privately.
- In the event of an abnormality, (for example, the fan rotates at a high speed, water leakage, peculiar smell), please cut off power supply immediately.
- Please make sure that the waterway is normal before powering on. The red silicone wire is positive and the black wire is negative. Connect to the circuit board and screw it.

Use Method:
-  The red silicone wire is the positive pole and the black is the negative pole. Connect circuit board, tighten screws and connect water pipe. Observe the normal state of the waterway to open it for use. (For details, please read the instructions for use)

Package Included:
- 1 x Set of Induction Heating Coil

Note:
- Second hand power supply is provided. Please make sure that you don't mind before purchasing. Thank you!
