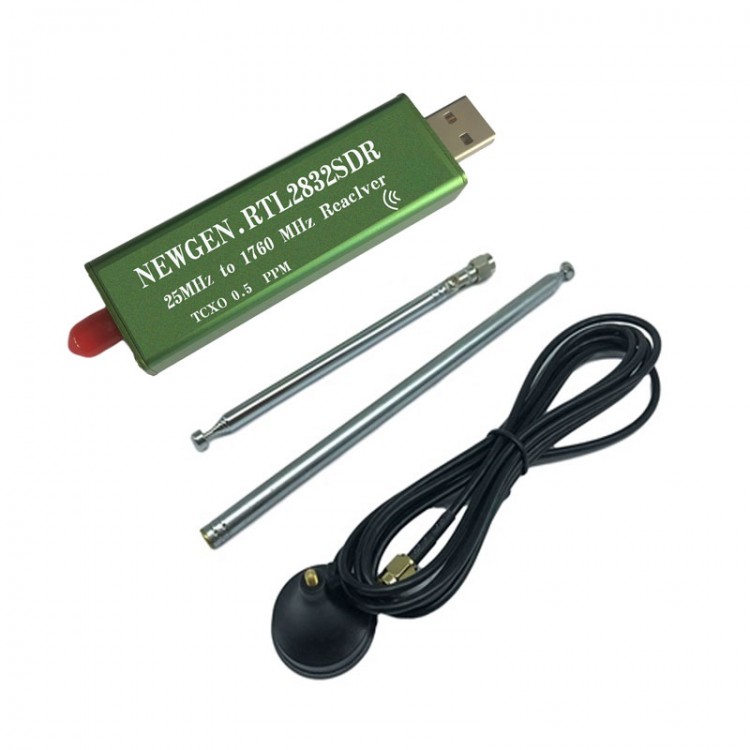

24MHz - 1.7GHz Software Defined Radio RTL2832U + R828D Full Band RTL-SDR SDR Receiver TCXO 0.5PPM with Antenna
Description:
- The signal received by the antenna is converted into data through this receiver and sent to devices such as computers and for Android phones through a USB interface. Then, the signal is understood and called up by software on the devices such as computers and for Android phones, and the spectrum is displayed. The reception bandwidth can be set arbitrarily, and it has the functions such as signal recording, saving, and playback can be performed. Through SDR software, receiving electromagnetic waves within the range of 100KHz-1.7GHz supports AM, FM (NFM, WFM), CW, DSB, LSB, and USB demodulation. It can be used for listening to shortwave single sideband communication, FM broadcasting, intercom call AIS signal reception, etc.
- Through software, analog and digital sub tones can be cracked.
- Support automatic search scanning setting.
- It can crack the ID of commonly used digital walkie talkies and demodulate voice signals through software.
Technical features:
- This receiver is equipped with a 1 ppm temperature compensation crystal TCXO. Make the frequency more stable and accurate. The almost zero temperature drift (2 ppm initial deviation, 1 ppm temperature drift) increases internal chip heat dissipation, making work more stable.
- It adopts the latest RTL2832U+R828D solution,(R828D tuner has slightly better sensitivity than R820T, lower background noise, and higher signal-to-noise ratio. It can work more stably at frequencies around 1.5 GHz.) utilizes the Q channel on RTL2832U to increase direct acquisition reception for frequencies ranging from 100KHz to 24 MHz and implemented segment reception between 100KHz-1.7GHz.
- Supports XP Win7, Win8, Win10, MAC, Android, and other systems.
Package Included:
- 1 x SDR Receiver
- 2 x Antenna
- 1 x Cable
Note:
- This product cannot receive signals below 24MHz.
- We can provide the software and user manual, please contact us after receiving the product.
