25MHz to 1760MHz RTL2832U + R828 RTL-SDR Receiver + 0.5PPM TCXO Ham radio

25MHz to 1760MHz RTL2832U + R828 RTL-SDR Receiver + 0.5PPM TCXO Ham radio

Description:

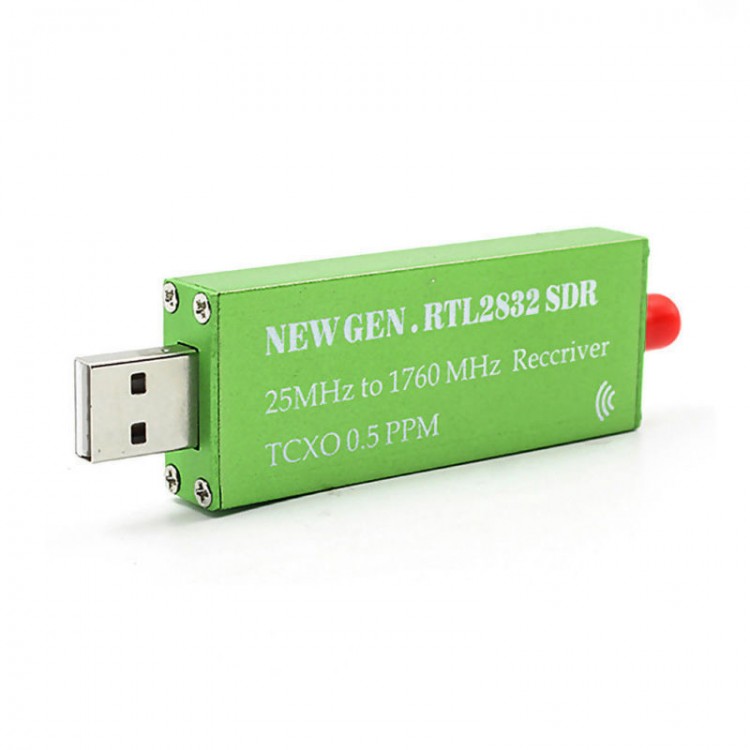

This is a new generation of software defined radio receiver RTL-SDR with RTL2832 ADC chip, 0.5 PPM TCXO, SMA F connector and passively cooled aluminum housing. Music from 25 MHz to 1760 MHz bandwidth. Ideal for use as a radio scanner with free computer-based software such as SDR, HDSDR, SDR-Radio, Linrad, GQRX or SDR Tap on Android. Applies to Windows, MacOS, Linux, Android and even embedded Linux computers such as the Raspberry Pi. Ideal for a variety of applications including universal wireless scanning, air traffic control, radio security, radar for ADS-B aircraft, AIS ship radar, ACARS, trunked radio, P25 / MOTOTRBO digital voice, POCSAG, weather balloons, APRS, NOAA weather satellite APT, Meteor M2 satellite, radio astronomy, meteor scatter monitoring, DAB, or as a low-cost platform for traditional ham radios.

This model incorporates a new solution ADC RTL. It uses an improvement of this tuner with a 0.5 PPM TCXO (no drift, with initial offset accuracy and 1 PPM PPM 0.5 temperature deviation), increased tolerance of the part and an SMA connector F. Requires USB 2.0 port , And works with most USB 3.0 ports (note that we can not guarantee that this feature will work on all USB 3.0 ports, so make sure your PC has a USB 2.0 port, just in case). Installation in Windows is easy. Please visit Google's free RTL-SDR Quick Start Guide for installation instructions.

Features:

- Fully assembled and ready to use.

- Aluminum cabinet.

- Small size.

- 25 MHz to 1760 MHz, operating frequency.

- Copper from 25 MHz to 1760 MHz in VHF and UHF bands.

- AM, NFM, FM, DSB, USB, LSB and CW reception modes.

- ±. 5 PPM TCXO temperature compensation.

- The SMA antenna gold connector is also more durable with low insertion loss.

Specifications:

Material: Aluminum

Color: Green

Size: 92*10*24mm

Package Includes:

1x Software Defined Radio Receiver

Note:

Items will be repackaged to save your shipping charge & to be environmentally friendly. We guaranty the item will be protected well in buble bags, No retail box!
