2MA2282 CNC 2/4Phase Stepper Driver for Nema34 Nema42 Nema51 Stepper Motors 8.2A 150-220V
Descriptions:
- The 2MA2282 is a high performance microstepping driver based on pure-sinusoidal current control and Servo Motor Control Technology . By using advanced bipolar constant-current chopping technique, the 2MA2282 can output more torque than other drivers at high speed. Its pure-sinusoidal current control technology allows coil current to be well controlled with relatively small current ripple, therefore significantly reduce motor running noise, heat and vibration. The noise and stability in the stepper motor turning approach the level of the servo motor. In addition, the 2MA2282 has a built-in EMI filter which can make the driver operate with higher reliability.
- It is suitable for driving 2-phase and 4-phase hybrid stepping motors, so the Nema34, Nema42 and Nema51 stepper motors with a 0.7A-8.2A current will be suitable. It is particularly suitable for the applications desired with low noise, low vibration, high speed and high precision.
Features:
- High performance, cost-effective.
- Low motor noise, heating and vibration.
- Supply voltage from "150V AC to 220V AC" or "210V DC to 310V DC".
- Output current from 0.7A to 8.2A(5.86 ARMS).
- TTL compatible and opto-isolated inputs.
- Opto-isolated alarm signal, Easy to monitor.
- Pure-sinusoidal current control technology and Servo Motor Control Technology.
- Automatic idle-current reduction.
- Suitable for 2-phase and 4-phase motors.
- High-speed torque output increased by 40% and avoid losing step.Maximum speed up to 3500r/min

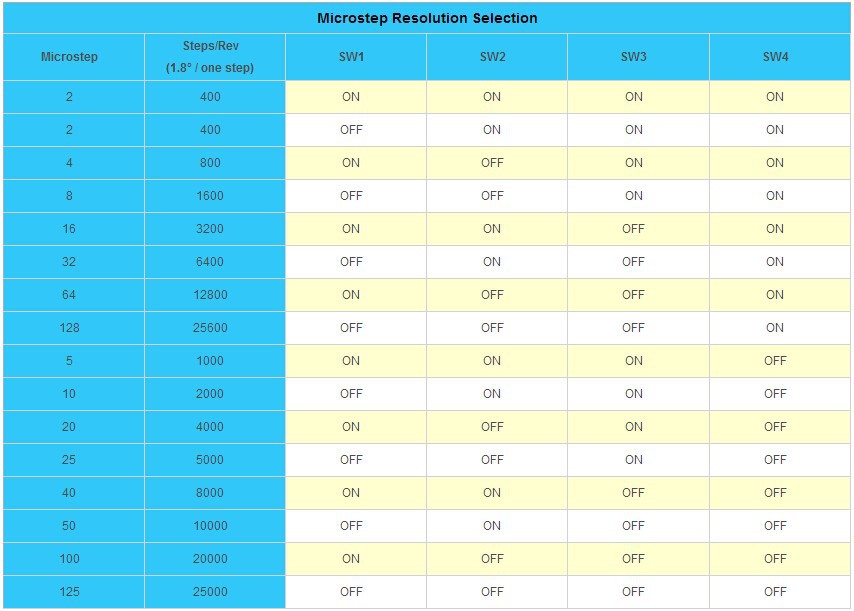

16 selectable resolutions in decimal and binary, up to 25,600steps/rev
- Support PUL/DIR and CW/CCW modes Switch.
- External Fan Design to avoid overheat.
- Short-voltage, over-voltage, over-current and short-circuit protection, protect the PC, motors, driver etc from being damaged.
- General location hole size, easy to install
Parameters:
- Input voltage: Single AC 150-220V
- Input current: <5A
- Power: 100W
- Operating Temperature: -10-45 degree ceisius
- Humidity: not dew, no water
- Weight: About 1050g
Package included:
- 1 x 2MA2282 Stepper Motors
