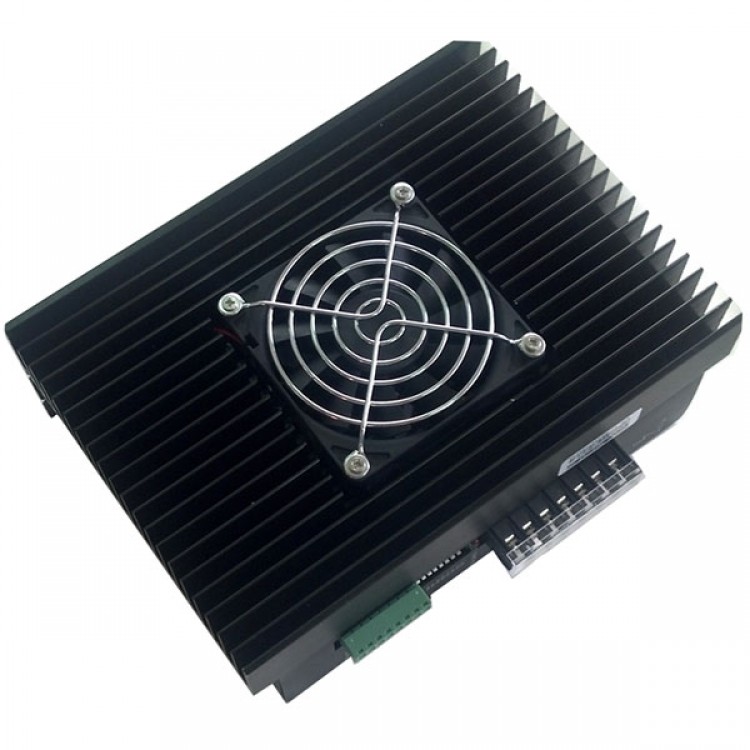

CNC Machine 3MA2283 CNC Stepper Driver For 3 Phase Nema34 42 51 Stepper Motor 150~220V AC 8.3A

Availability: In stock, usually dispatched in 1 business day

  • Price:$143.40
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

CNC Machine 3MA2283 CNC Stepper Driver For 3 Phase Nema34 42 51 Stepper Motor 150~220V AC 8.3A

Descriptions

- The 3MA2283 is a high performance and low noise microstepping driver based on pure-sinusoidal current control technology. It is suitable for driving 3-phas hybrid stepping motors. By using advanced bipolar constant-current chopping and servo motor control technique, this driver can output more torque than other drivers at high speed. The microstep capability allows stepping motors to run at higher smoothness, less vibration and lower noise.
- Outstanding Features: This driver can significantly reduce motor running noise and vibration with advanced anti-noise control method. The noise and stability in the stepper motor turning approach the level of the servo motor. The stepper motor and driver heat drop of 15-30% compared with most microstepper drivers on the market.
- It is particularly suitable for the applications desired with low noise, low vibration, high speed and high precision..

Features
- High performance, cost-effective.
- Low motor noise, heating and vibration.
- Supply voltage from "150V AC to 220V AC" or "210V DC to 310V DC".
- Output current 8.3A(5.86 ARMS)
- TTL compatible and opto-isolated inputs.
- Opto-isolated alarm signal, Easy to monitor.
- Pure-sinusoidal current control technology and Servo Motor Control Technology.
- Automatic idle-current reduction.
- Suitable for 3-phase Stepper Motors.
- High-speed torque output increased by 40% and avoid losing step.Maximum speed up to 3500r/min
- 16 selectable resolutions in decimal and binary, up to 25,600steps/re
- External Fan Design to avoid overheat.
- Short-voltage, over-voltage, over-current and short-circuit protection, protect the PC, motors, driver etc from being damaged.
- General location hole size, easy to install

Applications
- Suitable for a variety of medium and big size automation equipment and instruments. such as:CNC lathe, engraving machine, marking machine, cutting machine, laser typesetting, plotters, CNC machine tools, handling the devices.It is particularly suitable for the applications desired with low noise, low vibration, high speed and high precision.
- Suitable for a wide range of 3-phase stepping motors from NEMA size 34 to 51.


Specification



Electrical Specifications Of 3MA2283 Stepper Driver
Parameter Min Typical Max Unit
Output Current 2.0(1.41A RMS) - 8.3(5.86A RMS) A
Supply Voltage 210 250 310(include voltage ripple) VDC
150 180 220(include voltage ripple) VAC
Logical Signal Current 7 10 16 mA
Pulse Input Frequency 0 - 200 KHz
Isolation Resistence 500 - -
Operationg Environment & Other Specifications Of 3MA2283 Stepper Driver
Cooling Natural Cooling or Fan Forced cooling
Operating Environment Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0 ~ 50 (centigrade)
Humidity 40%RH ~ 90%RH
Operating Temperature 70 (centigrade) Max
Storage Temperature -20 ~ 65 (centigrade)
Total Weight Approx. 1600g
Dimentions 205mm x 160mm x 85mm



What is included:
- 1x 3MA2283 Microstepping Driver
- 1 x CD Driver(User Manual and MACH3 software DEMO version)
