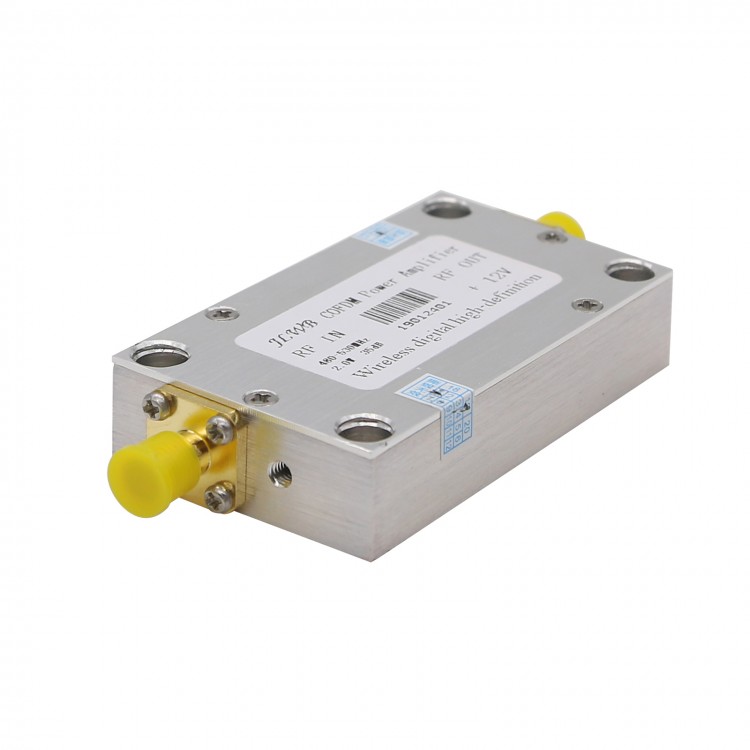

Specification:
- Frequency range: 303~550 MHz continuous 24MHz
- Gain: 33 + 0.5 dB
- Input power: 0 + 1 dBm
- Output power: 33 + 0.5 dBm COFDM
- The spectrum distance: less than or equal to -30 dBc
- Power supply voltage: DC +12 V
- Working current: 700 + 50 mA
- Temperature range: - 40 ~ + 65 C
- Module weight: 60g
- Module size: 62 * 36 * 14 mm without connectors
- Radio frequency joint: SMA-K
- Impedance: 50 ohm
Note: 300-550MHz series is available. Within the range, you can choose continuous 24MHz. bandwidth. The maximum optional continuous bandwidth is 50MHz.
