3-Axis TB6560 Stepper Motor Driver Mach3 CNC Controller 3-Axis Engraver Controller Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.32
  • Price in reward points: 463 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.39 $44.47 $43.08 $41.22 Contact US
Quantity:

3-Axis TB6560 Stepper Motor Driver Mach3 CNC Controller 3-Axis Engraver Controller Board

Features:

- Toshiba TB6560AHQ chip: High power, maximum 3.5A drive current chipset
- 1-1/16 microstep setting: Higher accuracy and smoother operation than standard 1, 1/2 step
- Adjustable drive current settings for each axis: 25%,50%,75%,100% of full current can be set for different stepper motors
- Overload, over-current and over-temperature safety: Full protection for your computer and peripheral equipment
- On board current switching: Power output can be set according to specific user requirement
- Full closed-type optical isolation to protect the user's computer and equipment
- Relay spindle interface: Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
- 4 channel inputs interface: Can be used for XYZ limit and emergency stop
- Professional design: Two stage signal processing with super anti-jamming
- Bipolar constant current chopper drive with non-resonant region: Controls motors smoothly through range without creep effect
- Four control inputs (divided into pairs of knives): Allows setting of limit and emergency stop
- Universal architecture: Supports most parallel software MACH3, KCAM4, EMC2 etc!

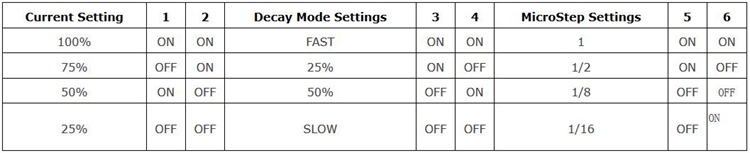

Dip Settings:



Package Included:
- 1 x 3-Axis TB6560 Stepper Motor Driver
